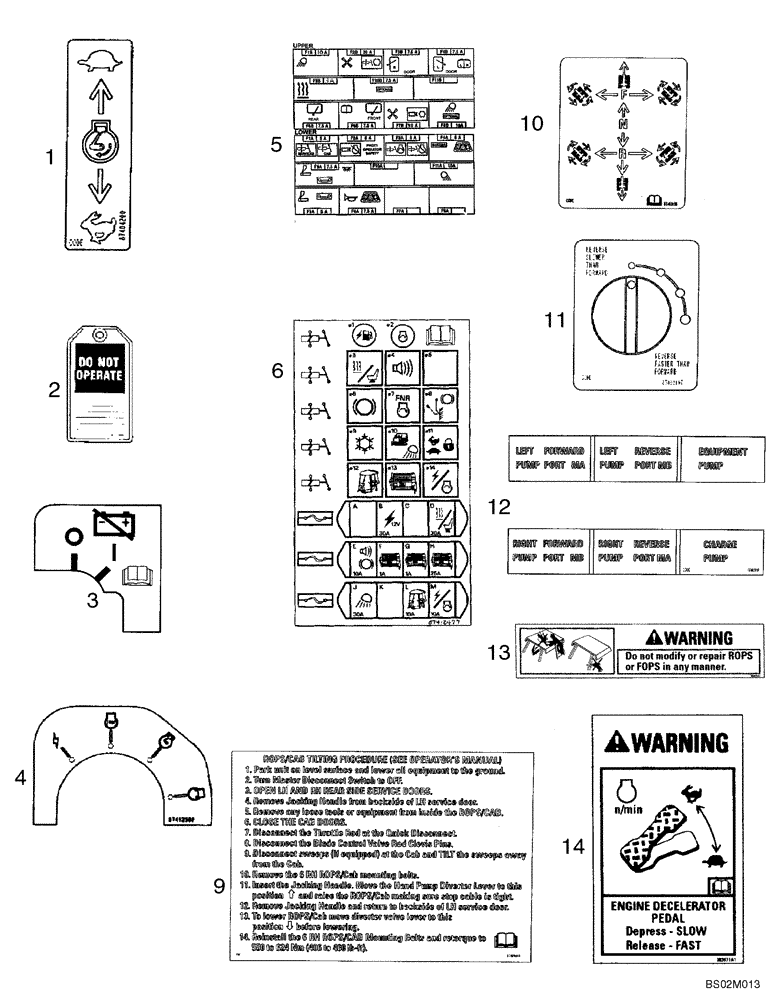

Запчасти Case 650K (09-44) - DECALS - ENGLISH (09) - CHASSIS/ATTACHMENTS

87415248

KIT

Decal, English; Incl. Figure 09-43, Ref 1 - 11, Figure 09-44, Ref 1, 3, 4, 6 - 14, Figure 09-45, Ref 1 - 13

1шт.

1

87422188

DECAL,16.5mm x 55mm H

Throttle; Replaces 87404200

1шт.

2

321-4614

TAG

Do Not Operate Tag

1шт.

3

379422A1

DECAL

Master Disconnect Switch

1шт.

4

87412595

DECAL

Ignition Switch

1шт.

5

87415509

DECAL

Fuse/Relays, In Cab/Canopy Assembly

1шт.

6

87412477

DECAL

Fuse/Relays

1шт.

9

87418216

DECAL

Canopy/Cab Tilting Procedure; Replaces 87400044

1шт.

10

87422184

DECAL,57mm x 69mm H

Forward/Neutral/Reverse; Replaces 87403196

1шт.

11

87422186

DECAL

Reverse Controller; Replaces 87403197

1шт.

12

87403199

DECAL

Diagnostics

1шт.

13

383972A1

WARNING DECAL,195mm x 37mm H

Do Not Modify or Repair ROPS or FOPS In Any Manner

1шт.

14

383971A1

DECAL

Warning, Engine Decelerator Pedal

1шт.

15

449842A1

REFLECTOR,160mm x 50.8mm H - Red

Reflector, Rectangular; Not Illustrated

2шт.
