(09-35) - CAB - HEATING SYSTEM (AT ENGINE)

Запчасти Case 650K (09-35) - CAB - HEATING SYSTEM (AT ENGINE) (09) - CHASSIS/ATTACHMENTS

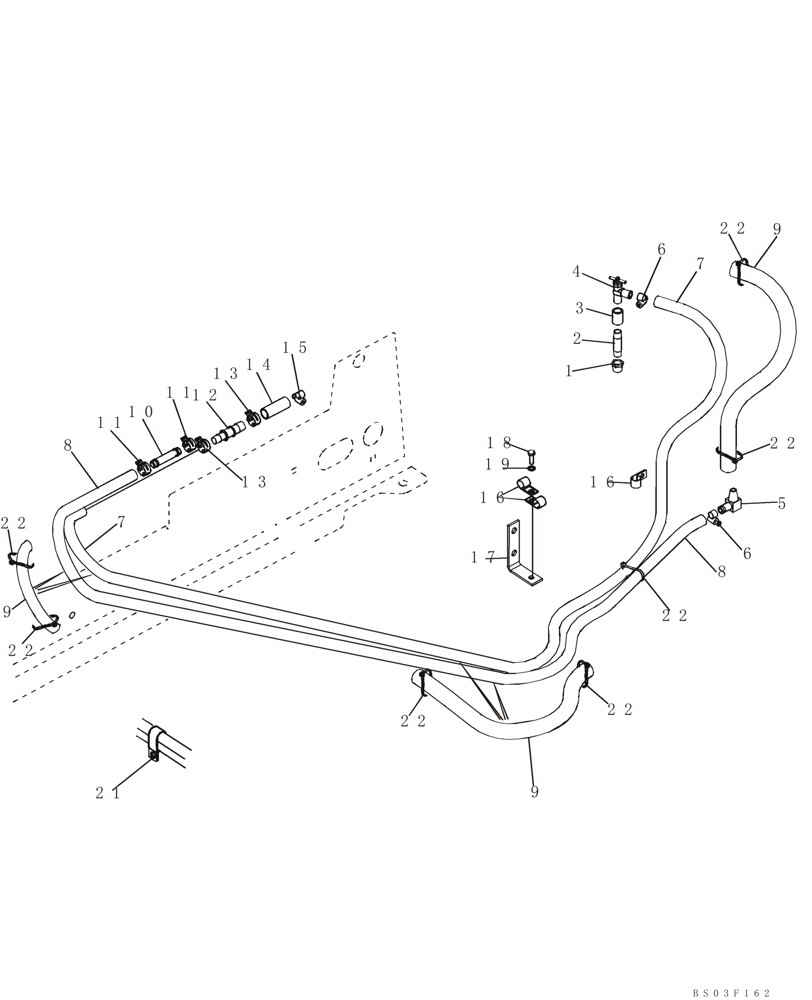

Схема запчастей Case 650K - (09-35) - CAB - HEATING SYSTEM (AT ENGINE) (09) - CHASSIS/ATTACHMENTS
10
16
8
11
22
22
6
9
11
7
14
16
18
15
22
19
3
bs03f162
17
4
5
9
22
22
9
2
12
6
8
13
13
7
21
1
22
22
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

221-89

REDUCER,Hex, 1/2" x 3/8" NPT

1шт.

2

221-1165

JUNCTION

3/8 PT x 2-1/2

1шт.

3

221-1337

COUPLING,Pipe, 3/8" NPT

3/8

1шт.

4

301803R1

SHUT-OFF VALVE

1шт.

5

R50454

FITTING

90 deg Elbow

1шт.

6

214-1410

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

4шт.

7

1327782C2

LARGE HOSE,15.50 mm ID x 3302.00 mm

HOSE,LARGE Cut from 97252CX; Inlet, Heater Supply from Engine

1шт.

8

1974653C1

HEATER HOSE,15.50 mm ID x 3404.00 mm

Outlet, Heater Return To Engine

1шт.

9

87401054

CONDUIT

5шт.

10

1301342C1

FITTING

1шт.

11

1954736C1

HOSE CLAMP,#24

2шт.

12

87409594

REDUCER FITTING

3/4 x 5/8

1шт.

13

1954736C1

HOSE CLAMP,#24

2шт.

14

87429721

HEATER HOSE,19.00 mm ID x 305.00 mm

1шт.

15

214-1410

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

1шт.

16

515-23222

CLAMP,7/8", Insul, 3/8" Bolt

3шт.

17

R51414

SUPPORT

Use Existing Mounting Hardware

1шт.

18

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.

20

832-10408

NUT,M8 x 1.25, Cl 8.8

Not Illustrated

1шт.

22

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP

18шт.

19

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.
