Запчасти Case 650K (09-20) - CANOPY, ROPS - ARMRESTS, TOOLBOX AND COVERS (09) - CHASSIS/ATTACHMENTS

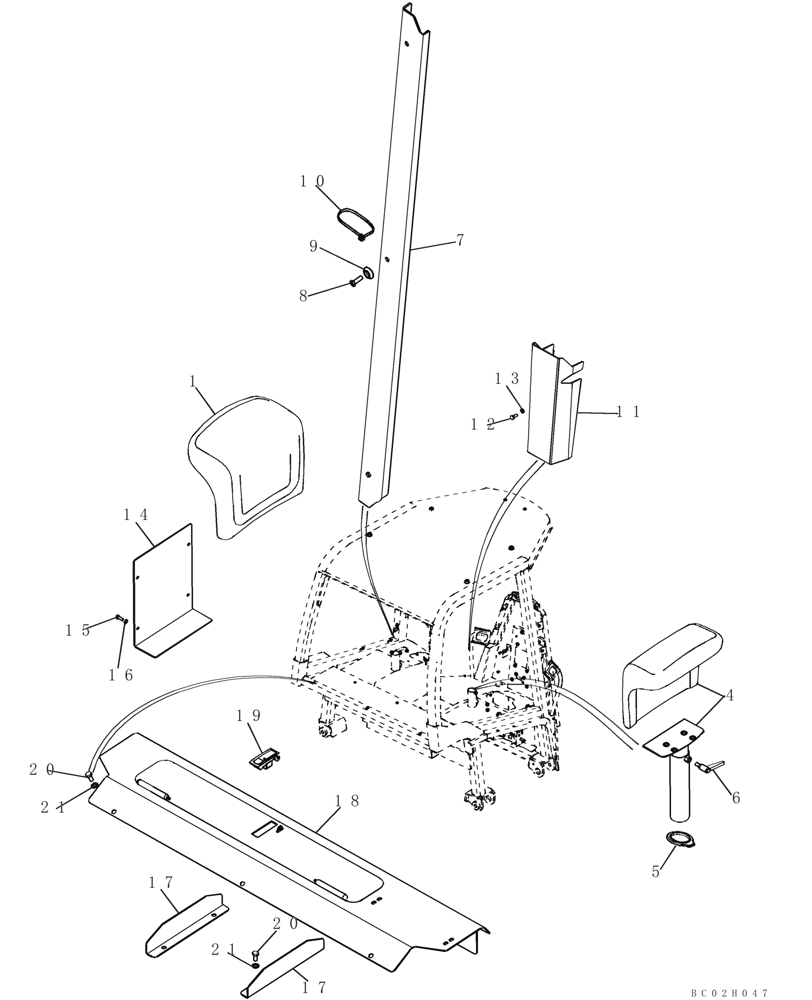

Схема запчастей Case 650K - (09-20) - CANOPY, ROPS - ARMRESTS, TOOLBOX AND COVERS (09) - CHASSIS/ATTACHMENTS
20
7
1
21
10
16
18
21
20
12
6
13
bc02h047
9
4
5
17
19
15
11
8
17
14

Артикул

Название

Примечание

Количество

1

86989674

ARMREST ASSY.

Includes (1) 87410160 Pad, (1) 86988140 Tube Support, (4) 895-15008 Washer, (4) 832-10408 Nut

2шт.

87410160

ARMREST

M8 x 16

1шт.

832-10408

NUT,M8 x 1.25, Cl 8.8

4шт.

4

86988140

SUPPORT TUBE

1шт.

5

76067464

SEAL

Armrest Seal

2шт.

6

87446967

HANDLE

Adjustable Handle; Armrest

2шт.

7

443798A1

PROTECTIVE COVER

Lamp Harness Cover, ROPS Post

1шт.

8

79105220

SCREW,Phillips Drive, Oval HD, M6 x 20mm

3шт.

9

79076208

WASHER

Nylon

3шт.

10

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP

3шт.

11

86989603

PROTECTIVE COVER

Harness

1шт.

12

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

2шт.

13

892-11006

LOCK WASHER,M6

2шт.

14

87400013

COVER

Microprocessor Control Box Cover

1шт.

15

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

4шт.

16

892-11006

LOCK WASHER,M6

4шт.

17

87402628

PLATE

Divider Plate

2шт.

18

444202A1

PLATE ASSY.

Toolbox Plate; Includes Lid

1шт.

19

356924A3

LATCH

Includes Hardware

1шт.

20

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

9шт.

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

4шт.

21

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

9шт.

Выбрано товаров: 22
