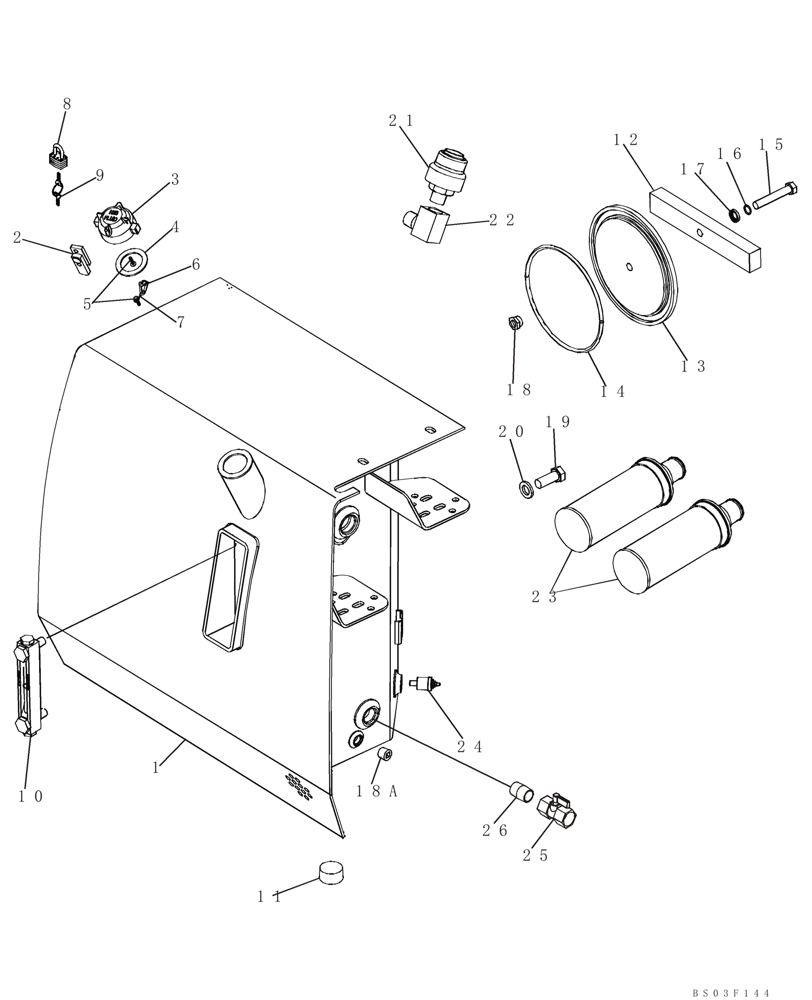

Запчасти Case 650K (08-01) - RESERVOIR, HYDRAULIC - COVERS (08) - HYDRAULICS

405757A3

TANK, HYDRAULIC OIL

Complete; Incl. Ref 1 - 18A

1шт.

1

405758A3

TANK, HYDRAULIC OIL

Unpainted; Incl. Ref 2

1шт.

2

R46704

BRACKET

Tab; Fill Tube; Weld-On

1шт.

3

L128669

CAP

Fill Tube

1шт.

4

R46984

GASKET

1шт.

5

301-14712

SCREW,Drive, #12 x 3/4"

2шт.

6

R48634

FASTENER

Hook

1шт.

7

R47786

CHAIN (CE)

241 mm (9-1/2 in)

1шт.

10

226456A1

LEVEL GAUGE

Sight; Component Parts Not Serviced Separately

1шт.

11

221-37

PLUG

1-1/4

1шт.

238-6114

O-RING,0.103" Thk x 0.612" ID, -114, Cl 6, 90 Duro

Used With Gauge

4шт.

12

L50741

BAR

Holddown

1шт.

13

L128352

COVER

Access

1шт.

14

238-5442

O-RING,0.275" Thk x 7.22" ID, -442, Cl 5, 75 Duro

1/4 x 7-1/4

1шт.

15

113-2462

BOLT,Hex, 1/2" - 13 x 3", Gr 5

1шт.

16

238-5112

O-RING,0.103" Thk x 0.487" ID, -112, Cl 5, 75 Duro

1шт.

17

L78045

WASHER

1шт.

18

131-510

LOCK NUT,1/2"-13

1шт.

18a

217-465

DRAIN PLUG,Hex Soc, 1/2" - 14, NPTF

1шт.

19

614-16040

BOLT,Hex, M16 x 2 x 40mm, Cl 8.8, Full Thd

2шт.

20

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

2шт.

21

R42714

BREATHER

Use With Loctite No. 592

1шт.

B17425

LOCTITE

No. 592, 50 ml

1шт.

22

221-1415

ELBOW,90 Degree, 3/4"-14, NPT

Elbow, 90 deg, 3/4 PT

1шт.

23

426784A1

FILTER STRAINER

Strainer, Suction; Includes 84153256 O-Ring

2шт.

84153256

O-RING,3mm Thk x 83mm ID, 70 Duro

O-Ring; Replaces 510137 O-Ring .139 x 3.234 236 5, Used On Some Models

1шт.

24

A166057

TEMPERATURE SENDER,1/2" - 14 NPTF

Transmission Oil Temperature; Use With Loctite No. 592

1шт.

25

86984713

SHUT-OFF VALVE

1шт.

26

221-1185

FITTING

.5 x 1.125

1шт.

27

814-16065

BOLT,Hex, M16 x 2 x 65mm, Cl 8.8

Reservoir to Frame ( Not Shown)

1шт.
