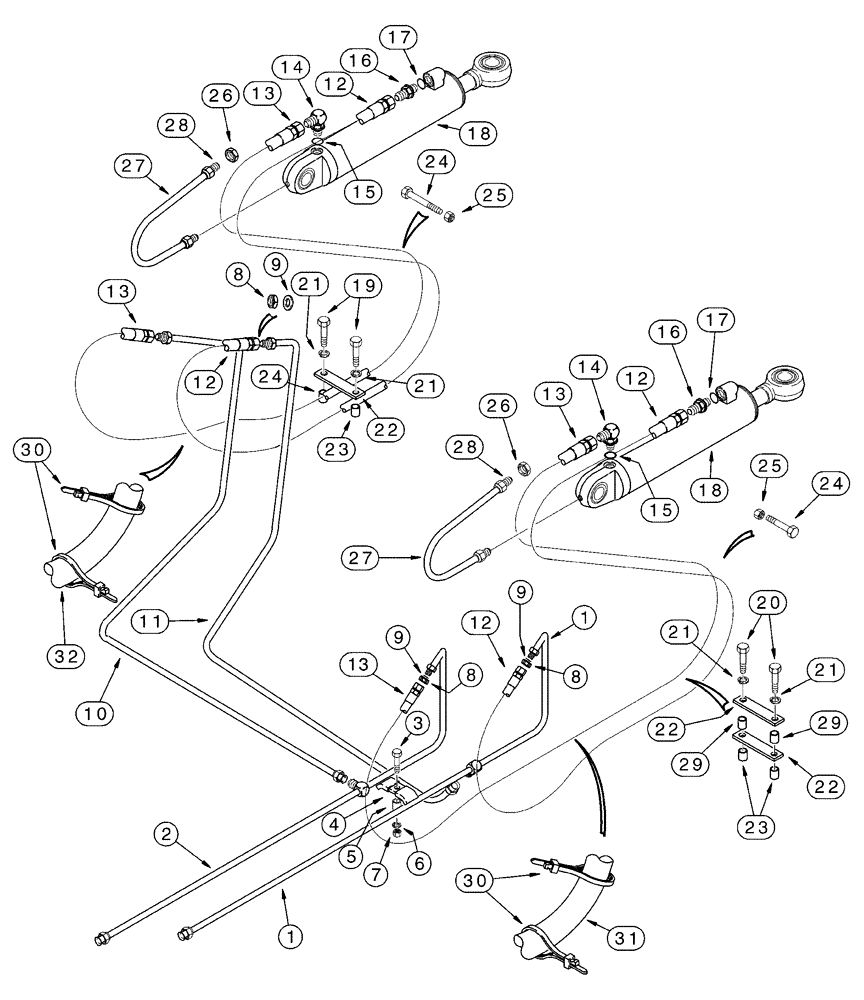

Запчасти Case 650H (08-09) - HYDRAULICS ANGLE CIRCUIT (08) - HYDRAULICS

x

X

PORT

Descending Tubes Cylinders

1шт.

1

364729A1

HYD TUBE

Right Hand, To Rod End of Cylinder, Lower Port Of Control Valve

1шт.

2

364739A1

HYD TUBE

Right Hand, To Closed End of Cylinder, Upper Port Of Control Valve

1шт.

3

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

4

D138055

CLAMP

1шт.

5

D76208

SPACER

1шт.

6

492-11038

LOCK WASHER,3/8"

1шт.

7

425-106

NUT,3/8"-16, Cl 5

1шт.

8

218-1255

BHD LOCK NUT,Blkhd, 3/4"-16

4шт.

9

D35268

SHIM,1/32" Thk

4шт.

10

119727A1

TUBE

Left Hand, To Rod End of Cylinder, Lower Port Of Control Valve

1шт.

11

119729A1

TUBE,12.7 mm OD, 553, 347 mm Length

Left Hand, To Closed End of Cylinder, Upper Port Of Control Valve

1шт.

12

R28970

HOSE,12.70 mm ID x 1473.00 mm, SAE 100R2

To Rod End of Cylinder

2шт.

13

2701003-3

HOSE ASSY.

1016 mm (40 inch), To Closed End of Cylinder

2шт.

x

X

PORT

Descending Tubes Cylinders

1шт.

14

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Includes 15

2шт.

15

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

16

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Incl. 17

2шт.

17

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

18

190595A2

CYLINDER

89 ID x 396 mm strk, Angle, See Page(s) 8-39

2шт.

18

84135900R

REMAN-HYD CYLINDER

Reman for new P/N190595A2

2шт.

18

84135900C

CORE-HYD CYLINDER

Return Number

2шт.

19

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

20

413-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

2шт.

21

492-11038

LOCK WASHER,3/8"

4шт.

22

123171A1

LARGE PLATE

PLATE, LARGE

3шт.

23

123172A1

SPACER

2шт.

24

413-660

BOLT,Hex, 3/8" - 16 x 3-3/4", Gr 5

3/8 x 3-3/4

2шт.

25

231-1446

NUT,3/8" - 16, Gr 5

2шт.

26

F53473

LOCK NUT,1/8-27 NPSM

1/8 PT, Use Loctite No. 242

2шт.

x

B17422

LOCTITE

Loctite, No. 242, 50 ml

1шт.

27

L74161

HOSE,3.56mm ID x 533.4mm L, SAE 100R7

533 mm (21 inch)

2шт.

28

219-10

LUBE NIPPLE,1/4" - 28 NPTF

1/4 tpr x 11/16

2шт.

29

D36040

BUSHING

4шт.

30

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

4шт.

31

142306A1

SLEEVE

Four Hose Protection, Right Hand

1шт.

32

142334A1

SLEEVE

Two Hose Protection, Left Hand

1шт.
