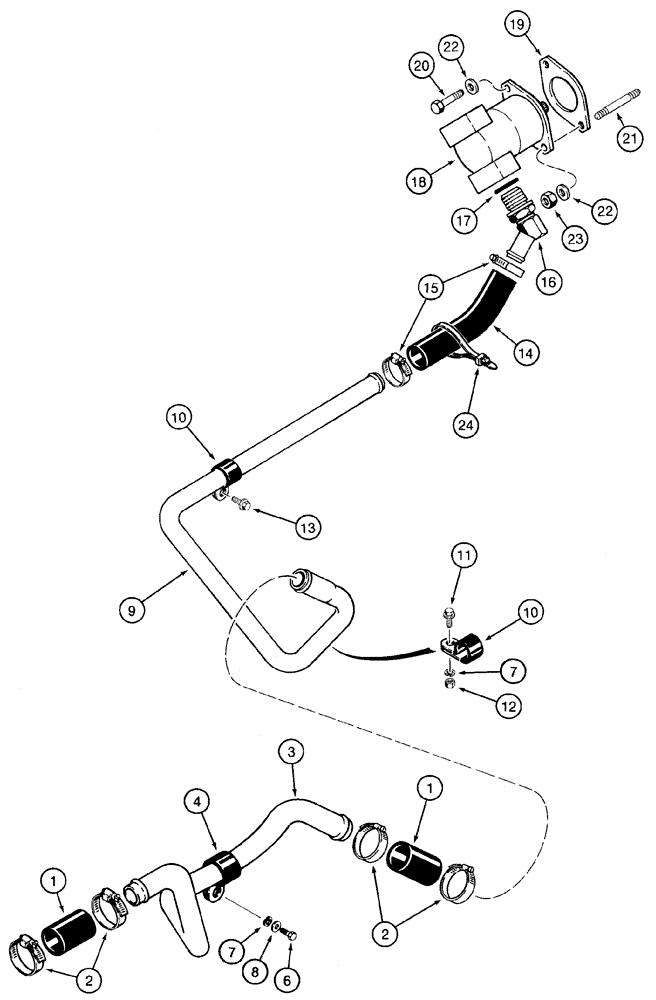

Запчасти Case 650H (08-02) - HYDRAULICS EQUIPMENT (08) - HYDRAULICS

Reservoir To Pump

1шт.

1

R43918

HOSE

114 mm ( 4-1/2 inch), Cut From R45924

2шт.

2

214-3140

HOSE CLAMP,1-3/4" - 2-5/8", HD Worm

4шт.

3

R56439

TUBE,1.5" OD

1шт.

4

49773

CLAMP

1шт.

6

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

7

492-11038

LOCK WASHER,3/8"

2шт.

8

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(13/32 x 13/16 x 1/16")

1шт.

9

R57340

TUBE,31.75 mm OD

1шт.

10

D40471

CLAMP

2шт.

11

160-103

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 8, Full Thd

1шт.

12

425-146

JAM NUT,3/8" - 16, Gr 5

1шт.

13

160-101

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

3/8 x 3/4; 8

1шт.

14

D35463

HOSE

321 mm (12-5/8 inch)

1шт.

15

214-3128

HOSE CLAMP,1" - 1-7/8", HD Worm

1 - 1-7/8

2шт.

16

139110A1

ELBOW

Includes 17

1шт.

17

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

1шт.

18

186352A1

PUMP, HYDRAULIC

See Page(s) 8-13

1шт.

396801A2R

REMAN-HYD PUMP

650H; Reman for New P/N 186352A1

1шт.

396801A2C

CORE-HYDRAULIC PUMP

Return Number

1шт.

19

J931608

GASKET

1шт.

20

814-12080

BOLT,Hex, M12 x 1.75 x 80mm, Cl 8.8

1шт.

21

R57506

STUD

1шт.

22

496-21053

WASHER,17/32" x 1 1/16" x .134"

2шт.

23

829-1412

NUT,M12, Cl 10.9

1шт.

24

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

1шт.
