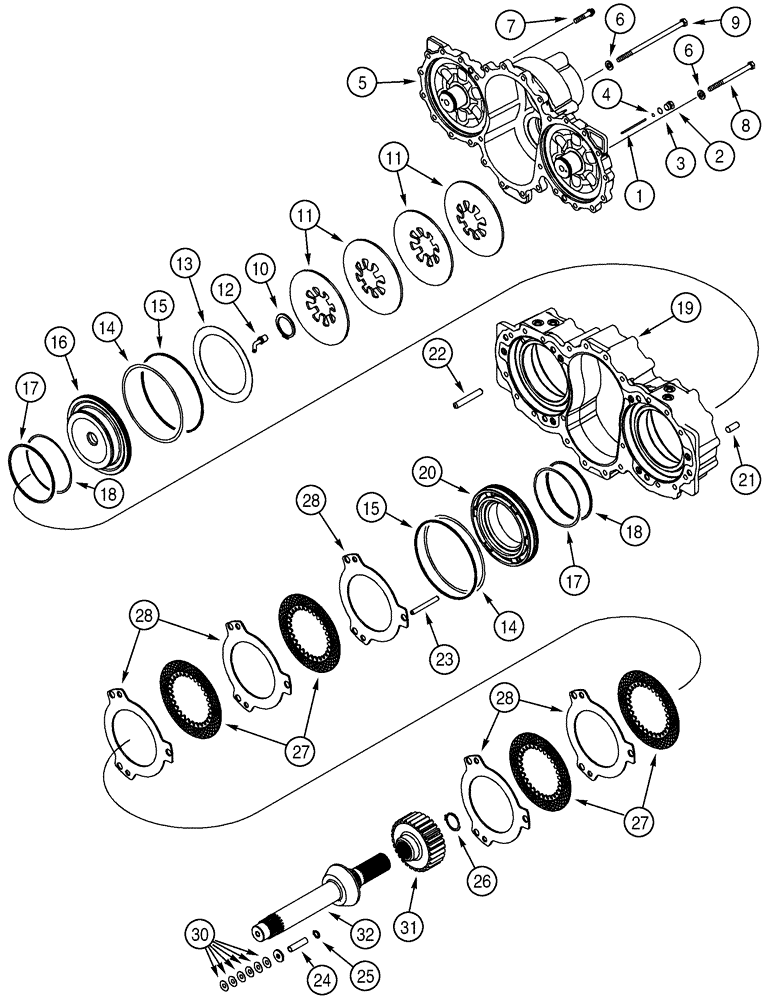

Запчасти Case 650H (07-03) - BRAKES TRANSMISSION (07) - BRAKES

REF

INSTRUCTION

Transmission, Includes 1 - 32, For Complete Assembly, See Page(s) 6-9 - 6-51, 7-9, 7-11

1шт.

1

1997011C4

PIN

Brake Wear

2шт.

2

1997050C3

PLUG

Special

2шт.

3

238-5006

O-RING,0.07" Thk x 0.114" ID, -6, Cl 5, 75 Duro

2шт.

4

100-2531

SNAP RING,0.312", Int, #31

2шт.

5

322005A3

COVER

Housing, Brake and Range, Use Sealant, No. 515

1шт.

B17555

LOCTITE

No. 515, 50 ml

1шт.

6

896-12010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

28шт.

7

868-10045

12 PT SCREW,M10 x 45mm, Cl 12.9

6шт.

8

608-10130

BOLT,Hex, M10 x 130mm, Cl 10.9

20шт.

9

608-10210

BOLT,Hex, M10 x 210mm, Cl 10.9

2шт.

10

100-16193

SNAP RING,#193, Ext

2шт.

11

1348986C1

SPRING

8шт.

12

1997079C1

TUBE,7.94 mm OD

Lubrication

2шт.

13

1348999C1

SPRING WASHER,146.8mm ID x 187mm OD x 1.05mm Thk

2шт.

14

1348992C1

SEAL

4шт.

15

238-7167

O-RING,0.103" Thk x 6.987" ID, -167, Cl 7, 75 Duro

4шт.

16

1348971C2

PISTON

Brake

2шт.

17

1348903C1

SEAL

4шт.

18

238-5159

O-RING,0.103" Thk x 4.987" ID, -159, Cl 5, 75 Duro

4шт.

REF

INSTRUCTION

Transmission, Continued From Previous Page

1шт.

19

315952A4

HOUSING

Brake and Range, Use Sealant, No. 515

1шт.

B17555

LOCTITE

No. 515, 50 ml

1шт.

20

1348972C2

PISTON

2шт.

21

37-1820

DOWEL,1/2" x 1 1/4"

2шт.

22

37-1852

DOWEL,3/4" x 3 1/4"

4шт.

23

37-1652

DOWEL,3/8" x 3 1/4"

6шт.

24

1348983C1

TUBE,9.83 mm ID, 12.7 mm OD, 50 mm Length

Self Adjuster

6шт.

25

100-1450

SNAP RING,#50, Ext

12шт.

26

800-1140

SNAP RING,M40, Ext

2шт.

27

G102354

PLATE

8шт.

28

1348965C3

LARGE PLATE

PLATE, LARGE

10шт.

29

396-41041

WASHER,13/32" x 1 1/8" x .134", HDN

6шт.

30

1348985C1

SPRING

36шт.

31

1348981C1

HUB

Brake

2шт.

32

REF

INSTRUCTION

Shaft, Pinion, See Page(s) 6-9

2шт.
