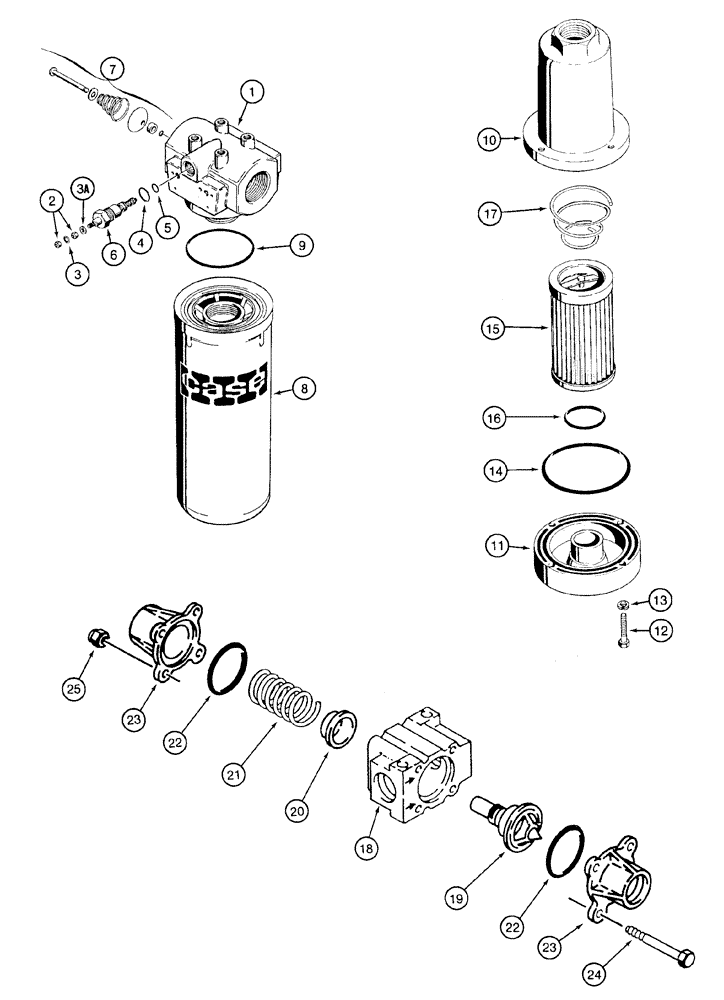

Запчасти Case 650H (06-18) - FILTER ASSY, OIL VALVE, COOLER BYPASS - TRANSMISSION OIL FILTER, HYDRAULIC OIL FILTER (06) - POWER TRAIN

Transmission Oil Filter

1шт.

Hydraulic Oil Filter

1шт.

R48993

FILTER

Consists Of 1 - 9

2шт.

1

NSS

NOT SOLD SEPARAT

Head

1шт.

N7929

INDICATOR

Consists Of 2 - 6

1шт.

2

129-667

NUT,#10-32, LH

2шт.

3

493-21020

LOCK WASHER,Int Tooth, #10

(3/16")

1шт.

3a

NSS

NOT SOLD SEPARAT

Washer

1шт.

4

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

5

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

1шт.

6

NSS

NOT SOLD SEPARAT

Indicator

1шт.

7

NSS

NOT SOLD SEPARAT

Valve, By-Pass

1шт.

1346028C1

HYDRAULIC OIL FILTER

Consists Of 8, 9

1шт.

8

NSS

NOT SOLD SEPARAT

Element

1шт.

9

N9026

O-RING

Transmission Suction Line Filter

1шт.

D35144

FILTER

FILTER, OIL , Consists Of 10 - 17

1шт.

10

D37033

HOUSING

1шт.

11

D37034

HEAD

1шт.

12

413-424

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

4шт.

13

492-11025

LOCK WASHER,1/4"

4шт.

14

D21006

O-RING,0.125" Thk x 3.125" ID, 70 Duro

1шт.

15

D37035

FILTER, ELEMENT

ELEMENT, FILTER , Includes 16

1шт.

16

238-5218

O-RING,0.139" Thk x 1.234" ID, -218, Cl 5, 75 Duro

1шт.

17

D37036

SPRING

1шт.

Cooler Bypass Valve

1шт.

R51141

THERMOSTAT

Consists Of 18 - 25

1шт.

18

NSS

NOT SOLD SEPARAT

Body

1шт.

19

N9802

THERMOSTAT

1шт.

20

A48899

SEAL

1шт.

21

N9804

SPRING

1шт.

22

238-5034

O-RING,0.07" Thk x 2.114" ID, -34, Cl 5, 75 Duro

2шт.

23

NSS

NOT SOLD SEPARAT

Cap

2шт.

24

413-452

BOLT,Hex, 1/4" - 20 x 3-1/4", Gr 5

4шт.

25

131-461

LOCK NUT,1/4"-20

4шт.
