Запчасти Case 650H (06-17) - HYDRAULICS CRAWLER CIRCUIT (06) - POWER TRAIN

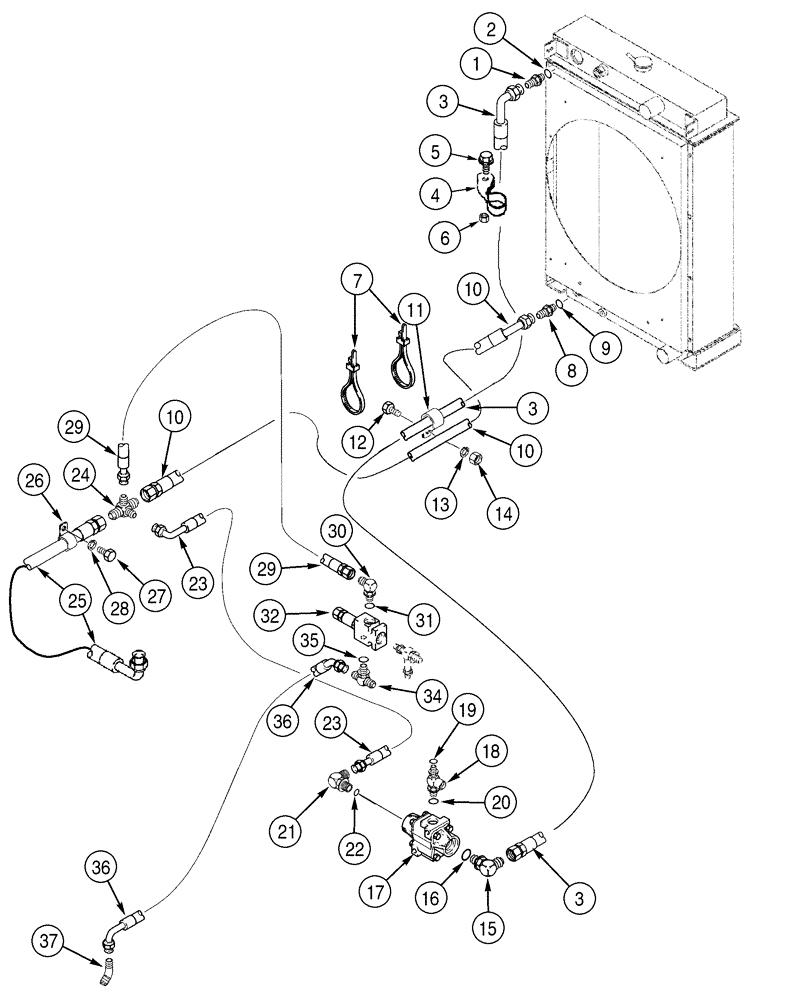

Схема запчастей Case 650H - (06-17) - HYDRAULICS CRAWLER CIRCUIT (06) - POWER TRAIN
31
3
23
30
34
6
28
10
13
10
5
2
8
36
10
15
29
18
14
25
12
7
24
22
23
1
19
27
26
29
37
32
35
17
21
20
3
36
11
4
16
9
3

Артикул

Название

Примечание

Количество

Cooling System

1шт.

1

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Incl. 2

1шт.

2

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

3

363070A1

HOSE ASSY.

2400 mm (94-1/2 inch), Radiator to Bypass Valve

1шт.

4

R45966

CLAMP,0.94mm, Coat, 90 Degree Twist

1шт.

5

160-102

BOLT,Hex, 3/8" - 16 x 1", Gr 8, Full Thd

1шт.

6

231-1446

NUT,3/8" - 16, Gr 5

1шт.

7

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

1шт.

8

218-5030

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

1-1/16 fl x Or, Includes 9

1шт.

9

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

10

365308A1

HOSE ASSY.

1275 mm (50-1/4 inch), Cooler In

1шт.

11

D40471

CLAMP

1шт.

12

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

1шт.

13

492-11038

LOCK WASHER,3/8"

1шт.

14

425-106

NUT,3/8"-16, Cl 5

1шт.

15

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Incl. 16

1шт.

16

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

17

R51141

THERMOSTAT

See Page(s) 6-69

1шт.

18

R57336

TEE,1-1/16" - 12 ORB x 3/4" - 16 ORB x 1/2" NPT

Includes 19, 20

1шт.

19

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

20

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

21

218-5120

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 1-1/16" - 12 Male ORB

3/4 fl x 1-1/16 adj Or, Includes 22

1шт.

22

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

Cooling System

1шт.

23

R57486

HOSE

700 mm (27-5/8 in)

1шт.

24

R57479

FITTING

1шт.

25

326237A1

HOSE ASSY.

813 mm (32 inch)

1шт.

26

515-23317

CLAMP,31.75mm ID, 10.3mm Bolt Hole, P Type

1шт.

27

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

28

492-11038

LOCK WASHER,3/8"

1шт.

29

R57487

HOSE

560 mm (22-1/8 inch, To Relief Valve

1шт.

30

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Includes 31

1шт.

31

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

32

R57597

VALVE

Includes 33

1шт.

33

S301087

SEAL KIT

External, Not Illustrated

1шт.

34

218-5182

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

9/16 adj Or x fl x fl, Includes 35

1шт.

36

321122A1

HOSE ASSY.

1067 mm (42 inch), Transmission Vent

1шт.

37

218-533

ELBOW,45 Degree, 9/16-18" 37 Degree x 1/4"-18, NPTF

1шт.

35

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
