Запчасти Case 650H (06-14) - VALVE, CONTROL HIGH/LOW RANGE (06) - POWER TRAIN

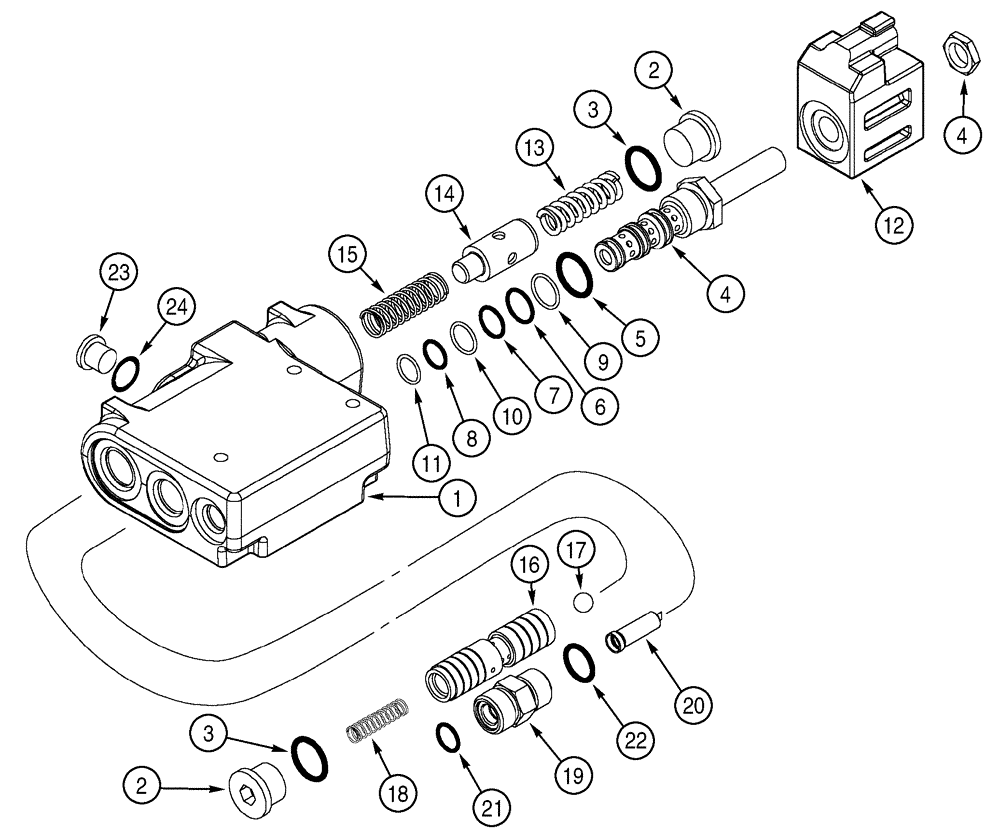

Схема запчастей Case 650H - (06-14) - VALVE, CONTROL HIGH/LOW RANGE (06) - POWER TRAIN
15
3
4
23
10
2
16
2
12
8
3
13
24
19
18
20
21
5
22
4
14
6
9
1
7
11
17

Артикул

Название

Примечание

Количество

329902A3

VALVE

High/Low Range, Consists Of 1 - 22

1шт.

1

NSS

NOT SOLD SEPARAT

Body

1шт.

2

86625138

PLUG,7/18" - 14

Includes Ref. 3

2шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

329905A1

VALVE

Consists Of 4 - 12

1шт.

4

187849C1

SOLENOID VALVE

4-Way

1шт.

187850C1

SEAL KIT

Inc. 5 - 11

1шт.

5

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

6

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

7

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

8

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

9

NSS

NOT SOLD SEPARAT

Ring, Backup

1шт.

10

NSS

NOT SOLD SEPARAT

Ring, Backup

1шт.

11

NSS

NOT SOLD SEPARAT

Ring, Backup

1шт.

12

353941A1

COIL

1шт.

13

121866A1

SPRING

Outer

1шт.

14

357334A1

PISTON

1шт.

15

189259A1

SPRING

Inner

1шт.

16

357333A1

SPOOL

1шт.

17

358919A1

BALL

3/8, Rubber

1шт.

18

357335A1

SPRING

Check Valve

1шт.

329902A3

VALVE

High/Low Range, Continued From Previous Page

1шт.

365037A1

FITTING

Screen, Consists Of 19 - 22

1шт.

19

365036A1

FITTING

1шт.

20

326965A1

FILTER STRAINER,10.46mm OD x 33.7mm L, 140 Micron

1шт.

21

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

22

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

23

9625178

PLUG,9/16" - 18 ORB

Incl. 24

1шт.

24

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

Выбрано товаров: 29
