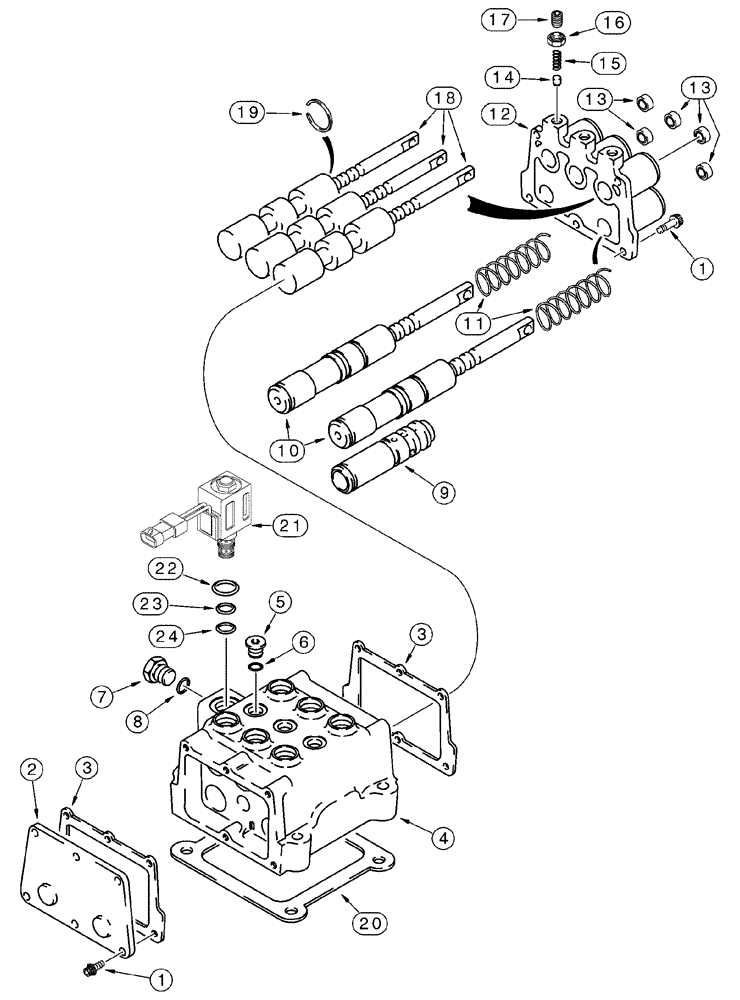

Запчасти Case 650H (06-12) - TRANSMISSION VALVE, CONTROL (06) - POWER TRAIN

REF

INSTRUCTION

Transmission, Includes 1 - 24, For Complete Assembly, See Page(s) 6-9 - 6-51, 7-9, 7-11

1шт.

125588A4

VALVE

Consists Of 1 - 24

1шт.

1

193-511

HEX SOC SCREW,Sems, 1/4"-28 x 5/8"

1/4 NF x 5/8, With Lock Washer

11шт.

2

R21384

COVER

Rear

1шт.

3

35665

GASKET

2шт.

4

NSS

NOT SOLD SEPARAT

Body

1шт.

5

278548

PLUG,Hex, 7/16"-20 ORB

Incl 6

3шт.

6

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

7

86529630

PLUG,Hex Soc, 3/8"-24 ORB

Includes 8

3шт.

8

237-6003

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

1шт.

9

126430A3

SPOOL

Forward/Reverse Modulation, See Page(s) 6-49

1шт.

10

189265A2

SPOOL

Clutch Cutout, See Page(s) 6-49

2шт.

11

121865A1

SPRING

2шт.

1542672C1

COVER

Front, Consists Of 12, 13

1шт.

12

NSS

NOT SOLD SEPARAT

Cover

1шт.

13

G105700

OIL SEAL

5шт.

14

71120

VALVE

3шт.

15

1542824C1

SPRING

3шт.

16

131-407

LOCK NUT,Pal, 3/8" - 16, 0.145" High

3шт.

17

G104208

SET SCREW

3/8 x 1/2, Sealant Coated

3шт.

REF

INSTRUCTION

Transmission, Continued From Previous Page

1шт.

18

G107659

ROD

Shift Control, Includes 19

3шт.

19

G107637

RING, SNAP

RING SNAP

1шт.

20

1986527C1

GASKET

Control Valve Base

1шт.

349296A1

CARTRIDGE

12 V, Brake, Consists Of 21 - 24

1шт.

21

NSS

NOT SOLD SEPARAT

12 V, Valve, Solenoid

1шт.

22

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

23

238-5014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 5, 75 Duro

1шт.

24

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

1шт.
