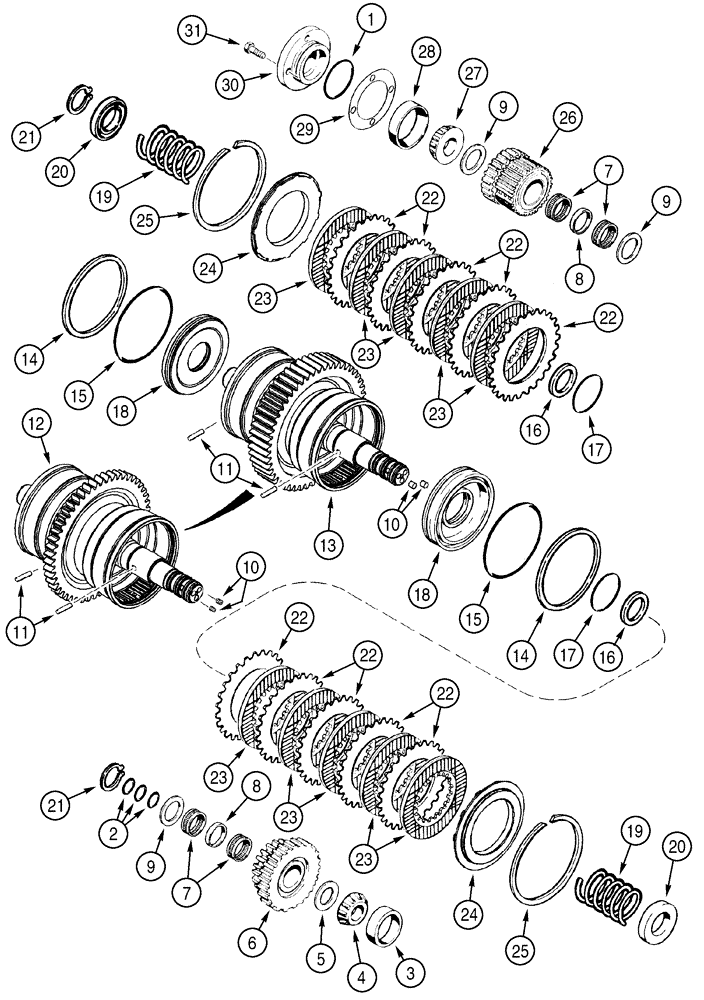

Запчасти Case 650H (06-08) - TRANSMISSION CLUTCH, HIGH/LOW TRACK (06) - POWER TRAIN

REF

INSTRUCTION

Transmission, Includes 1 - 31, For Complete Assembly, See Page(s) 6-9 - 6-51, 7-9, 7-11

1шт.

1

238-5151

O-RING,0.103" Thk x 2.987" ID, -151, Cl 5, 75 Duro

2шт.

2

A175509

SEALING RING,32.81mm ID x 36.13mm OD x 2.38mm Thk

SEALRING

6шт.

3

G100312

BEARING, CUP,85mm OD x 19.05mm W

2шт.

4

3131513R91

ROLLER BEARING

2шт.

5

329878A1

THRUST WASHER

2шт.

6

1997063C1

GEAR

29/40 T

2шт.

7

A178460

NEEDLE BEARING,44.99mm ID x 50.02mm OD x 16.8mm W

8шт.

8

A188194

RING,46.25mm ID x 49.8mm OD x 6.38mm Thk

4шт.

9

A188192

WASHER, THRUST,45.05mm ID x 64.94mm OD x 2.05mm Thk

6шт.

329875A2

High - Low, With Shaft and Gear, Left Hand, Consists Of 10 - 12, 14 - 25

1шт.

329871A2

High - Low, With Shaft and Gear, Right Hand, Consists Of 10, 11, 13 - 25

1шт.

10

1345887C1

PLUG

9 mm

2шт.

11

38-3605

PIN,3/32" x 5/16", Coiled

2шт.

REF

INSTRUCTION

Transmission, Continued From Previous Page

1шт.

329875A2

Left Hand, Continued From Previous Page

1шт.

329871A2

Right Hand, Continued From Previous Page

1шт.

12

329874A2

SHAFT ASSY.

51 T, Left Hand

1шт.

13

329870A2

SHAFT ASSY.

51 T, Right Hand

1шт.

14

329896A1

SEAL,128.35mm ID x 135.63mm OD x 2.92mm Thk

2шт.

15

238-5158

O-RING,0.103" Thk x 4.737" ID, -158, Cl 5, 75 Duro

2шт.

16

A159297

SEAL,47.2mm ID x 54.1mm OD x 3.1mm Thk

SEALRING

2шт.

17

238-5137

O-RING,0.103" Thk x 2.05" ID, -137, Cl 5, 75 Duro

2шт.

18

329889A1

PISTON

2шт.

19

A188080

SPRING

2шт.

20

A188044

RETAINER

2шт.

21

100-16175

SNAP RING,#175, Ext

2шт.

22

345335A1

PLATE

Separator

10шт.

23

345334A1

FACING

Friction

10шт.

24

360389A1

PLATE

2шт.

25

329907A1

RING

2шт.

REF

INSTRUCTION

Transmission, Continued From Previous Page

1шт.

26

1997064C1

GEAR

20/40 T, Low Clutch

2шт.

27

G100313

BEARING CONE,34.92mm ID x 20.64mm W

Rear

2шт.

28

A50264

BEARING CUP,72mm OD x 14.2mm W

Rear

2шт.

29

G103645

SHIM,.003" Thk

(0.076 mm)

1шт.

29

G103647

SHIM,.010" Thk

(0.254 mm)

1шт.

29

1348980C1

BLOCK

0,504 mm (0,02 in)

1шт.

30

G103644

COVER ASSY

2шт.

31

608-10030

BOLT,Hex, M10 x 30mm, Cl 10.9

3/8 x 1-1/4; 8

8шт.
