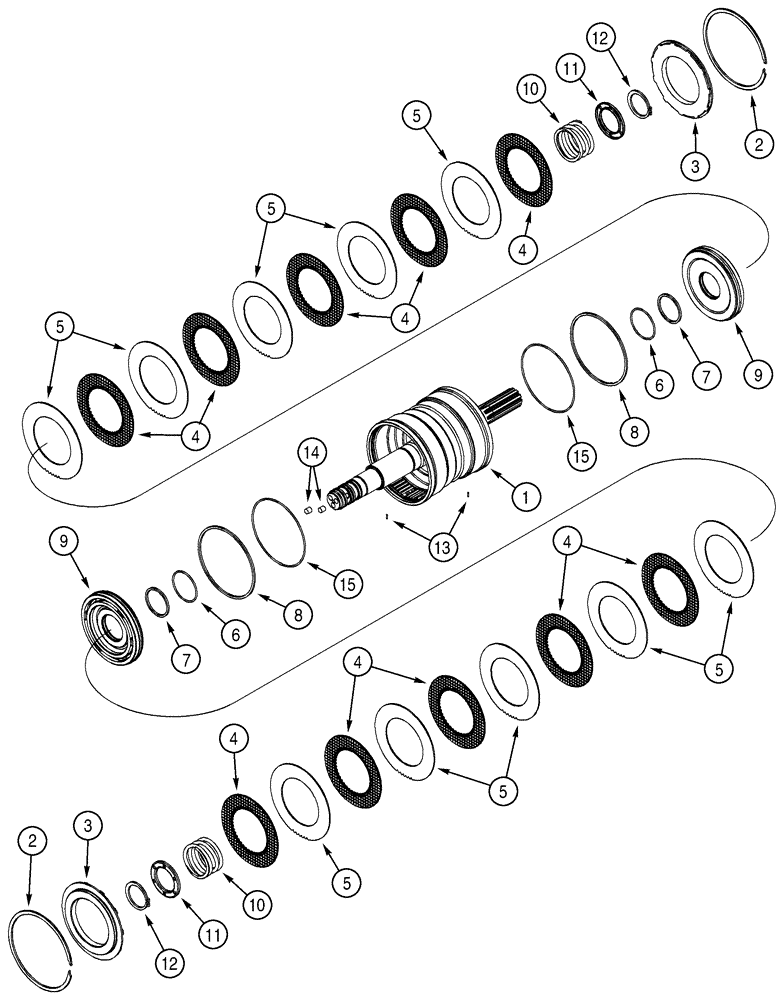

Запчасти Case 650H (06-06) - TRANSMISSION CLUTCH, HIGH/LOW RANGE (06) - POWER TRAIN

REF

INSTRUCTION

Transmission, Includes 1 - 15, For Complete Assembly, See Page(s) 6-9 - 6-51, 7-9, 7-11

1шт.

315944A1

Input, Consists Of 1 - 15

1шт.

1

315946A1

SHAFT

1шт.

2

329907A1

RING

2шт.

3

329895A1

PLATE

2шт.

4

345334A1

FACING

Friction

10шт.

5

345335A1

PLATE

Separator

10шт.

6

238-5137

O-RING,0.103" Thk x 2.05" ID, -137, Cl 5, 75 Duro

2шт.

7

A159297

SEAL,47.2mm ID x 54.1mm OD x 3.1mm Thk

SEALRING

2шт.

8

329896A1

SEAL,128.35mm ID x 135.63mm OD x 2.92mm Thk

2шт.

9

329889A1

PISTON

2шт.

10

A188080

SPRING

2шт.

11

A188044

RETAINER

2шт.

12

100-16175

SNAP RING,#175, Ext

2шт.

13

38-3605

PIN,3/32" x 5/16", Coiled

2шт.

14

1345887C1

PLUG

9 mm

2шт.

15

238-5158

O-RING,0.103" Thk x 4.737" ID, -158, Cl 5, 75 Duro

2шт.
