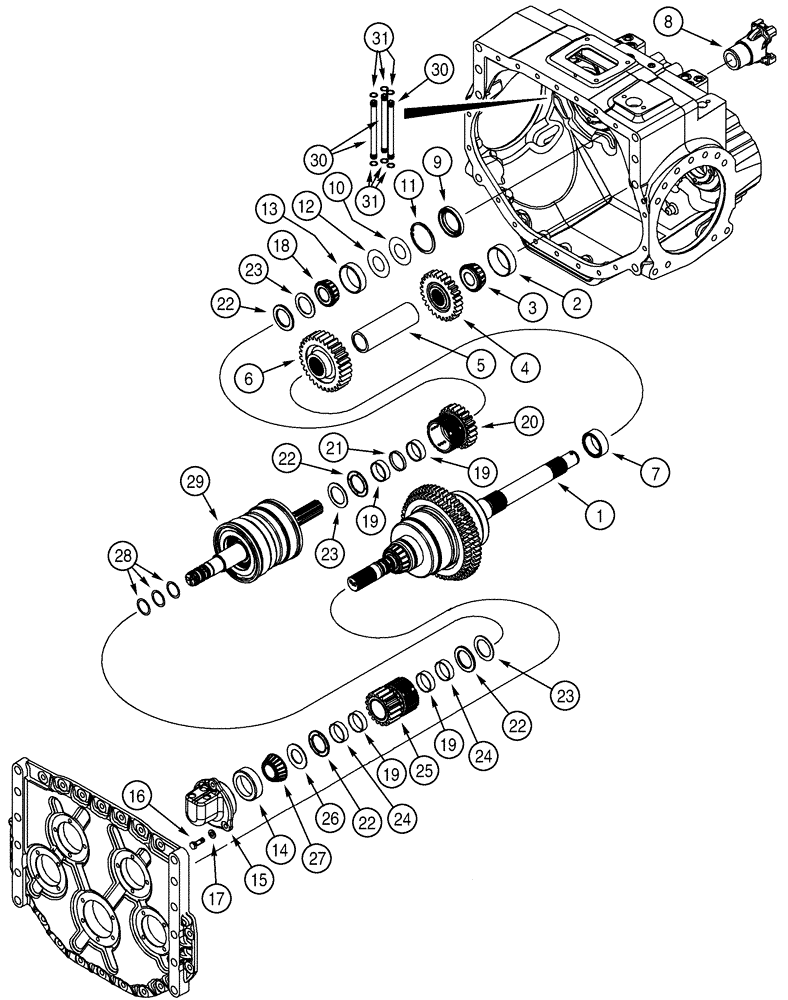

Запчасти Case 650H (06-05) - TRANSMISSION RANGE, HIGH/LOW (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
REF
INSTRUCTION
Transmission, Includes 1 - 43, For Complete Assembly, See Page(s) 6-9 - 6-51, 7-9, 7-11
1шт.
1
REF
INSTRUCTION
Shaft Assy, Main, See Page(s) 6-23, 6-25
1шт.
2
128242R1
BEARING CUP,76.225 mm OD x 23.863 mm
Main Shaft, Outer
1шт.
3
G106461
ROLLER BEARING,33.34mm ID x 28.78mm W
Main Shaft, Outer
1шт.
4
315942A1
GEAR
26T, High Range, Driven
1шт.
5
360387A1
SPACER
1шт.
6
315943A1
GEAR
30T, Low Range, Driven
1шт.
7
H748111
NEEDLE BEARING,Needle, 50.8mm ID x 65.17mm OD x 25.4mm W
1шт.
8
329881A1
YOKE
UNIVERSAL JOINT YOKE , See Page(s) 6-3, Input Shaft
1шт.
9
329847A2
SEAL
1шт.
10
1997006C2
SHIM
3,175 mm
1шт.
11
100-21300
SNAP RING,3.00", Int, #300
1шт.
12
329908A1
SHIM
0,305 mm
1шт.
12
329909A1
SHIM
0,127 mm
1шт.
13
165964R1
BEARING CUP
Outer
1шт.
14
330552A1
BEARING CUP,79.3877 mm OD x 22.5628 mm
Inner
1шт.
REF
INSTRUCTION
Transmission, Continued From Previous Page
1шт.
15
329906A1
CAP
1шт.
16
608-10030
BOLT,Hex, M10 x 30mm, Cl 10.9
M10 x 30; 10.9
3шт.
17
896-12010
WASHER,11mm ID x 21mm OD x 2.5mm Thk
11 x 21 x 2,5 mm
3шт.
18
560953R91
BEARING ASSY,1.375" ID x 2.875" OD x 0.9688"
1шт.
19
A178460
NEEDLE BEARING,44.99mm ID x 50.02mm OD x 16.8mm W
4шт.
20
329855A1
GEAR
22T, High Range, Driver
1шт.
20
315949A1
GEAR
22T, High Range, Driver, Optional
1шт.
21
A188194
RING,46.25mm ID x 49.8mm OD x 6.38mm Thk
1шт.
22
A183452
THRUST BEARING,45.05mm ID x 66.85mm OD x 3.85mm W
4шт.
23
A188192
WASHER, THRUST,45.05mm ID x 64.94mm OD x 2.05mm Thk
3шт.
24
228800A1
SPACER
2шт.
25
329857A1
GEAR
17T, Low Range, Driver
1шт.
25
315950A1
GEAR
17T, Low Range, Driver, Optional
1шт.
26
329878A1
THRUST WASHER
1шт.
27
330551A1
ROLLER BEARING,36.512 mm ID x 29.4716 mm
1шт.
29
315944A1
Input, See Page(s) 6-19
1шт.
30
329910A2
TUBE,8 mm ID, 15.35 mm OD, 165 mm Length
Jumper
3шт.
