Запчасти Case 650H (06-03) - MOUNTING TRANSMISSION AND DIPSTICK TUBE (06) - POWER TRAIN

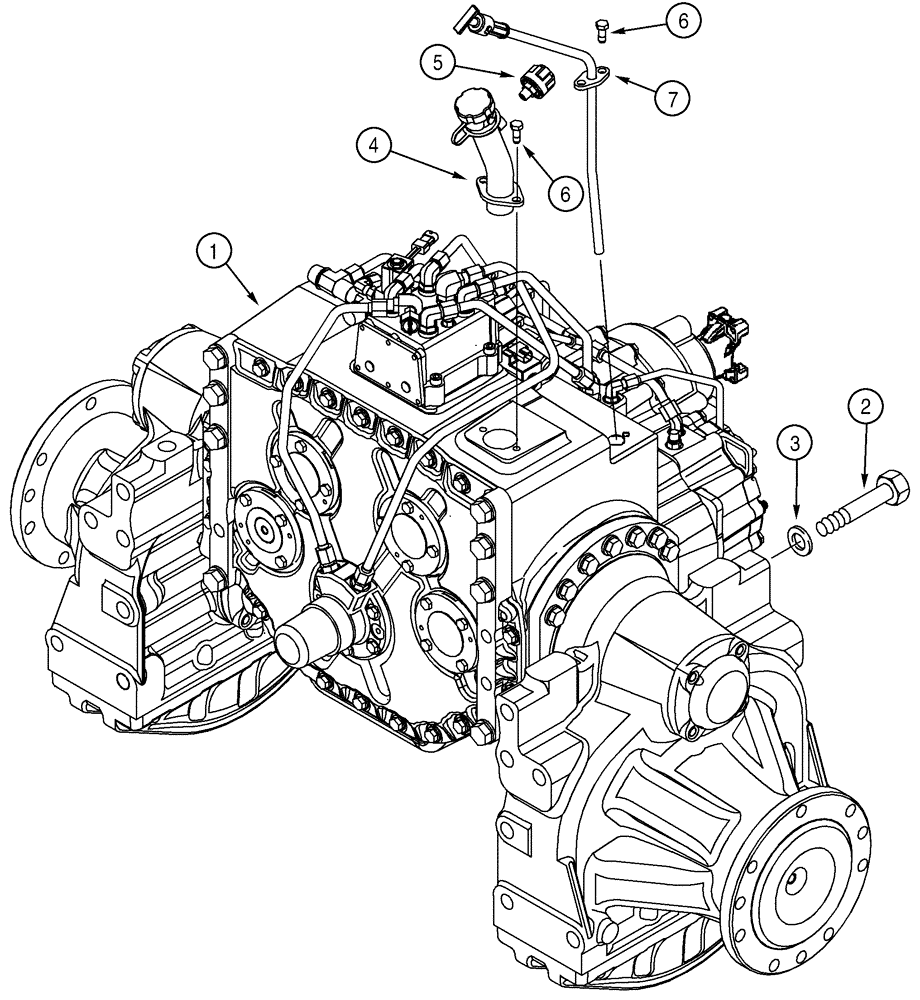

Схема запчастей Case 650H - (06-03) - MOUNTING TRANSMISSION AND DIPSTICK TUBE (06) - POWER TRAIN
2
6
4
6
7
3
1
5

Артикул

Название

Примечание

Количество

1

329835A3

TRANSMISSION

Includes 4 - 7, For Complete Assembly, See Page(s) 6-9 - 6-51, 7-9, 7-11

1шт.

2

107-91640

LOCK BOLT,Locking, 1"-8 x 2 1/2", G8

Transmission to Main Frame

6шт.

3

D30196

WASHER

6шт.

4

359316A3

TUBE

Oil Fill, Includes Cap, Use Sealant B17555

1шт.

B17555

LOCTITE

No. 515, 50 ml

1шт.

5

1971726C1

BREATHER,1/4" - 18

1шт.

6

608-10025

BOLT,Hex, M10 x 25mm, Cl 10.9

M10 x 25; 10.9

4шт.

7

329877A3

TUBE,12.7 mm OD, 496.2, 215.5 mm Length

With Tube, Use Sealant B17555

1шт.

B17555

LOCTITE

No. 515, 50 ml

1шт.

Выбрано товаров: 9
