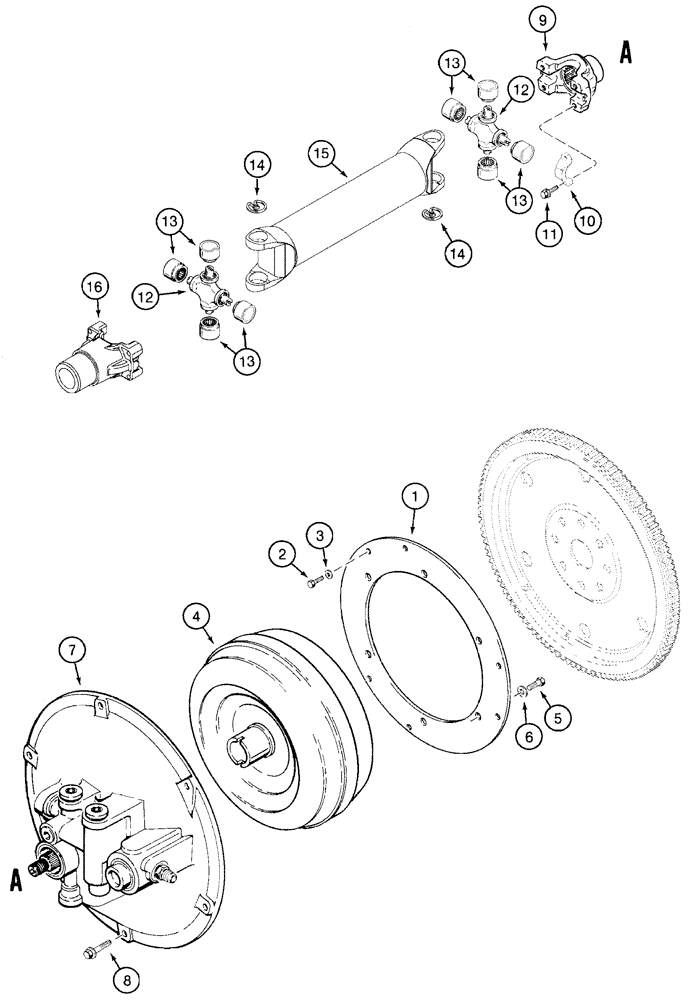

Запчасти Case 650H (06-01) - TORQUE CONVERTER DRIVE SHAFT (06) - POWER TRAIN

1

A178706

PLATE

1шт.

2

428-510

BOLT,Hex, 5/16" - 24 x 5/8", Gr 8

5/16 NF x 5/8; 8, Adapter Plate to Flywheel Plate

6шт.

3

A15672

WASHER,8.74mm ID x 17.48mm OD x 1.52mm Thk

6шт.

4

371743A1

CONVERTER

Component Parts Not Serviced Separately

1шт.

5

614-10016

BOLT,Hex, M10 x 1.5 x 16mm, Cl 8.8, Full Thd

Adapter Plate to Torque Converter

6шт.

7

1348821C3

CONVERTER

See Page(s) 6-5

1шт.

8

R54620

BOLT,Hex, Flange, M10 x 35mm CL 10.9

Torque Converter Housing to Flywheel Housing

6шт.

9

1348826C1

CLEVIS

At Torque Converter

1шт.

10

90-6682T1

CLAMP

4шт.

11

9637611

SCREW,Hex Flng, 5/16" - 24 x 3/4"

Hex Flange Head, Special, 5/16 - 24 UNF x 1-1/16; Replaces D137627 Bolt

4шт.

329873A1

SHAFT

Torque Converter to Transmission, Consists Of 12 - 15

1шт.

134496A1

TOGGLE

Consists Of 12 - 14

2шт.

12

NSS

NOT SOLD SEPARAT

Joint, Universal

1шт.

13

NSS

NOT SOLD SEPARAT

Race

4шт.

14

R13992

RING, SNAP

RING SNAP

4шт.

15

NSS

NOT SOLD SEPARAT

Shaft

1шт.

16

329881A1

YOKE

UNIVERSAL JOINT YOKE , At Transmission

1шт.

6

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

11 x 21 x 2 mm

6шт.
