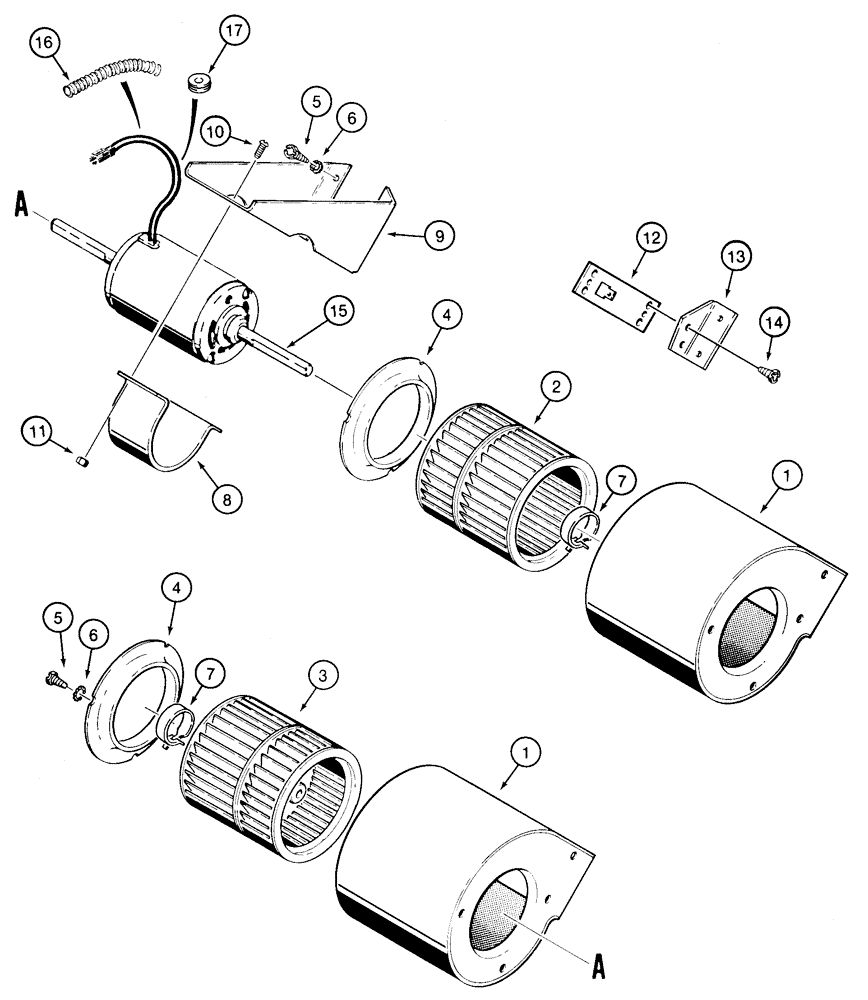

Запчасти Case 650H (04-20) - BLOWER CAB (04) - ELECTRICAL SYSTEMS

Inside Cab Roof

1шт.

1

F96724

HOUSING

Blower Fan

2шт.

2

F45020

BLOWER,Fan, RH

Blower, Right Hand

1шт.

3

F45021

BLOWER,Fan

Blower, Left Hand

1шт.

4

F63655

RETAINER

2шт.

5

280-1458

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

No. 10 x 1/2

16шт.

6

493-41020

LOCK WASHER,Ext Tooth, #10

16шт.

7

F64936

CLAMP

2шт.

8

F44728

CLAMP

1шт.

9

F44729

BRACKET

1шт.

10

440-11012

SCREW,Cross Pan Hd, #10-24 x 3/4"

4шт.

11

231-14409

NUT,#10-24, GB

4шт.

12

F44900

RESISTOR

12V

1шт.

13

R47848

SUPPORT

1шт.

14

280-1458

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

No. 10 x 1/2

4шт.

15

R54415

MOTOR, ELECTRIC

1шт.

16

1999845C1

CONDUIT

1шт.

17

96901C1

GROMMET

1шт.
