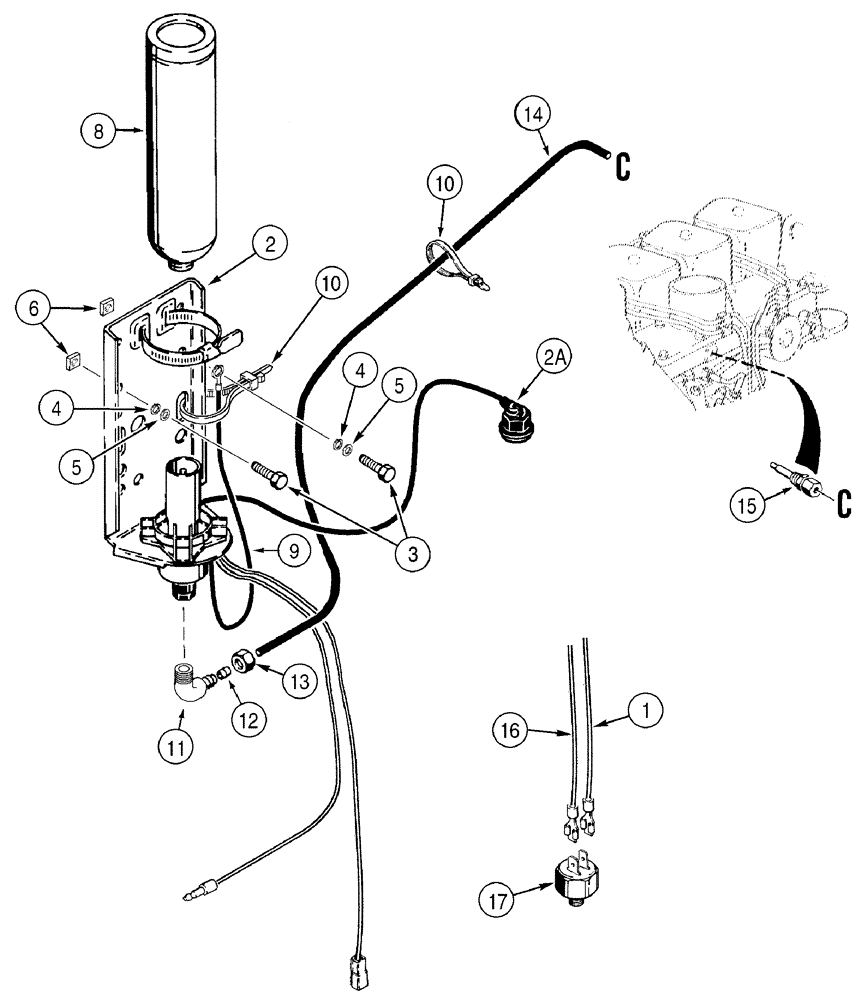

Запчасти Case 650H (04-19) - COLD START SYSTEM (04) - ELECTRICAL SYSTEMS

1

338943A1

HARNESS

Front, For Continuation of Harness, See Page(s) 4-23 - 4-33

1шт.

2

A172116

VALVE

12V, 3 cc, Cold Start, Includes 2A

1шт.

2a

254729A1

SET OF PARTS

Cap and Cord

1шт.

3

413-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

3шт.

4

492-11031

LOCK WASHER,5/16"

3шт.

5

495-11034

WASHER,5/16", SAE

(11/32 x 11/16 x 1/16")

3шт.

6

129-855

SQUARE NUT,Sq, 5/16"-18

3шт.

8

A171940

CYLINDER

Ether

1шт.

9

R51632

ELECTRICAL WIRE

WIRE Ground

1шт.

10

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

2шт.

11

222-615

ELBOW,90 Degree, 5/16"-24 x 1/8" NPT, Comp

1/8 tube OD, Incl. 12, 13

1шт.

12

222-650

SLEEVE,1/8" Tube, Comp

1шт.

13

222-660

FLANGE NUT,5/16"-24, 45 Degree Fl, Comp

1/8" tube OD

1шт.

14

D145367

TUBE

762 mm (30 in), Cut From L60539X

1шт.

15

A172900

NOZZLE CAP

Atomizer, Component Parts Not Serviced Separately

1шт.

16

182450A1

ELECTRICAL WIRE

WIRE Jumper

1шт.

17

A172117

SWITCH

Ether Temperature

1шт.
