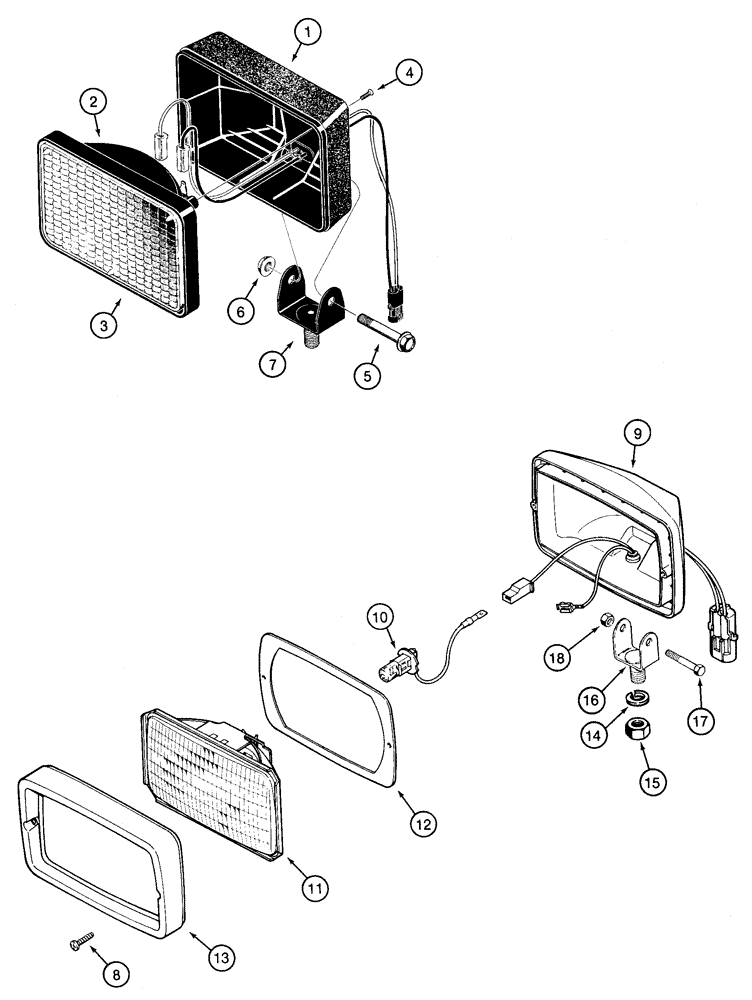

Запчасти Case 650H (04-17) - LAMP ASSY, FRONT AND REAR (04) - ELECTRICAL SYSTEMS

Models With Canopy

1шт.

D137294

LIGHT ASSY.

Lamp Assy Front And Rear, Consists Of 1 - 7, Production Only, For Service Order ZAA7189850

4шт.

ZAA7189850

HEADLIGHT

Lamp Assy Not Illustrated

4шт.

1

NSS

NOT SOLD SEPARAT

Housing

1шт.

2

NSS

NOT SOLD SEPARAT

Retainer, Housing

1шт.

3

F45230

HEADLIGHT

Bulb 28V, 60W, Halogen

1шт.

4

273-5048

SELF-TAP SCREW,Slotted Flat Hd, #8 x 1/2"

2шт.

5

121-232

SERRATED BOLT,Hex, 5/16" - 18 x 2", Gr 5

1шт.

6

230-4215

NUT,5/16"-18, GA

1шт.

7

N8347

SUPPORT

Bracket

1шт.

92269C1

WORK LAMP,Halogen, 12V, 55W, Clear

Lamp Assy Front And Rear, Consists Of 8 - 18 MODELS WITH CAB

4шт.

8

260-54312

SELF-TAP SCREW,Cross Pan Hd, #6 x 3/4"

Models with Cab

2шт.

9

NSS

NOT SOLD SEPARAT

Base, Lamp MODELS WITH CAB

1шт.

10

1312210C2

BULB,Halogen H3, 12V, 55W

12V, 55W, Models with Cab

1шт.

11

276498A1

LENS

Lens Includes 12 MODELS WITH CAB

1шт.

12

NSS

NOT SOLD SEPARAT

Gasket, Mounting MODELS WITH CAB

1шт.

13

1964806C1

BEZEL

Bezel MODELS WITH CAB

1шт.

15

832-10410

NUT,M10 x 1.5, Cl 8

Models with Cab

1шт.

16

A187915

BRACKET

Bracket MODELS WITH CAB

1шт.

17

814-8045

BOLT,Hex, M8 x 1.25 x 45mm, Cl 8.8

Models with Cab

1шт.

18

832-41308

NUT,M8 x 1.25, Cl 10

Models with Cab

1шт.

14

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

11 x 21 x 2 mm, Models with Cab

1шт.
