Запчасти Case 650H (04-12) - HARNESSES FRONT AND REAR -FRONT HARNESS TO HORN & FRONT HARNESS MOUNTING TO CONTROL VALVE (04) - ELECTRICAL SYSTEMS

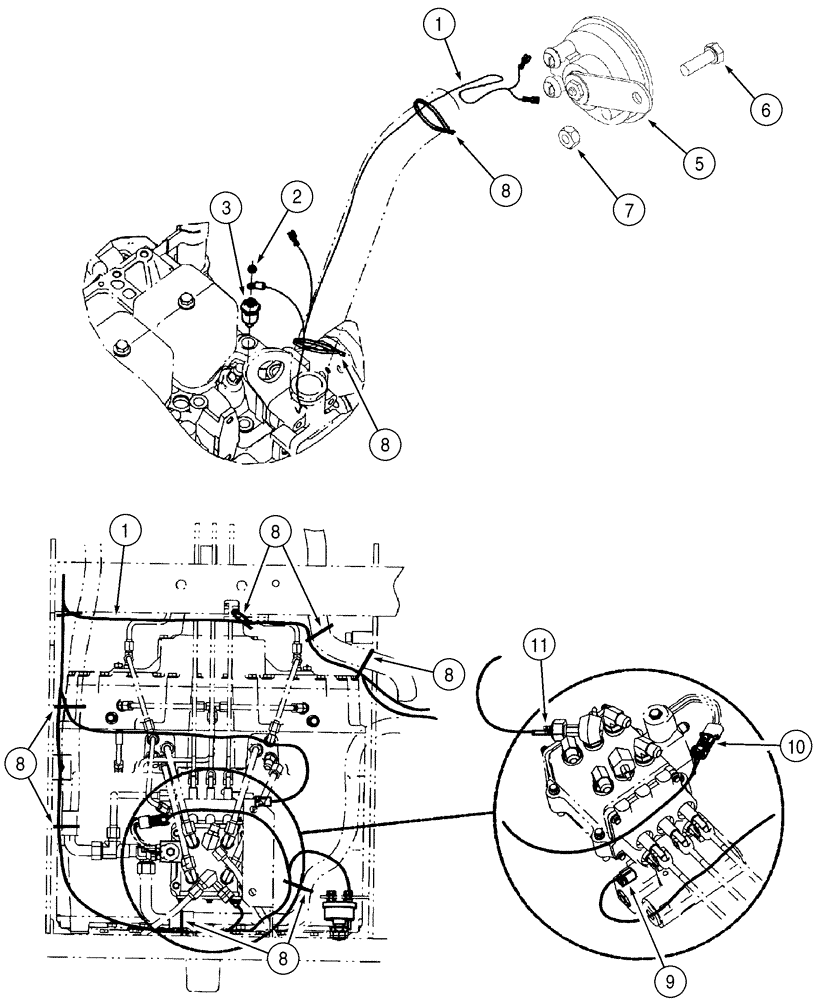

Front Harness to Horn and Front Harness Mounting to Control Valve

1шт.

1

338943A1

HARNESS

Front

1шт.

2

193-1000

NUT,Keps, w/LW,#10-32

No. 10 NF

1шт.

3

A166057

TEMPERATURE SENDER,1/2" - 14 NPTF

Coolant Temperature

1шт.

5

237582A1

HORN

1шт.

6

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.

7

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

1шт.

8

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

1шт.

9

REF

INSTRUCTION

Solenoid, Two Speed, See Page(s) 6-53

1шт.

10

REF

INSTRUCTION

Solenoid, Brake, See Page(s) 6-47

1шт.

11

REF

INSTRUCTION

Switch, Pressure, Backup Alarm, See Page(s) 4-45, 6-37

1шт.
