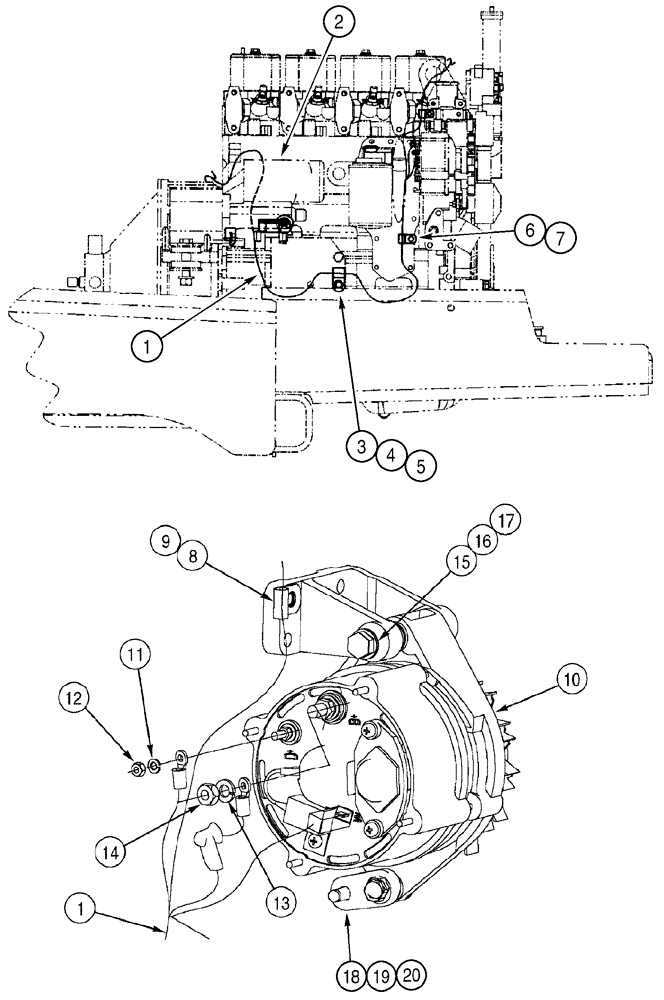

Запчасти Case 650H (04-10) - HARNESS, FRONT ALTERNATOR - ENGINE RIGHT HAND SIDE AND ALTERNATOR MOUNTING (04) - ELECTRICAL SYSTEMS

*

Engine Right Hand Side and Alternator Mounting

1шт.

1

338943A1

HARNESS

Front

1шт.

2

1987559C1

STARTING MOTOR

See Page(s) 4-3, 4-5

1шт.

2

86982709R

REMAN-STARTER,12V, 2.5kW

Reman for New PN 1987559C1

1шт.

2

86982709C

CORE-STARTER,12V, 2.5kW

Return Part Number

1шт.

2

104452A2R

REMAN-STARTER

Remanufactured Starter 12 volt, 2.5KW

1шт.

2

104452A1C

CORE-STARTER

Return Part Number, Starter 12 volt, 2.5KW

1шт.

3

515-25190

CLAMP,3/4", Insul, 1/2" Bolt

1шт.

4

614-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

1шт.

5

892-11012

LOCK WASHER,M12

1шт.

6

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

1шт.

7

845-8035

BOLT,Hvy Hex, M8 x 35mm, Cl 8.8

1шт.

8

515-2295

CLAMP,3/8", Insul, 5/16" Bolt

1шт.

9

845-8025

BOLT,Hex Flg, M8 x 25mm, Cl 8.8

1шт.

10

A187873

ALTERNATOR,12V, 65A

12V, 65 amp, Models Without Air Conditioning, See Page(s) 4-7, 4-9

1шт.

10

A187623

ALTERNATOR

12V, 95 amp, Models With Air Conditioning, See Page(s) 4-11, 4-13

1шт.

10

A187623GV

ALTERNATOR

Value, 12V, 95 Amp, Models With Air Conditioning

1шт.

11

892-11005

LOCK WASHER,M5

1шт.

12

824-1405

NUT,M5, Cl 5

1шт.

13

892-11008

LOCK WASHER,8mm ID

1шт.

14

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

1шт.

15

J902469

SPACER

1шт.

16

814-10100

BOLT,Hex, M10 x 1.5 x 100mm, Cl 8.8

1шт.

18

J903089

SUPPORT

1шт.

19

855-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 10.9

2шт.

20

A140282

WASHER,9.78mm ID x 19.66mm OD x 0.81mm Thk

1шт.

17

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

11 x 21 x 2 mm

1шт.
