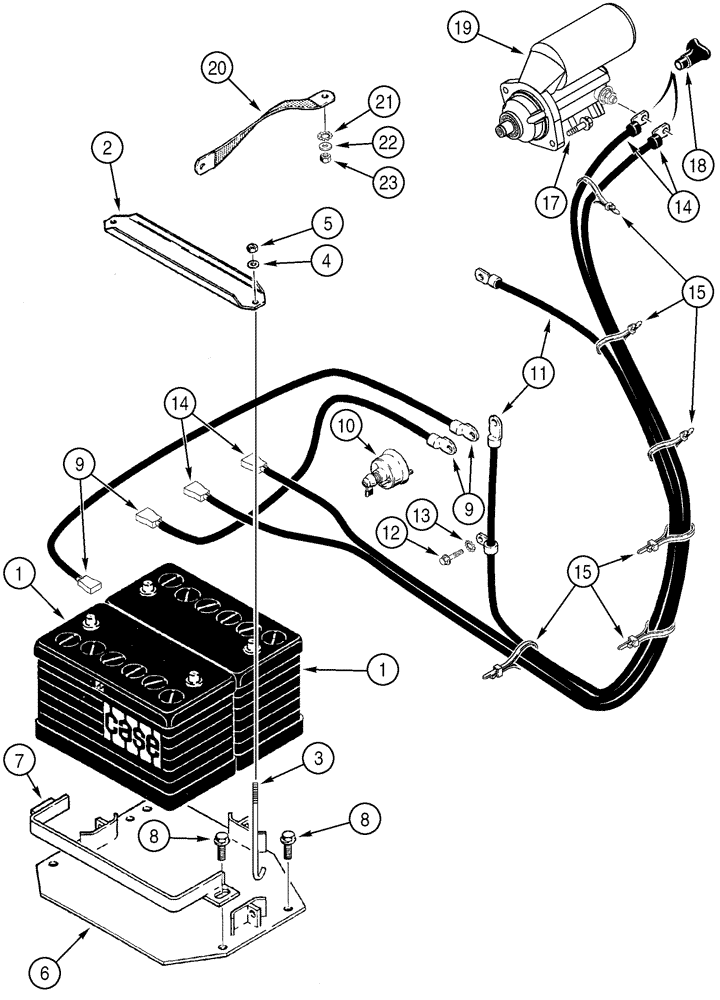

Запчасти Case 650H (04-05) - BATTERY AND BATTERY CABLES STARTER- MODELS WITH DUAL BATTERIES (04) - ELECTRICAL SYSTEMS

*

Models With Dual Batteries

1шт.

1

BMF31E

DRY BATTERY

12V

2шт.

2

R46490

BRACKET

1шт.

3

R27652

ROD

With Grab Handle

2шт.

4

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 3/32")

2шт.

5

231-1445

NUT,5/16"-18, GB

2шт.

6

R51652

SUPPORT

1шт.

7

R51654

SUPPORT

Rear

1шт.

8

160-107

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8, Full Thd

2шт.

9

R47204

NEG BATTERY CABLE

Negative

2шт.

10

R52278

SWITCH

Without Grab Handle

1шт.

11

R58075

CABLE

Battery - Ground, Includes Clamp

1шт.

12

160-101

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

3/8 x 3/4; 8

1шт.

13

493-11039

LOCK WASHER,3/8", Int-Ext Tooth

1шт.

14

R57564

CABLE

Positive, Includes Conduit

2шт.

15

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

1шт.

17

R54620

BOLT,Hex, Flange, M10 x 35mm CL 10.9

1шт.

18

L126713

BOOT

1шт.

19

1987559C1

STARTING MOTOR

See Page(s) 4-3, 4-5

1шт.

19

86982709R

REMAN-STARTER,12V, 2.5kW

Reman for New PN 1987559C1

1шт.

19

86982709C

CORE-STARTER,12V, 2.5kW

Return Part Number

1шт.

19

104452A2R

REMAN-STARTER

Remanufactured Starter, 12 volt, 2.5KW

1шт.

19

104452A1C

CORE-STARTER

Return Part Number, Starter 12 volt, 2.5KW

1шт.

20

D73383

STRAP

To Control Valve Inlet Port

1шт.

21

493-11039

LOCK WASHER,3/8", Int-Ext Tooth

1шт.

22

L127554

WASHER,0.395" ID x 0.875" OD x 0.064" Thk

1шт.

23

L127555

NUT,Hex, 3/8" - 16

3/8

1шт.
