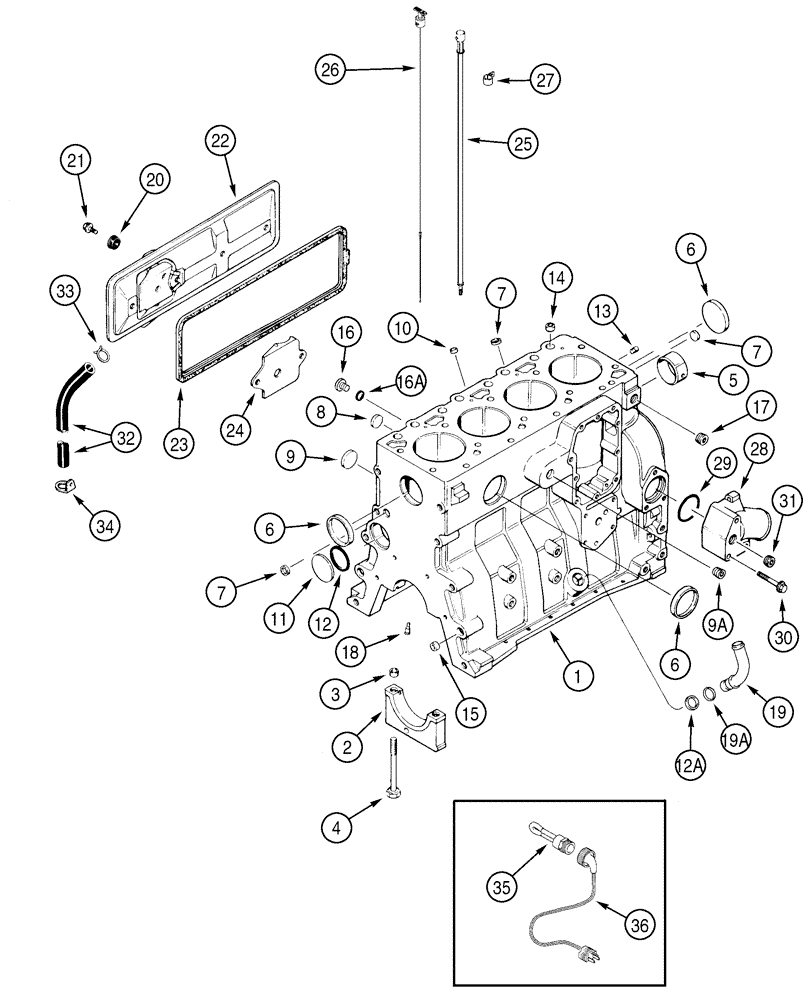

Запчасти Case 650H (02-18) - CYLINDER BLOCK (02) - ENGINE

*

4T-390 Emissions Certified Engine

1шт.

348713A1

Complete Engine, Less, Starter, Alternator, Fan, Fan Belt, Air Cleaner, Muffler and Exhaust Pipe, Order 234277A2

1шт.

*

4T-390 Emissions Certified Engine

1шт.

*

234277A2

BASIC ENGINE

1шт.

*

234277A2R

REMAN-BASIC ENGINE

1шт.

*

234277A2C

CORE-BASIC ENGINE

Return Number

1шт.

*

J933648

SHORT ENGINE

Short, With: Stripped Block, Pistons, Connecting Rods and Bearings, Crankshaft and Bearings, Consists Of 1 - 8

1шт.

*

JR933648

REMAN-SHORT ENGINE

Stripped Block, Pistons, Connecting Rods and Bearings, Crankshaft and Bearings

1шт.

*

JC933648

CORE-SHORT ENGINE

Return Number

1шт.

1

87444172

BLOCK ASSY.

Stripped, Consists Of 2 - 8, Order J933220

1шт.

2

J903492

BEARING CAP

Includes J900068

5шт.

3

J900068

BEARING WASHER

18 mm OD

10шт.

4

J927948

BOLT,Flng, MJ12 x 1.5H6H x 119mm, Cl 12.9

10шт.

5

REF

INSTRUCTION

Bushing, Front, See Page(s) 2-53

1шт.

6

A77782

PLUG

58 mm

1шт.

7

J900956

PLUG

18 mm OD

3шт.

8

41-1616

PLUG,Cup, 1", Stainless

2шт.

*

J933220

PACKAGE,SERVICE

Consists Of 9 - 18

1шт.

9

J900958

PLUG

32 mm OD

2шт.

9a

A77505

PLUG

3/4 PT

1шт.

10

J900955

PLUG

10 mm OD

3шт.

*

4T-390 Emissions Certified Engine

1шт.

*

Continued From Previous Page

1шт.

11

172599

PLUG,Exp, 2 3/8"

60 mm OD, Includes 12

1шт.

12

J926047

O-RING,0.07" Thk x 2.239" ID

57 mm ID

1шт.

12a

J920706

PLUG

22 mm, Not Used In This Application

1шт.

13

J900257

PIN,10.01mm OD x 16mm L

16 mm

2шт.

14

J902343

DOWEL

16 mm OD

2шт.

15

J900068

BEARING WASHER

18 mm OD

2шт.

16

J678923

PLUG,M10 x 1

10 mm, Includes 16A

3шт.

16a

637-72081

O-RING,1.6mm Thk x 8.1mm ID, Cl 7, 75 Duro

1шт.

17

A77429

PLUG

1/2 PT

1шт.

17a

J678921

PLUG

14 mm, Not Used In This Application, Includes 17B, Not Illustrated

1шт.

17b

J678912

O-RING,2.2mm Thk x 11.3mm ID

1шт.

17c

J932296

PLUG

Not Used In This Application, Includes 17D, Not Illustrated

1шт.

17d

J330478

O-RING,0.07" Thk x 0.676" ID

1шт.

17e

844-8016

BOLT,Hex, M8 x 16mm, Cl 8.8

Not Used In This Application, Not Illustrated

1шт.

18

J930139

NOZZLE CAP

4шт.

19

J931973

TUBE,0.875" OD

Used With 19A

1шт.

19a

J931824

O-RING,0.07" Thk x 0.739" ID, -18, Cl 7, 75 Duro

1шт.

*

4T-390 Emissions Certified Engine

1шт.

*

Continued From Previous Page

1шт.

20

J900267

SEAL

4шт.

21

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

2шт.

22

J925680

COVER

1шт.

23

J283767

GASKET,7.4mm Thk

1шт.

24

J907586

BAFFLE

1шт.

25

319805A2

TUBE,12.7 mm OD, 907.5 mm Length

1шт.

26

319806A2

DIPSTICK

1шт.

27

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

1шт.

28

J934877

HYD CONNECTOR

1шт.

29

J906697

SEAL,Square, 5.16mm Thk x 50.17mm ID

50 mm ID

1шт.

30

854-10075

BOLT,Hvy Hex, M10 x 75mm, Cl 10.9

3шт.

31

A77429

PLUG

1/2 PT

2шт.

32

J918612

TUBE,360.00 mm

1шт.

33

J904230

CLAMP,25.4mm

1шт.

34

J928989

CLIP

Engine Block Heater

1шт.

*

120 Volt

1шт.

*

309651A1

KIT

120V, Consists Of 35, 36

1шт.

35

NSS

NOT SOLD SEPARAT

Element, Replaces A77505, See Page(s) 2-49

1шт.

36

196466A1

ELECTRIC CABLE

1829 mm (72 in)

1шт.

*

Note:Reference 25, 26, 27 are not included in the engine assembly, purchase separately.

1шт.

*

Nota: Les pièces 25, 26, 27 ne sont pas incluses avec le moteur. Les acheter séparément.

1шт.

*

Nota: Las referencias 25, 26, 27 no están incluídas en el conjunto del motor, comprar por separado.

1шт.

*

4T-390 Emissions Certified Engine

1шт.

*

Continued From Previous Page

1шт.

*

Engine Block Heater

1шт.

*

240 Volt

1шт.

*

309652A1

KIT

240V, Consists Of 35, 36

1шт.

35

NSS

NOT SOLD SEPARAT

Element, Replaces A77505, See Page(s) 2-47

1шт.

36

J905114

ELECTRIC CABLE

1829 mm (72 in)

1шт.

*

Repair Kit

1шт.

*

A77887

PACKAGE,SERVICE

Consists Of 37 - 44, Not Illustrated

1шт.

37

J802747

PISTON & RINGS KIT,100MM PISTON DIAMETER

See Page(s) 2-65

4шт.

38

J919053

PISTON PIN

See page(s) 2-65

4шт.

39

A77465

BEARING SET

See Page(s) 2-69

4шт.

40

A77405

CRANKSHAFT BEARING

See Page(s) 2-57

4шт.

*

4T-390 Emissions Certified Engine

1шт.

*

Continued From Previous Page

1шт.

*

Repair Kit

1шт.

41

A77896

BEARING SET

See Page(s) 2-59

1шт.

42

A77870

SEAL PACKAGE

See Page(s) 2-71

1шт.

43

J283333

CYLINDER HEAD GASKET,2.32mm Thk

See Page(s) 2-37

1шт.

44

A77673

GASKET KIT

See Page(s) 2-33

1шт.
