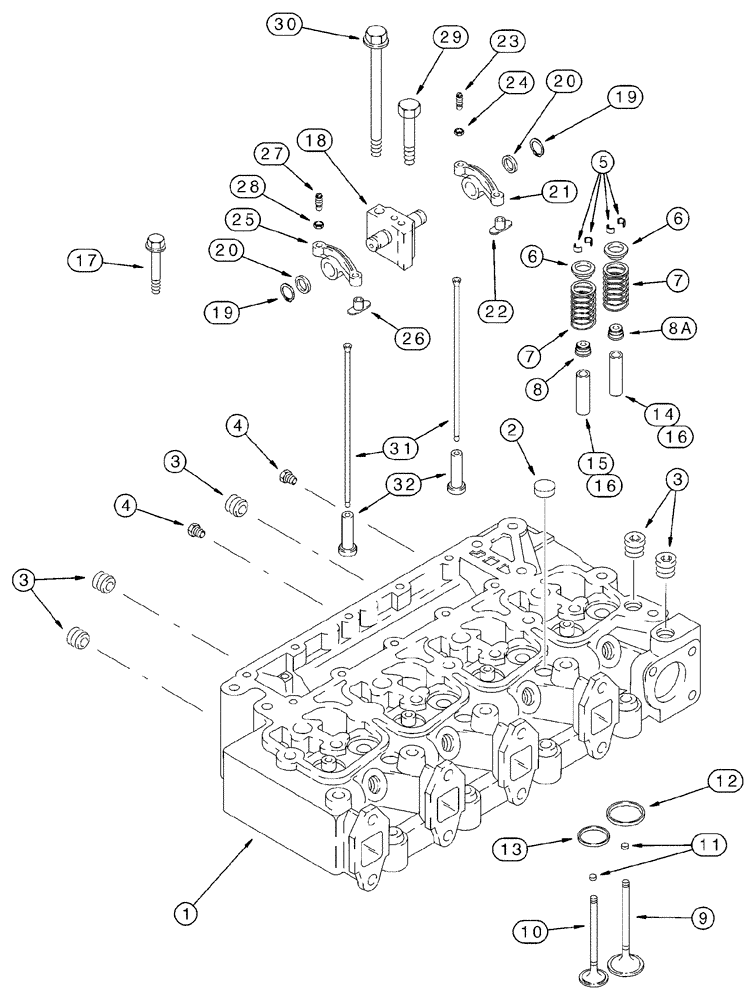

Запчасти Case 650H (02-16) - CYLINDER HEAD VALVE MECHANISM, 4T-390 EMISSIONS CERTIFIED ENGINE (02) - ENGINE

4T-390 Emissions Certified Engine

1шт.

JR927330

REMAN-CYLINDER HEAD

Remanufactured, North America Only

1шт.

JC927330

CORE-CYLINDER HEAD

1шт.

J927330

HEAD (CYLINDER)

Consists Of 1 - 10

1шт.

1

J933422

HEAD (CYLINDER)

Consists Of 2

1шт.

2

A77783

PLUG

21 mm OD

3шт.

3

217-466

DRAIN PLUG,Sq Soc, 1/2" - 14, NTPF

5шт.

4

J906619

PLUG,1/8" - 27

1/8 PT

2шт.

5

CASJ900250

RETAINER

16шт.

6

J935038

RETAINER

8шт.

7

J926700

VALVE SPRING

8шт.

8

J921640

SEAL

4шт.

8a

J921640

SEAL

4шт.

9

J920867

VALVE

4шт.

10

J920868

VALVE

4шт.

11

J280911

WEAR PAD

Intake And Exhaust, Service Repair Only

1шт.

12

J906854

SEAT, VALVE

Intake, Service Repair Only

4шт.

13

J904105

SEAT, VALVE

Exhaust, Service Repair Only

4шт.

4T-390 Emissions Certified Engine

1шт.

14

J904408

GUIDE

14 mm OD, Intake, Service Repair Only, Ream To Fit

4шт.

15

J904409

GUIDE

14 mm OD, Exhaust, Service Repair Only, Ream To Fit

4шт.

16

J906206

GUIDE

11 mm OD, Intake And Exhaust, Service Repair Only, Ream To Fit

8шт.

17

J920779

BOLT,Flng, M12 x 1.75 x 70mm, Cl 12.9

70 mm

4шт.

17

J920780

BOLT,Flng, M12 x 1.75 x 120mm, Cl 12.9

120 mm

10шт.

18

J922488

SUPPORT

4шт.

19

J900242

SNAP RING

8шт.

20

J900245

WASHER

8шт.

21

J910811

ROCKER

Consists Of 22 - 24

4шт.

22

NSS

NOT SOLD SEPARAT

Insert

1шт.

23

J937438

ADJUSTMENT SCREW,Hex Skt, 3/8" - 24 x 33mm, Adj, Ball Point

1шт.

24

A77902

NUT

3/8 - 24 NF

1шт.

25

J910810

ROCKER

Consists Of 26 - 28

4шт.

26

NSS

NOT SOLD SEPARAT

Insert

1шт.

27

J937438

ADJUSTMENT SCREW,Hex Skt, 3/8" - 24 x 33mm, Adj, Ball Point

1шт.

28

A77902

NUT

3/8 - 24 NF

1шт.

29

J901221

BOLT

M8 x 75

4шт.

30

J920781

BOLT,Flng, M12 x 1.75 x 180mm, Cl 12.9

180 mm

4шт.

31

J284377

PUSH ROD

8шт.

32

J931623

TAPPET

8шт.
