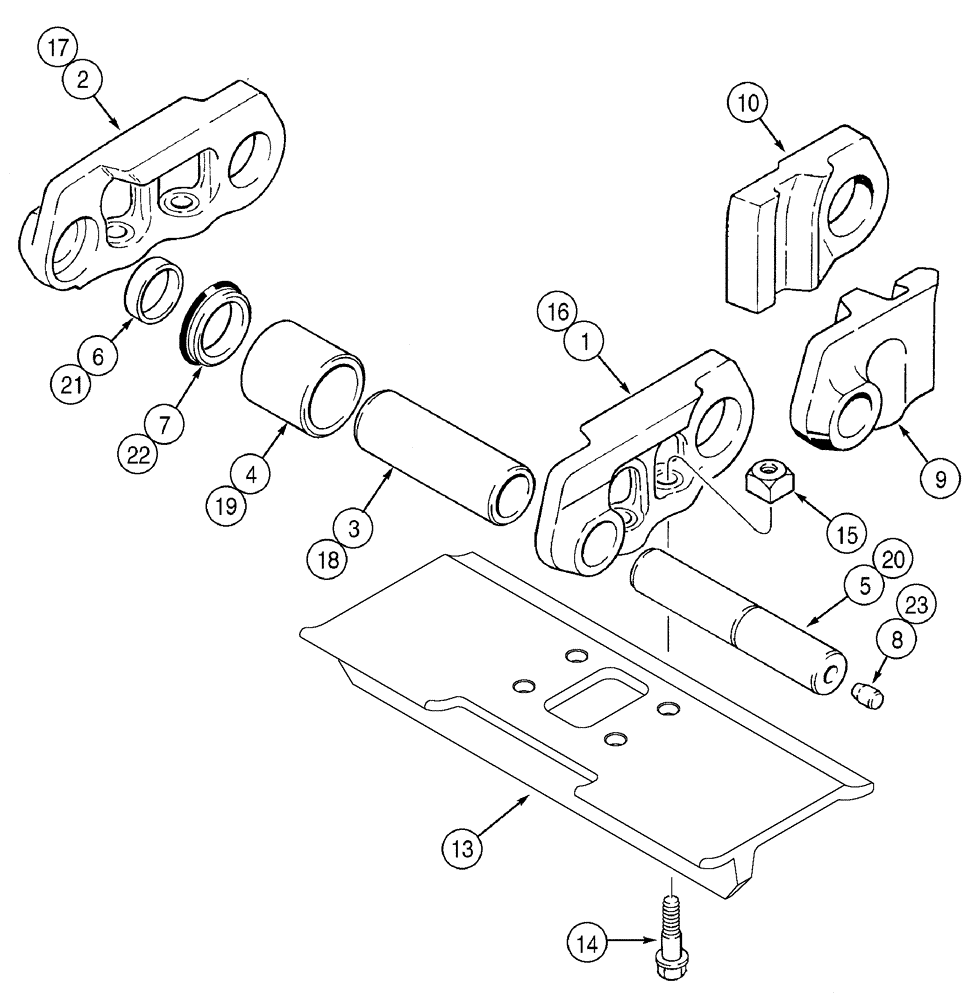

Запчасти Case 650H (05-11) - TRACK CHAIN, EXTENDED LIFE - EACH MASTER LINK HAS ONE BOLT HOLE (11) - TRACKS/STEERING
№
Артикул
Название
Примечание
Количество
Each Master Link Has One Bolt Hole
1шт.
295200A1
CHAIN (CE)
Track, Extended Life, Consists Of 1 - 12
2шт.
1
295178A1
LINK
Right Hand
35шт.
2
295177A1
LINK
Left Hand
35шт.
3
114402A1
BUSHING,33.8mm ID x 53.82mm OD x 109.5mm L
54mm (2-1/8 in) OD
36шт.
4
323875A1
BUSHING,54.44mm ID x 76.2mm OD x 59mm L
36шт.
5
R51131
PIN,33.48mm OD x 183.5mm L
36шт.
6
R51132
SPACER
72шт.
7
R50830
OIL SEAL
72шт.
8
R50441
PLUG
36шт.
295174A1
Master, Right Hand, Consists Of 9, 10, For Service Order 299234A1, 299237A1, See Page(s) 5-41, 5-43
1шт.
9
NSS
NOT SOLD SEPARAT
Link, Fits Over Track Pin on Outside of Regular Track Link
1шт.
10
NSS
NOT SOLD SEPARAT
Link, Fits Over Bushing on Inside of Regular Track Link
1шт.
Each Master Link Has One Bolt Hole
1шт.
295173A1
Master, Left Hand, Consists Of 11, 12, For Service Order 299234A1, 299237A1, See Page(s) 5-41, 5-43
1шт.
11
NSS
NOT SOLD SEPARAT
Link, Fits Over Track Pin on Outside of Regular Track Link, Not Illustrated
1шт.
12
NSS
NOT SOLD SEPARAT
Link, Fits Over Bushing on Inside of Regular Track Link, Not Illustrated
1шт.
13
328940A1
TRACK SHOE
406 mm (16 in)
72шт.
13
328944A1
TRACK SHOE
559 mm (22 in)
72шт.
13
379671A1
TRACK SHOE
635 mm (25 in)
72шт.
14
295318A1
BOLT,Hex, 5/8" - 18 x 2 1/8"
5/8 NF x 2-1/8
288шт.
15
R25688
SQUARE NUT
5/8 NF, Not Used on Master Link Bolts
280шт.
15a
345-140
SEALANT
No. 847, 1 Pint, For Link Pin Bores, Not Illustrated
1шт.
Chain Unit Kit
1шт.
304484A1
KIT
Includes Instructions, Consists Of 16 - 23
1шт.
16
295178A1
LINK
Right Hand
1шт.
17
295177A1
LINK
Left Hand
1шт.
18
114402A1
BUSHING,33.8mm ID x 53.82mm OD x 109.5mm L
54mm (2-1/8 in) OD
1шт.
19
323875A1
BUSHING,54.44mm ID x 76.2mm OD x 59mm L
1шт.
20
R51131
PIN,33.48mm OD x 183.5mm L
2шт.
21
R51132
SPACER
4шт.
22
R50830
OIL SEAL
4шт.
23
R50441
PLUG
2шт.
