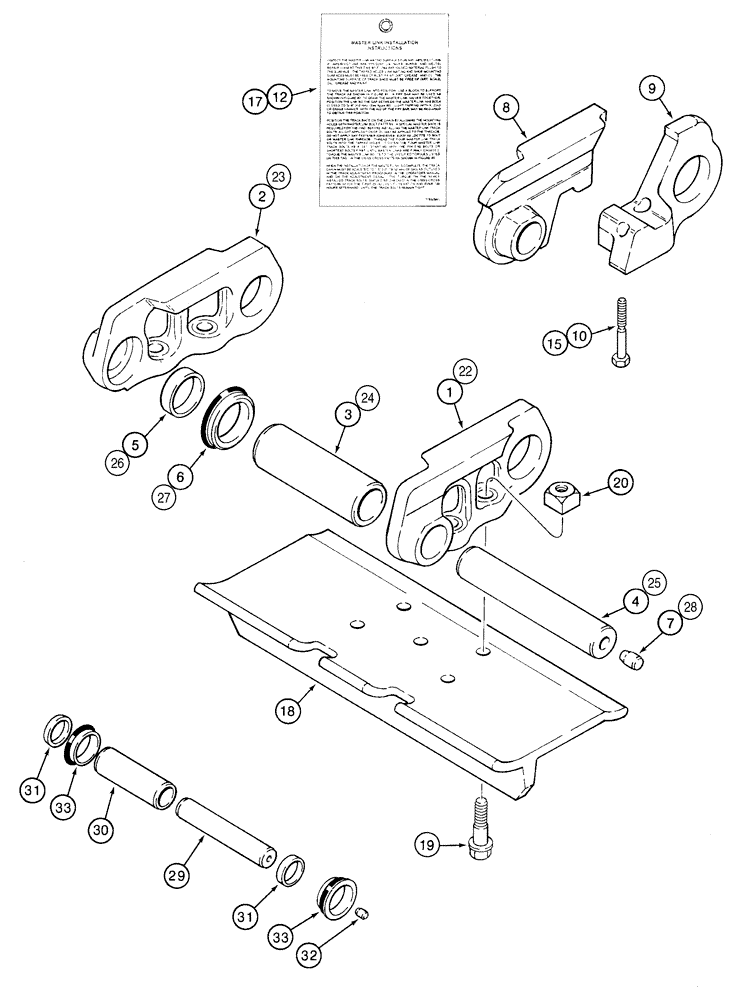

Запчасти Case 650H (05-10) - TRACK CHAIN, CASE LUBRICATED - EACH MASTER LINK HAS TWO BOLT HOLES (11) - TRACKS/STEERING

Each Master Link Has Two Bolt Holes

1шт.

295203A1

CHAIN (CE)

Track, Consists Of 1 - 17

2шт.

1

295178A1

LINK

Right Hand

35шт.

2

295177A1

LINK

Left Hand

35шт.

3

R56515

BUSHING,33.8mm ID x 56.9mm OD x 109.5mm L

57 mm (2-1/4 in) OD

36шт.

4

R51131

PIN,33.48mm OD x 183.5mm L

36шт.

5

R51132

SPACER

72шт.

6

R50830

OIL SEAL

72шт.

7

R50441

PLUG

36шт.

299237A1

KIT

Master Link, Right Hand, Consists Of 8 - 12

1шт.

NSS

NOT SOLD SEPARAT

Link Assy, Master, Right Hand, Consists Of 8, 9

1шт.

8

NSS

NOT SOLD SEPARAT

Link, Fits Over Track Pin on Outside of Regular Track Link

1шт.

9

NSS

NOT SOLD SEPARAT

Link, Fits Over Bushing on Inside of Regular Track Link

1шт.

10

295325A1

BOLT,Hex, 5/8" - 18 x 3 1/4"

5/8 NF x 3-1/4

2шт.

12

178328A3

TAG

Installation Instructions

1шт.

Each Master Link Has Two Bolt Holes

1шт.

299234A1

KIT

Master Link, Left Hand, Consists Of 13 - 17

1шт.

NSS

NOT SOLD SEPARAT

Link Assy, Master, Left Hand, Consists Of 13, 14

1шт.

13

NSS

NOT SOLD SEPARAT

Link, Fits Over Track Pin on Outside of Regular Track Link, Not Illustrated

1шт.

14

NSS

NOT SOLD SEPARAT

Link, Fits Over Bushing on Inside of Regular Track Link, Not Illustrated

1шт.

15

295325A1

BOLT,Hex, 5/8" - 18 x 3 1/4"

5/8 NF x 3-1/4

2шт.

17

178328A3

TAG

Installation Instructions

1шт.

18

295180A1

SHOE

406 mm (16 in)

72шт.

18

300200A1

SHOE

559 mm (22 in)

72шт.

18

379670A1

TRACK SHOE

635 mm (25 in)

72шт.

19

295318A1

BOLT,Hex, 5/8" - 18 x 2 1/8"

5/8 NF x 2-1/8

280шт.

20

R25688

SQUARE NUT

5/8 NF, Not Used on Master Link Bolts

280шт.

Chain Unit Kit

1шт.

300215A1

KIT

Includes Instructions, Consists Of 22 - 28

1шт.

302847A1

LINK ASSY.

Consists Of 22 - 24

1шт.

22

295178A1

LINK

Right Hand

1шт.

23

295177A1

LINK

Left Hand

1шт.

24

R56515

BUSHING,33.8mm ID x 56.9mm OD x 109.5mm L

57 mm (2-1/4 in) OD

1шт.

25

R51131

PIN,33.48mm OD x 183.5mm L

2шт.

26

R51132

SPACER

4шт.

27

R50830

OIL SEAL

4шт.

28

R50441

PLUG

Pin and Bushing Kit

2шт.

Services Complete Track Chain for Both Sides of Tractor

1шт.

R56024

SET

Pin and Bushing, Includes Instructions, Consists Of 29 - 34

1шт.

29

R51131

PIN,33.48mm OD x 183.5mm L

76шт.

30

R56515

BUSHING,33.8mm ID x 56.9mm OD x 109.5mm L

57 mm (2-1/4 in) OD

76шт.

31

R51132

SPACER

152шт.

32

R50441

PLUG

76шт.

33

R50830

OIL SEAL

152шт.

34

345-140

SEALANT

No. 847, 1 Pint, For Link Pin Bores, Not Illustrated

1шт.
