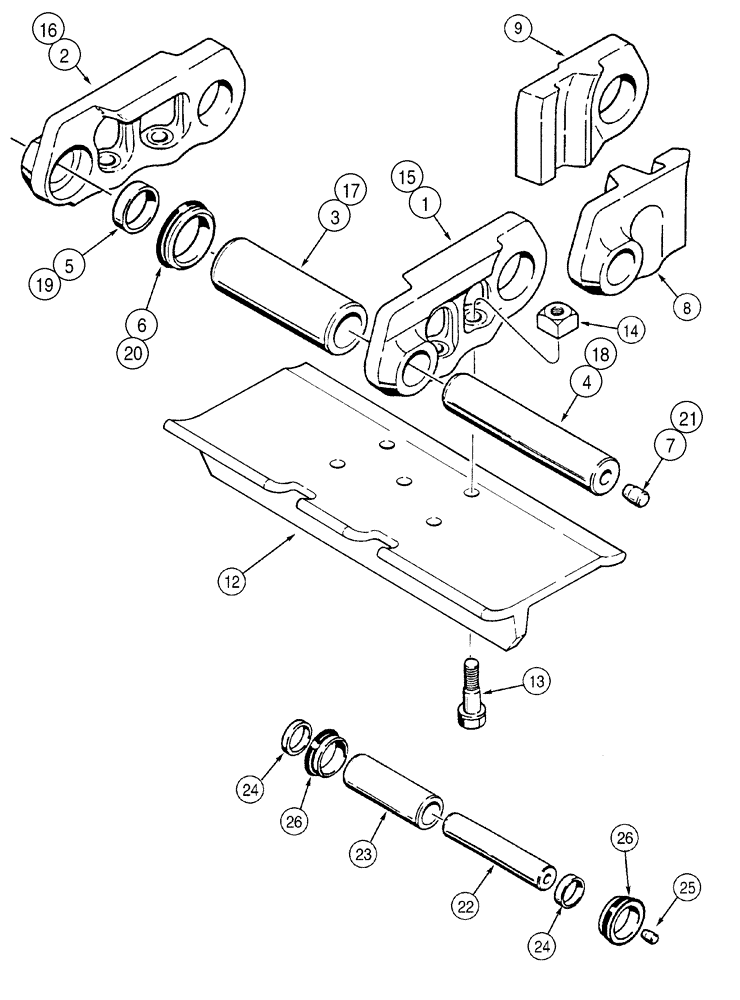

Запчасти Case 650H (05-09) - TRACK CHAIN, CASE LUBRICATED - EACH MASTER LINK HAS ONE BOLT HOLE (11) - TRACKS/STEERING
№
Артикул
Название
Примечание
Количество
Each Master Link Has One Bolt Hole
1шт.
295196A1
CHAIN (CE)
Track, Case Lubricated, Consists Of 1 - 11
2шт.
1
295178A1
LINK
Right Hand
35шт.
2
295177A1
LINK
Left Hand
35шт.
3
R56515
BUSHING,33.8mm ID x 56.9mm OD x 109.5mm L
57 mm (2-1/4 in) OD
36шт.
4
R51131
PIN,33.48mm OD x 183.5mm L
36шт.
5
R51132
SPACER
72шт.
6
R50830
OIL SEAL
72шт.
7
R50441
PLUG
36шт.
295174A1
Master, Right Hand, Consists Of 8, 9, For Service Order, 299234A1, 299237A1, See Page(s) 5-29, 5-31
1шт.
8
NSS
NOT SOLD SEPARAT
Link, Fits Over Track Pin on Outside of Regular Track Link
1шт.
9
NSS
NOT SOLD SEPARAT
Link, Fits Over Bushing on Inside of Regular Track Link
1шт.
295173A1
Master, Left Hand, Consists Of 10, 11, For Service Order, 299234A1, 299237A1, See Page(s) 5-29, 5-31
1шт.
295173A1
Continued From Previous Page
1шт.
10
NSS
NOT SOLD SEPARAT
Link, Fits Over Track Pin on Outside of Regular Track Link, Not Illustrated
1шт.
11
NSS
NOT SOLD SEPARAT
Link, Fits Over Bushing on Inside of Regular Track Link, Not Illustrated
1шт.
12
295180A1
SHOE
406 mm (16 in)
72шт.
12
300200A1
SHOE
559 mm (22 in)
72шт.
12
379670A1
TRACK SHOE
635 mm (25 in)
72шт.
13
295318A1
BOLT,Hex, 5/8" - 18 x 2 1/8"
5/8 NF x 2-1/8
288шт.
14
R25688
SQUARE NUT
5/8 NF, Not Used on Master Link Bolts
280шт.
Chain Unit Kit
1шт.
300215A1
KIT
Includes Instructions, Consists Of 15 - 21
1шт.
302847A1
LINK ASSY.
Consists Of 15 - 17
1шт.
15
295178A1
LINK
Right Hand
1шт.
16
295177A1
LINK
Left Hand
1шт.
17
R56515
BUSHING,33.8mm ID x 56.9mm OD x 109.5mm L
57 mm (2-1/4 in) OD
1шт.
18
R51131
PIN,33.48mm OD x 183.5mm L
2шт.
19
R51132
SPACER
4шт.
20
R50830
OIL SEAL
4шт.
21
R50441
PLUG
2шт.
Pin and Bushing Kit
1шт.
Services Complete Track Chain for Both Sides of Tractor
1шт.
R56024
SET
Pin and Bushing, Includes Instructions, Consists Of 22 - 27
1шт.
22
R51131
PIN,33.48mm OD x 183.5mm L
76шт.
23
R56515
BUSHING,33.8mm ID x 56.9mm OD x 109.5mm L
57 mm (2-1/4 in) OD
76шт.
24
R51132
SPACER
152шт.
25
R50441
PLUG
76шт.
26
R50830
OIL SEAL
152шт.
27
345-140
SEALANT
No. 847, 1 Pint, For Link Pin Bores, Not Illustrated
1шт.
Выбрано товаров: 40
