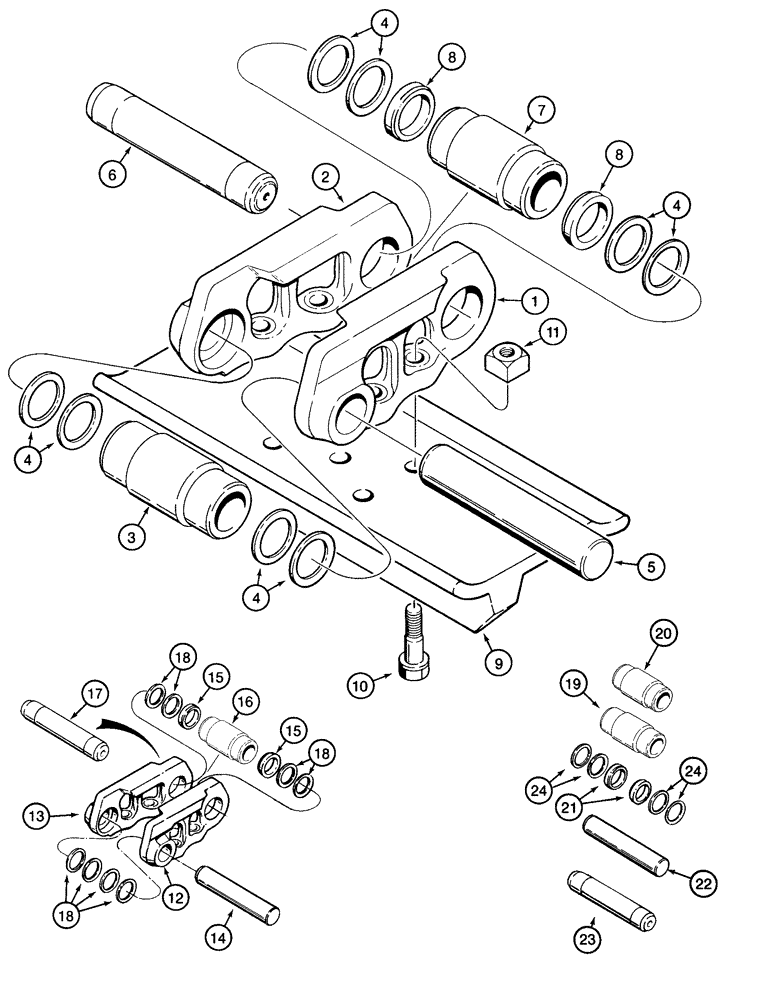

Запчасти Case 650H (05-08) - TRACK CHAIN, SEALED (11) - TRACKS/STEERING

298859A1

ASSEMBLY

Track, Includes Closed Shoes, Consists Of 1 - 9, 10, 11

2шт.

300216A1

ASSEMBLY

Track, Includes Open Shoes, Consists Of 1 - 8, 9A - 11

2шт.

300211A1

CHAIN (CE)

Track, Consists Of 1 - 8

2шт.

1

295178A1

LINK

Right Hand

36шт.

2

295177A1

LINK

Left Hand

36шт.

3

R56517

BUSHING

123,5 mm (4-7/8 in) OD, Link

35шт.

4

R50211

WASHER

144шт.

5

R49792

PIN,33.48mm OD x 183.5mm L

183 x 33 mm

35шт.

6

R54349

PIN,33.04mm OD x 183.5mm L

Master Link

1шт.

7

R56516

BUSHING,33.8mm ID x 56.9mm OD x 107.6mm L

108 mm (4-1/4 in) OD, Master Link

1шт.

8

R50210

SPACER

2шт.

9

295181A1

TRACK SHOE

457 mm (18 in), Closed, Component of 298859A1

36шт.

9a

303471A1

TRACK SHOE

457 mm (18 in), Open, Component of 300216A1

36шт.

10

295318A1

BOLT,Hex, 5/8" - 18 x 2 1/8"

5/8 NF x 2-1/8

144шт.

11

R25688

SQUARE NUT

5/8 NF

144шт.

Chain Unit Kit

1шт.

300214A1

KIT

Includes Instructions, Consists Of 12 - 18

1шт.

12

295178A1

LINK

Right Hand

1шт.

13

295177A1

LINK

Left Hand

1шт.

14

R49792

PIN,33.48mm OD x 183.5mm L

183 x 33 mm

2шт.

15

R50210

SPACER

2шт.

16

R56516

BUSHING,33.8mm ID x 56.9mm OD x 107.6mm L

108 mm (4-1/4 in) OD, Master Link

1шт.

17

R54281

PIN,33.41mm OD x 183.5mm L

Master Link

1шт.

18

R50211

WASHER

Pin and Bushing Kit

8шт.

Services Complete Track Chain for Both Sides of Tractor

1шт.

R56023

KIT

Pin and Bushing, Consists Of 19 - 24

1шт.

19

R56517

BUSHING

123,5 mm (4-7/8 in) OD, Standard Pin

74шт.

20

R56516

BUSHING,33.8mm ID x 56.9mm OD x 107.6mm L

108 mm (4-1/4 in) OD, Master Pin

2шт.

21

R50210

SPACER

4шт.

22

R49792

PIN,33.48mm OD x 183.5mm L

183 x 33 mm, Standard

74шт.

23

R54281

PIN,33.41mm OD x 183.5mm L

Master Link

2шт.

24

R50211

WASHER

304шт.
