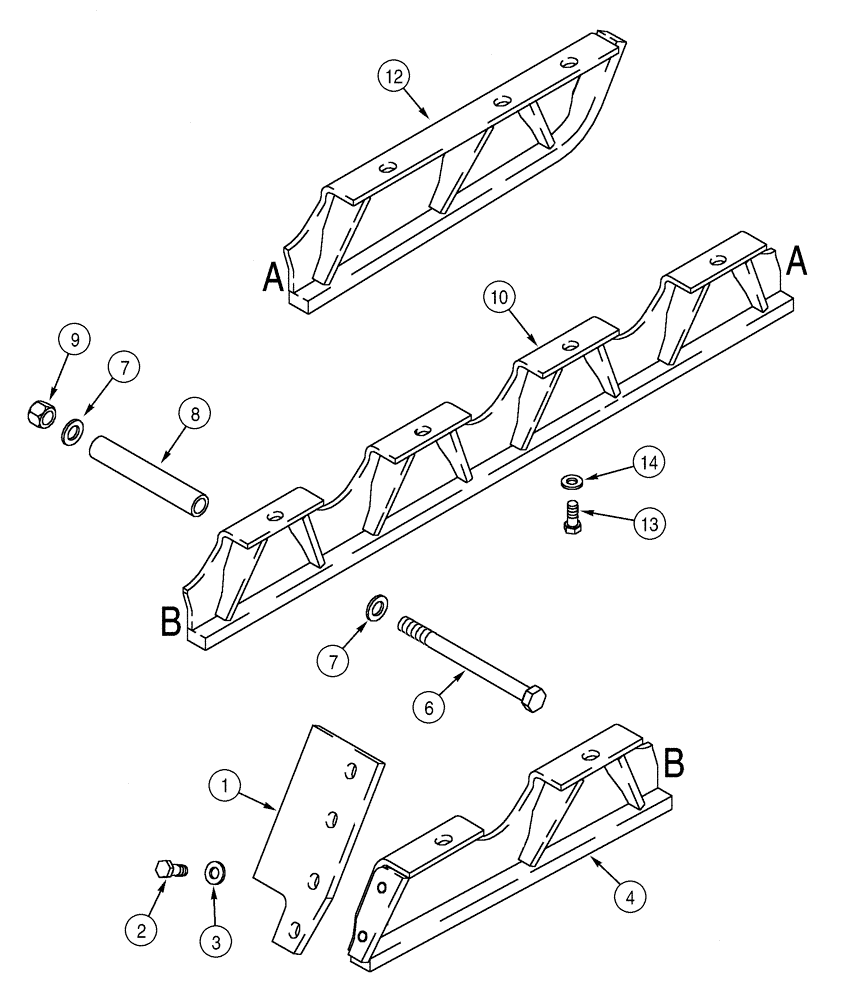

Запчасти Case 650H (05-07) - TRACK GUARDS (11) - TRACKS/STEERING

1

327708A1

GUARD

Sprocket, Rear

4шт.

2

106-9820

LOCK BOLT,Locking, 1/2"-13 x 1 1/4", G5, Full Thd

16шт.

3

496-21053

WASHER,17/32" x 1 1/16" x .134"

16шт.

4

327160A1

GUARD ASSY.

Left Hand Rear, Not Illustrated

2шт.

5

327161A1

GUARD ASSY.

Right Hand Rear

2шт.

6

413-12144

BOLT,Hex, 3/4" - 10 x 9", Gr 5

3/4 x 9

8шт.

7

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

16шт.

8

141188A1

SPACER

8шт.

9

231-41112

LOCK NUT,3/4"-10, GB

8шт.

10

327159A1

GUARD ASSY.

Center

4шт.

11

327157A1

GUARD

Left Hand Front, Not Illustrated

2шт.

12

327158A1

GUARD

Right Hand Front

2шт.

13

106-9820

LOCK BOLT,Locking, 1/2"-13 x 1 1/4", G5, Full Thd

36шт.

14

496-21053

WASHER,17/32" x 1 1/16" x .134"

36шт.
