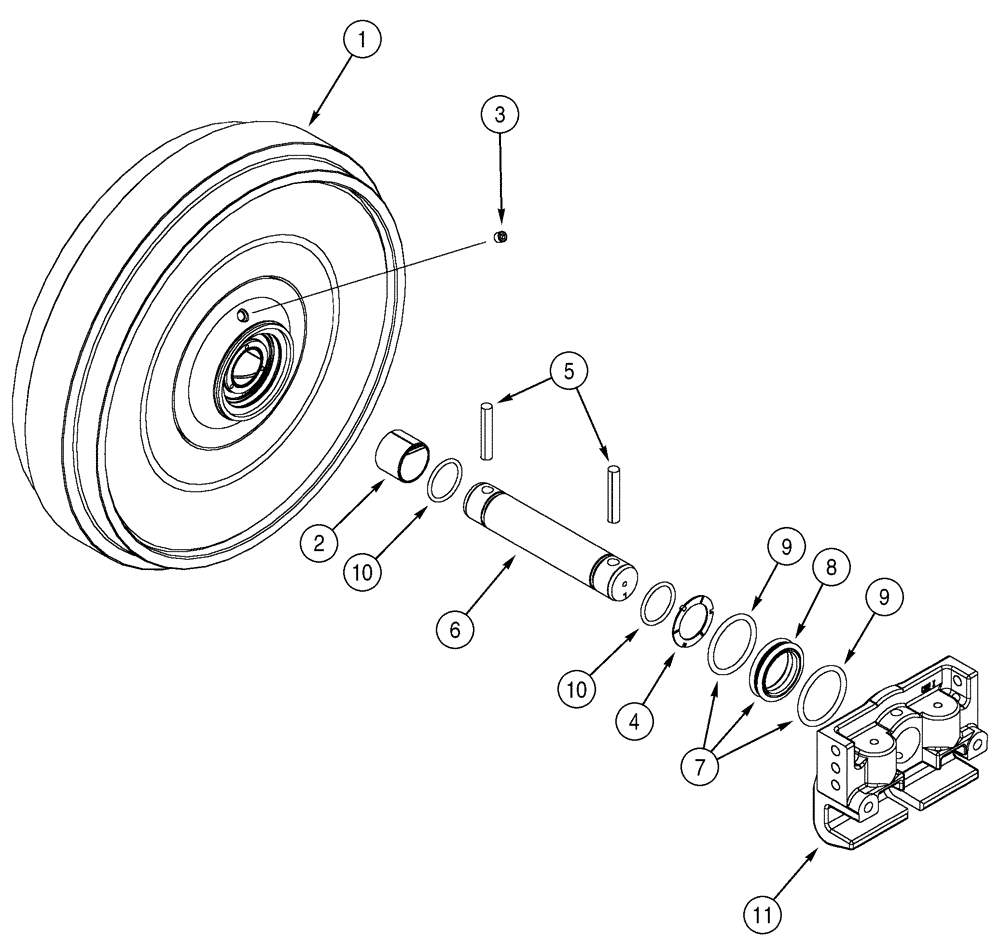

Запчасти Case 650H (05-05) - TRACK IDLER (11) - TRACKS/STEERING

329712A1

FRONT IDLER

Consists Of 1 - 11

2шт.

1

NSS

NOT SOLD SEPARAT

Hub, Order 329712A1, Includes 2

1шт.

2

R24542

BUSHING,44.51mm ID x 49.23mm OD x 38.1mm L

2шт.

3

R33557

PLUG

1шт.

4

D35266

THRUST WASHER,44.96mm ID x 63.5mm OD x 1.58mm Thk

2шт.

5

R58807

GROOVED PIN,1/2" x 2 3/4", Type A, Hardened

1/2" x 2 3/4", Type A, Hardened

2шт.

6

R58706

SHAFT

1шт.

7

R33607

SEAL

Consists Of 8, 9

2шт.

8

NSS

NOT SOLD SEPARAT

Seal, Order R33607

2шт.

9

NSS

NOT SOLD SEPARAT

O-Ring, Face Seal

2шт.

10

238-5222

O-RING,0.139" Thk x 1.48" ID, -222, Cl 5, 75 Duro

2шт.

11

329711A1

BRACKET

2шт.
