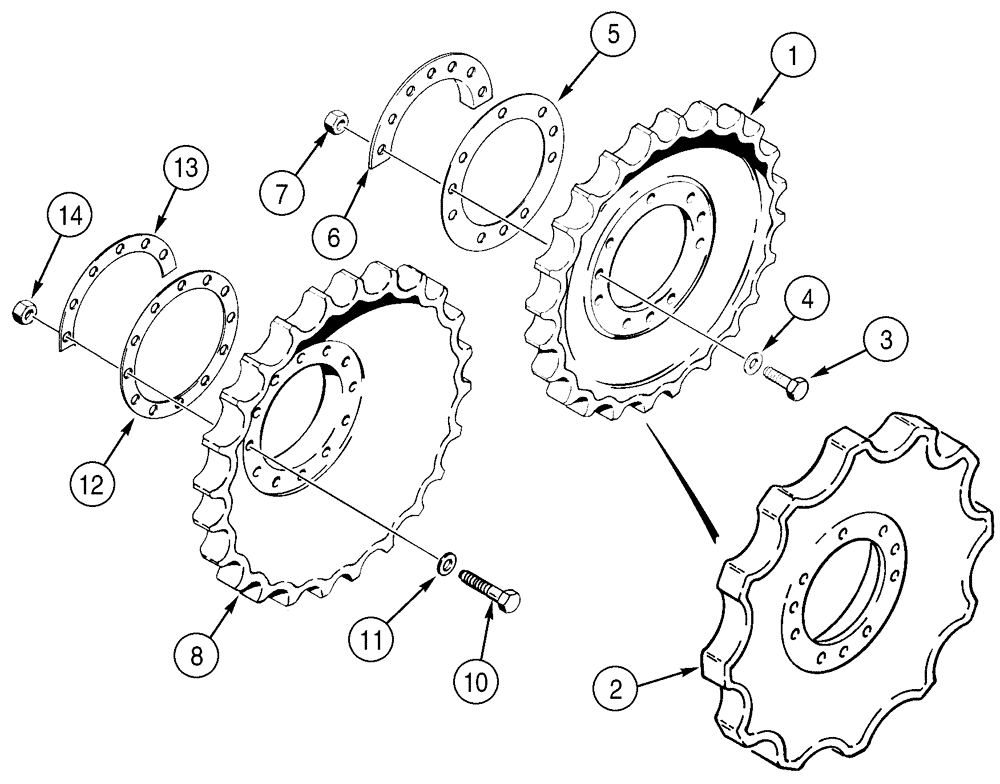

Запчасти Case 650H (05-02) - SPROCKET, TRACK (11) - TRACKS/STEERING

1448 mm (57 inch) Gauge Long Track (LT) Models

1шт.

1

322122A1

SPROCKET ASSY.

23T

2шт.

1

322018A1

SPROCKET ASSY.

23T, Relieved

2шт.

2

321681A1

SPROCKET ASSY.

12T, Used on Models With Extended Life Track Chain

2шт.

3

R27954

BOLT

3/4 x 3

20шт.

4

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

20шт.

5

R46160

SHIM,.032" Thk

1шт.

6

117702A1

GUARD

If Equipped

4шт.

7

29-1012

NUT,3/4"-10, G8

Use Loctite No. 242

20шт.

B17422

LOCTITE

Loctite, No. 242, 50 ml

1шт.

1702 mm (67 inch) Gauge Wide Track (WT) or Low Ground Pressure (LGP) Models

1шт.

8

328459A1

SPROCKET ASSY.

23T

2шт.

9

328453A1

SPROCKET ASSY.

12T, Used on Models With Extended Life Track Chain, Not Illustrated

2шт.

10

R31277

BOLT

3/4 x 4-1/4; 8

20шт.

11

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

20шт.

12

R46160

SHIM,.032" Thk

1шт.

13

117702A1

GUARD

If Equipped

4шт.

14

29-1012

NUT,3/4"-10, G8

Use Loctite No. 242

20шт.

B17422

LOCTITE

Loctite, No. 242, 50 ml

1шт.
