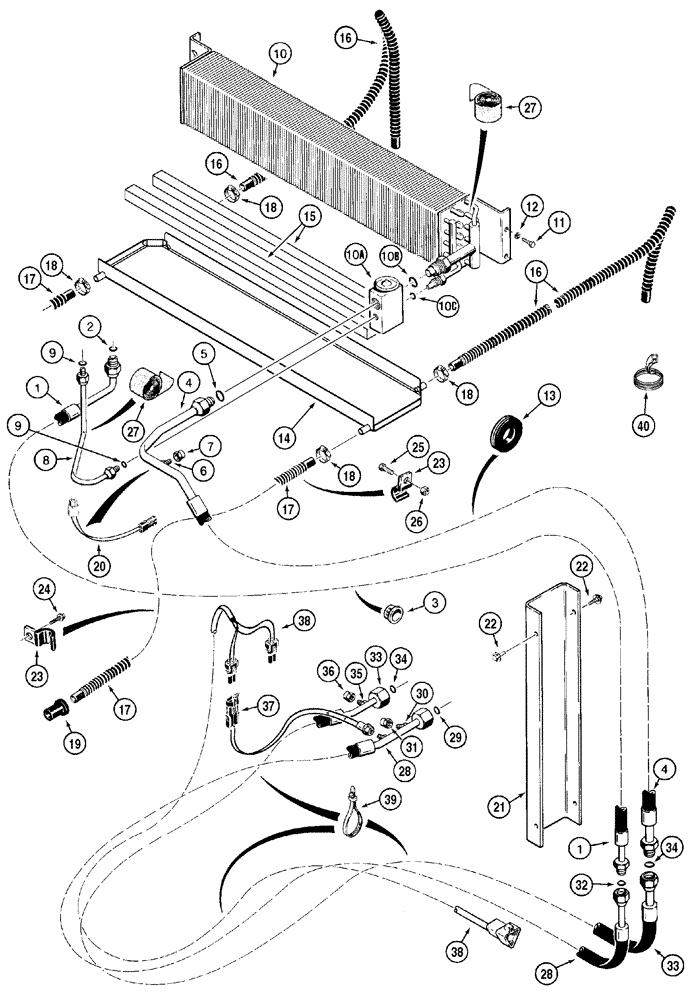

Запчасти Case 650H (09-35) - AIR CONDITIONING SYSTEM (09) - CHASSIS

Inside Cab Roof

1шт.

1

1975773C2

HOSE ASSY.

1840 mm (72-7/16 in), Attaches To Cab Roof Condenser Tube And To Hose On Chassis, Includes 2

1шт.

2

128484A1

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 70 Duro

7/16 ID x 1/16

1шт.

3

353-482

PLUG

1-3/16 ID

1шт.

4

135525A1

HOSE ASSY.

1427 mm (56-3/16 in), Suction, Evaporator Core Expansion Valve Upper Port To Hose On Chassis, Includes 5 - 7

1шт.

5

128485A1

O-RING,1.78mm Thk x 14mm ID, 70 Duro

9/16 ID x 1/16

1шт.

6

1250594C1

CORE

1шт.

7

222-981

TUBE NUT,Cap, 3/8"-24, 45 Degree Fl

7/16 NF fem x 45 deg fl

1шт.

8

1999507C1

TUBE

Cab Roof To Evaporator Core Lower Port On Expansion Valve, Attaches To Receiver-Drier Tube, Includes 9

1шт.

9

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

2шт.

Inside Cab Roof

1шт.

10

1340490C4

EVAPORATOR

Evaporator, Includes 10A - 10C

1шт.

10a

1990756C2

VALVE

1шт.

10b

128485A1

O-RING,1.78mm Thk x 14mm ID, 70 Duro

9/16 ID x 1/16

1шт.

10c

128484A1

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 70 Duro

7/16 ID x 1/16

1шт.

11

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

4шт.

12

492-11025

LOCK WASHER,1/4"

4шт.

13

D132895

GROMMET

1шт.

253002A1

PAN ASSY.

Evaporator, Consists Of 14 - 15

1шт.

14

252628A1

PAN

Evaporator

1шт.

15

253008A1

SEAL

700 mm, Air

2шт.

16

R51356

508 mm (20 in), Cut From F64508X

2шт.

17

R44128

1524 mm (60 in), Cut From F64508X

2шт.

18

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

4шт.

19

F44790

VALVE

Rear Drain Hose

2шт.

20

122579A1

SWITCH, A/C LOW PRES

Low

1шт.

21

1999374C1

COVER

1шт.

22

161-112

HEX SOC SCREW,Btn Hd, 5/16" - 18 x 1/2"

5/16 x 1/2

4шт.

23

R49939

CLAMP

10шт.

24

294-1658

SELF-TAP SCREW,Cross Truss Hd, #10 x 1/2"

6шт.

25

463-1108

SCREW,Hex Hd, #10-24 x 1/2"

4шт.

26

86625057

NUT,#10-24, GB

4шт.

Inside Cab Roof

1шт.

27

83822C1

TAPE

610 mm (24 in), Cut From 1954475C1

1шт.

28

135519A1

HOSE ASSY.

3330 mm (131-1/8 in), Discharge, Compressor To Cab, Includes 29 - 32

1шт.

29

128485A1

O-RING,1.78mm Thk x 14mm ID, 70 Duro

9/16 ID x 1/16

1шт.

30

1250594C1

CORE

1шт.

31

122554A1

CAP

1шт.

32

128484A1

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 70 Duro

7/16 ID x 1/16

1шт.

33

135520A1

HOSE ASSY.

3267 mm (128-5/8 in), Suction, Compressor To Cab, Includes 34 - 36

1шт.

34

128485A1

O-RING,1.78mm Thk x 14mm ID, 70 Duro

9/16 ID x 1/16

2шт.

35

1250594C1

CORE

1шт.

36

122553A1

CAP

1шт.

37

232948A1

SWITCH, A/C HIGH PRE

1шт.

38

R58601

HARNESS

High Pressure Switch and Compressor To Main Cab Harness

1шт.

39

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

1шт.

40

252765A1

ORNAMENTAL STRIP

65 mm (2-9/16 in), Used On Rear Engine Lift Brackets

1шт.
