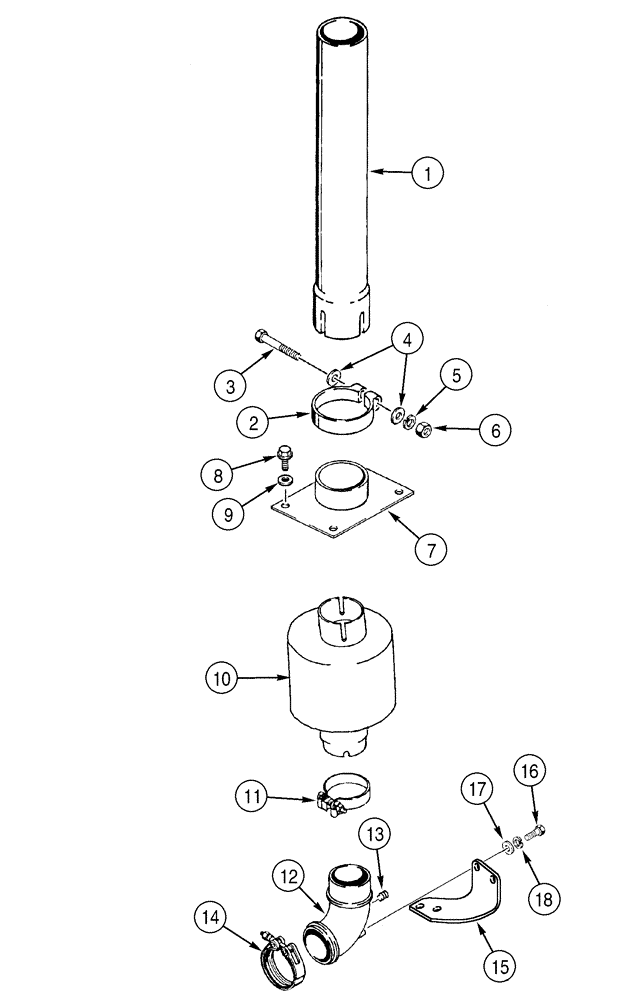

Запчасти Case 650H (02-07) - MUFFLER EXHAUST SYSTEM (02) - ENGINE

1

189279A2

PIPE, EXHAUST SYSTEM

PIPE, EXHAUST

1шт.

2

R27699

CLAMP,114.3mm

1шт.

3

113-2273

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

1шт.

4

195-81019

WASHER,0.41" ID x 0.81" OD x 0.07" Thk

13/32 x 13/16 x 1/16

2шт.

5

192-81005

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

6

129-770

NUT,3/8"-16, G5

1шт.

7

352380A1

PLATE ASSY.

No Longer Used For This Application

1шт.

8

160-102

BOLT,Hex, 3/8" - 16 x 1", Gr 8, Full Thd

No Longer Used For This Application

4шт.

9

496-41041

WASHER,13/32" x 1 1/8" x .134"

No Longer Used For This Application

4шт.

10

302395A1

MUFFLER

1шт.

11

S65056

CLAMP

Includes Hardware

1шт.

12

A173623

ELBOW

1шт.

13

217-506

DRAIN PLUG,Sq Hd, 1/4"-18 NPTF

1/4 PT

1шт.

14

A170467

CLAMP,72mm ID

Includes Hardware

1шт.

15

291029A1

BRACKET

Mounting

1шт.

16

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

4шт.

17

496-41041

WASHER,13/32" x 1 1/8" x .134"

4шт.

18

892-11010

LOCK WASHER,M10

4шт.
