(09-30) - CAB INSULATION AND MOUNTING BRACKETS

Запчасти Case 650H (09-30) - CAB INSULATION AND MOUNTING BRACKETS (09) - CHASSIS

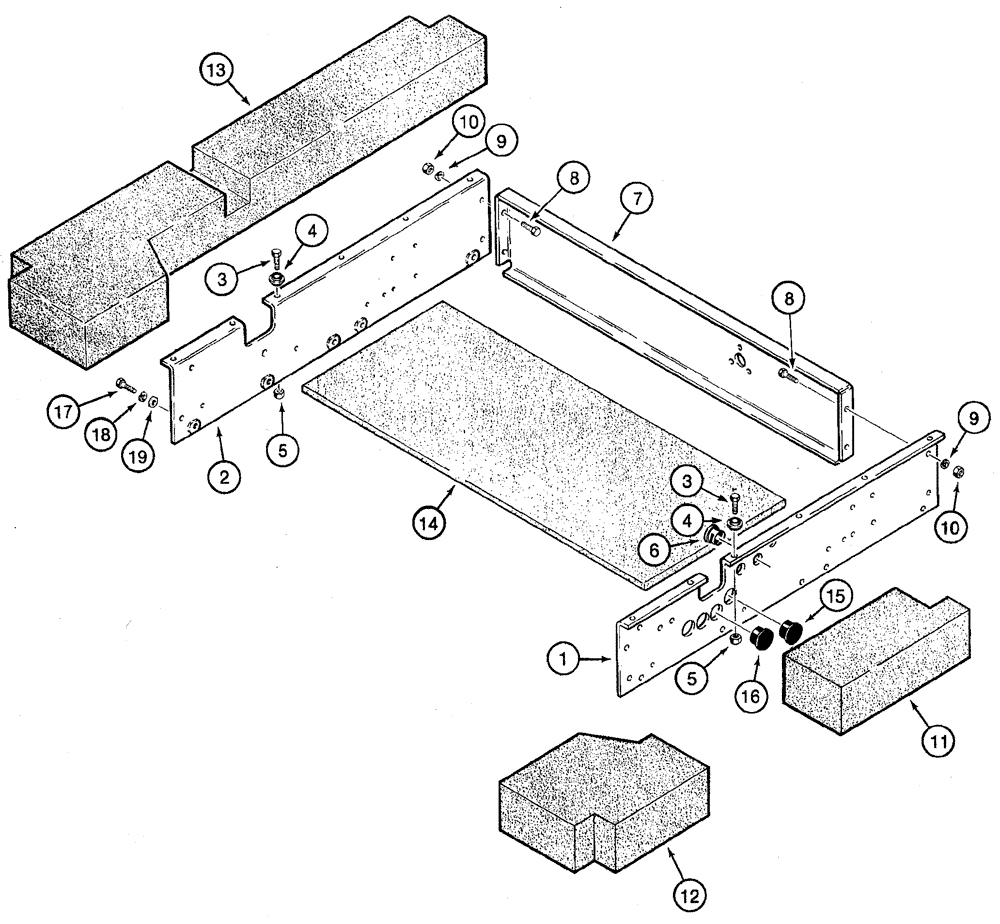

Схема запчастей Case 650H - (09-30) - CAB INSULATION AND MOUNTING BRACKETS (09) - CHASSIS
4
10
1
3
6
16
8
14
10
11
17
12
13
15
5
3
5
7
2
9
8
4
19
1
9
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

338887A1

PANEL ASSY.

Right Hand

1шт.

2

338888A1

PANEL ASSY.

Left Hand

1шт.

3

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

12шт.

4

F42778

WASHER

12шт.

5

231-1445

NUT,5/16"-18, GB

12шт.

6

1546466C1

GROMMET

25 mm (1 in) dia

2шт.

7

1999376C1

PANEL

1шт.

8

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

9

492-11031

LOCK WASHER,5/16"

4шт.

10

425-105

NUT,5/16"-18, G5

4шт.

11

187462A1

PAD

Right Hand Front

1шт.

12

187463A1

PAD

Right Hand Rear

1шт.

13

187466A1

PAD

Left Hand

1шт.

14

R44171

NOISE PROTECTION

Heat Barrier

1шт.

15

353-422

PLUG,Dome, 1.250" hole, Nylon

Used on Models without Air Conditioning

1шт.

16

353-413

PLUG,Dome, 1.187" hole, Nylon

1-3/16, Used On Models Without Air Conditioning

1шт.

17

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

10шт.

18

492-11025

LOCK WASHER,1/4"

10шт.

19

495-11028

WASHER,1/4", SAE

(9/32 x 5/8 x 1/16")

10шт.

345-44

ADHESIVE

Used To Attach Foam Pads

1шт.
