Запчасти Case 650H (09-25) - CAB DOORS (09) - CHASSIS

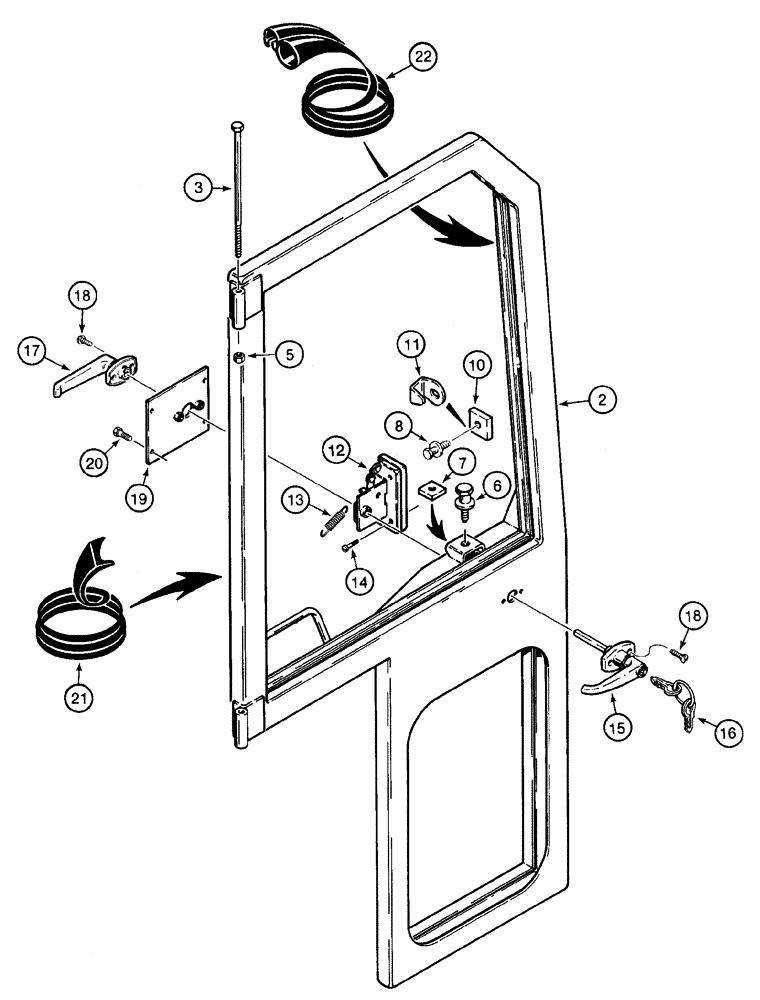

Схема запчастей Case 650H - (09-25) - CAB DOORS (09) - CHASSIS
17
18
6
15
21
7
5
14
8
13
16
18
12
11
19
20
2
22
10
3

Артикул

Название

Примечание

Количество

1

189642A1

DOOR

Left Hand, Not Illustrated

1шт.

2

189643A1

DOOR

Right Hand

1шт.

3

424-6160

BOLT,Hex, 3/8" - 16 x 10", Gr 2

4шт.

5

231-1446

NUT,3/8" - 16, Gr 5

4шт.

6

R51754

STRIKER

On Door Frame

2шт.

7

1340380C1

LARGE PLATE

PLATE, LARGE

2шт.

8

R51754

STRIKER

On Cab Frame

2шт.

10

1340381C1

LARGE PLATE

PLATE, LARGE

2шт.

11

R51756

PROTECTOR

2шт.

R55000

LATCH ASSY.

Right Hand, Includes 12, 13

1шт.

R55001

LATCH ASSY.

Left Hand, Includes 12, 13

1шт.

12

NSS

NOT SOLD SEPARAT

Latch

1шт.

13

A180163

SPRING

Used On Right And Left Hand Latches

1шт.

14

143-101

SCREW,Cross Rec Flat Hd, Csk, 1/4" - 20 x 1", W/ Nylon Insert

8шт.

15

1343909C1

HANDLE

Includes 16

2шт.

16

D88772

KEY

Set Of Two

1шт.

17

D88773

HANDLE

Inner

2шт.

18

442-11010

SCREW,Cross Oval Hd, #10-24 x 5/8"

No. 10 x 5/8

8шт.

19

N8706

LARGE PLATE

PLATE, LARGE

2шт.

20

264-2056

SELF-TAP SCREW,Slotted Pan Hd, #10 x 3/8"

No. 10 x 3/8

8шт.

21

R51710

SEAL

4300 mm (169-5/16 in), Cut From N6453

2шт.

22

R51711

SEAL

3000 mm (118-1/8 in), Cut From S118469X

2шт.

Выбрано товаров: 22
