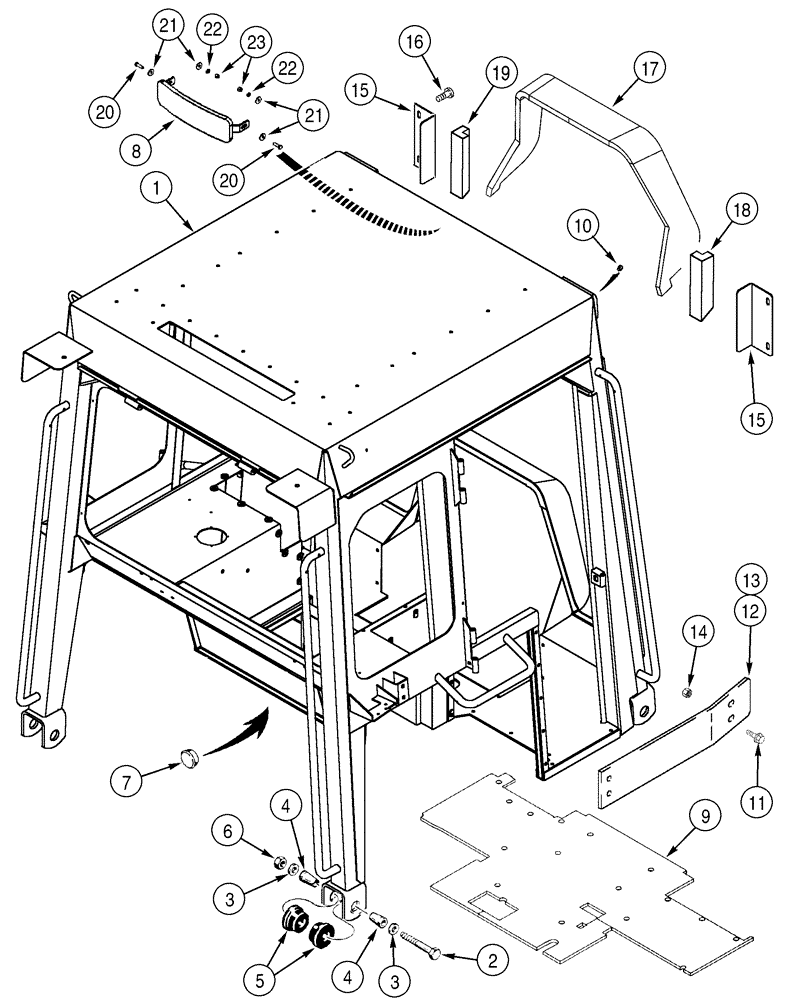

Запчасти Case 650H (09-24) - CAB MOUNTING (09) - CHASSIS

1

REF

INSTRUCTION

Cab, ROPS, Order From Machinery Price List

1шт.

2

413-1296

BOLT,Hex, 3/4" - 10 x 6", Gr 5

3/4 x 6

4шт.

3

T53681

WASHER,19.84mm ID x 44.5mm OD x 5.559mm Thk

19,8 x 44,5 x 5,6

8шт.

4

F44211

BUSHING,19.46mm ID x 38.1mm OD x 53.85mm L

8шт.

5

F44212

MOUNTING PARTS

8шт.

6

232-14412

NUT,3/4"-10, GB

3/4

4шт.

7

353-407

PLUG,Dome, .687" hole, Nylon

2шт.

8

367831A1

MIRROR

1шт.

9

382254A1

FLOOR MAT

1шт.

10

353-62

PLUG,Cap, .302" OD

5/16, Hand Rail

16шт.

11

160-108

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 8, Full Thd

1/2 x 1-1/2; 8

8шт.

12

R57977

PLATE

Left Hand Front, Not Illustrated

1шт.

13

R57978

PLATE

Right Hand Front

1шт.

14

425-108

NUT,1/2" - 13, Gr 5

8шт.

15

373295A1

ANGLE

2шт.

16

161-105

HEX SOC SCREW,Btn Hd, 5/16" - 18 x 3/4"

5/16 x 3/4

4шт.

17

373293A2

SEAL

1шт.

18

373294A1

RUBBER SEAL

225 mm (8-7/8 in), Right Hand

1шт.

19

381652A1

SEAL

Left Hand

1шт.

20

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

21

496-41041

WASHER,13/32" x 1 1/8" x .134"

4шт.

22

492-11038

LOCK WASHER,3/8"

2шт.

23

231-1446

NUT,3/8" - 16, Gr 5

2шт.
