Запчасти Case 650H (02-06) - AIR CLEANER ASSY PRECLEANER ASSY (02) - ENGINE

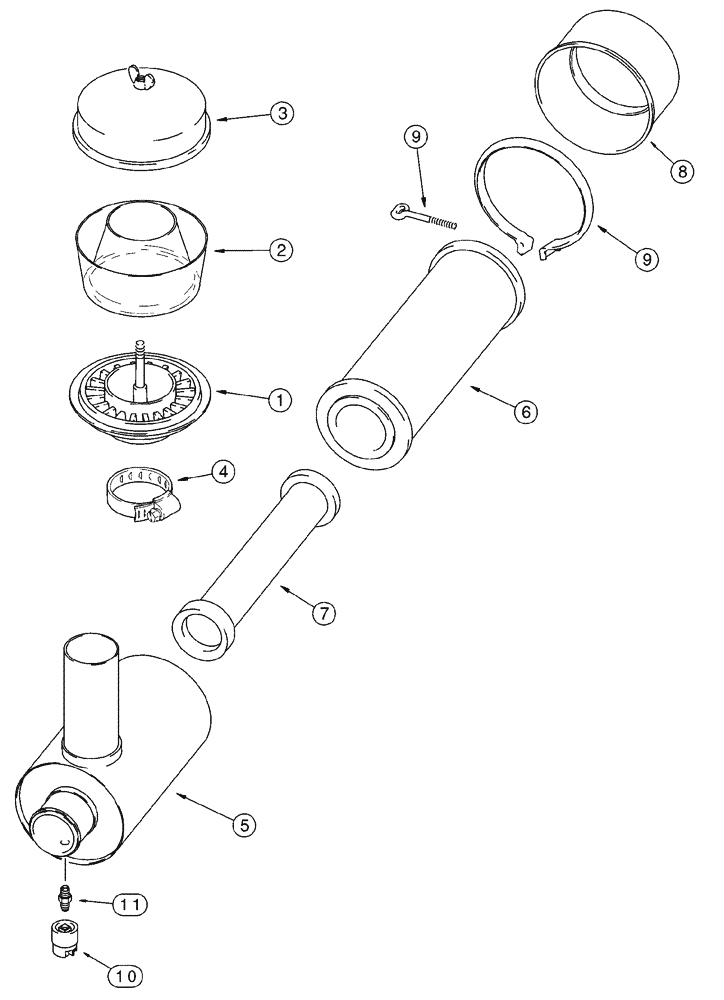

Схема запчастей Case 650H - (02-06) - AIR CLEANER ASSY PRECLEANER ASSY (02) - ENGINE
11
4
10
5
2
9
7
8
1
9
6
3

Артикул

Название

Примечание

Количество

Precleaner Assy

1шт.

228120A1

PRECLEANER

Consists Of 1 - 4

1шт.

1

NSS

NOT SOLD SEPARAT

Body

1шт.

2

277377R1

FILTER BOWL

1шт.

3

A42281

COVER

1шт.

4

214-1464

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

Air Cleaner Assy

1шт.

293571A1

AIR CLEANER

Consists Of 5 - 11

1шт.

226378A1

AIR CLEANER

Consists Of 5 - 9

1шт.

5

NSS

NOT SOLD SEPARAT

Housing

1шт.

6

222421A1

AIR FILTER

Primary

1шт.

7

222422A1

AIR FILTER

ELEMENT, FILTER , Secondary

1шт.

8

247743A1

FILTER COVER

1шт.

9

R21391

CLAMP

Includes Hardware

1шт.

10

292740A1

RESTRICTION SWITCH

Air Restriction

1шт.

11

D36264

FITTING

1шт.

Выбрано товаров: 15
