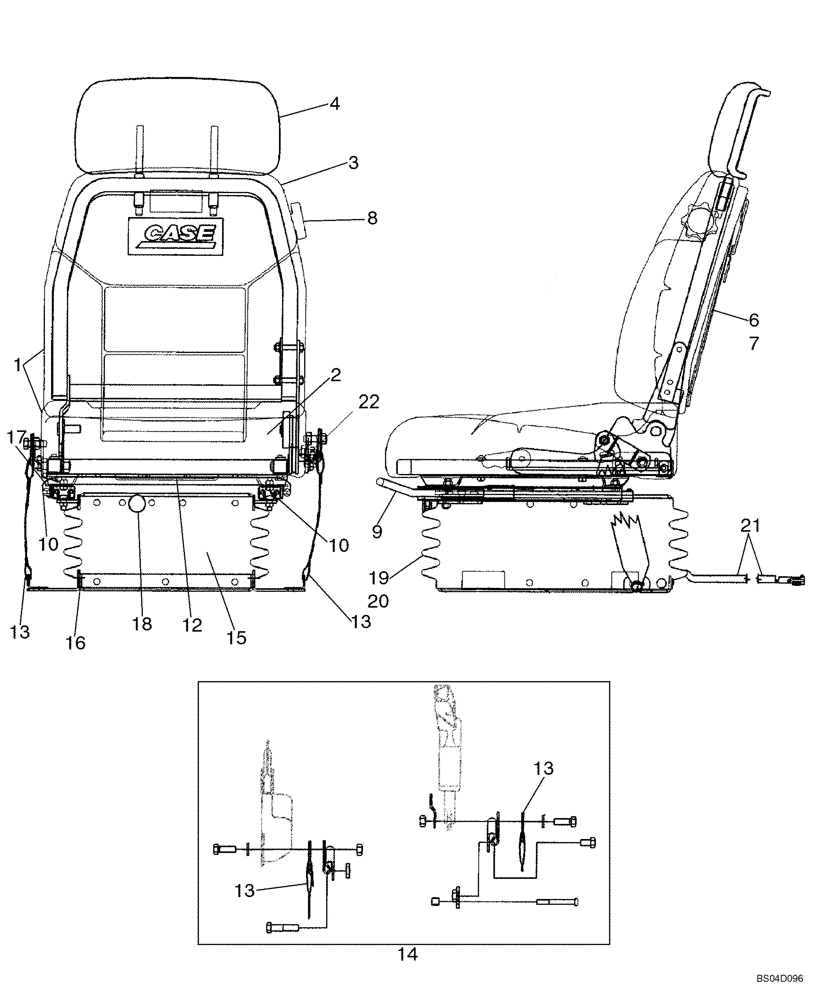

Запчасти Case 650H (09-19A) - SEAT ASSY, AIR SUSPENSION (09) - CHASSIS

374536A1

SEAT

Air Suspension; Gray Vinyl; Incl. Ref 1 - 21

1шт.

1

389023A1

CUSHION ASSY.

Includes Seat and Backrest Cushion

1шт.

2

389024A1

CUSHION ASSY.

Seat

1шт.

3

389025A1

CUSHION ASSY.

Backrest Cushion

1шт.

4

389026A1

CUSHION ASSY.

Backrest, Upper

1шт.

5

176091A1

PACKAGE,SERVICE

Kit, Hog Ring; Cushion Retainer; Package Of 50; Not Illustrated

1шт.

1981820C2

PACKAGE, REPAIR

Cover, Back; Includes Manual Holder; Incl. 6, 7

1шт.

6

NSS

NOT SOLD SEPARAT

Cover, Back; Includes Manual Holder

1шт.

7

1999693C1

KIT

Clip; Package Of 12

1шт.

8

9845775

KNOB

Back Tilt Knob; Includes Knob, Handle, Screw

1шт.

389272A1

KIT

Includes Slides, Springs, Pivot Pin and Retaining Ring

1шт.

9

389030A1

LEVER

Lever, Slide Release

1шт.

10

389269A1

SLIDE

Slide; 6 in. Travel

2шт.

180587A1

HANDLE

Slide Control

1шт.

12

182991A1

LARGE PLATE

PLATE, LARGE Adapter

1шт.

13

389277A1

SAFETY BELT ,48mm W x 283mm L

2шт.

14

389085A1

KIT

Seat Belt Mounting; Includes (2) Brackets, (3) Spacers, (1) Plate, (6) Bolts, (2) Nuts

1шт.

15

389029A1

SUSPENSION

Air; Boxed

1шт.

1344249C1

KIT

Kit, Roller Tube Bearing; Includes (4) Tube Bearings, (6) Rollers, (2) Suspension Shock Bearings, (1) 131-425 Push Nuts, (1) A45519 Plastic Washer

1шт.

197793A1

SPRING

Air Spring; Includes (1) Spring, (1) J-Clamp, (3) L18337 Tie Straps

1шт.

A49529

SHAFT

Bearing

2шт.

389280A1

ARM

Arm, Suspension

1шт.

16

389278A1

HOUSING

Housing; Lower; Boxed

1шт.

17

389279A1

HOUSING

Housing; Upper; Boxed

1шт.

389282A1

KIT

Shock Absorber; Includes (1) Shock, (2) Bearings, (1) Push Nut

1шт.

389283A1

KIT

Air Compressor

1шт.

1981852C3

SWITCH

Valve, Air Control; Incl. Ref 18

1шт.

18

1987186C2

KNOB

Knob, Air Control Valve; Includes Set Screw

1шт.

133422A1

BUMPER

1 inch Diameter; Round

2шт.

A45054

BUMPER,Neoprene

1 x 1 in.; Square

1шт.

180593A1

KIT

Kit, Bumper; Includes (2) Bumpers, (2) Spacers, (2) 340-12520 Screws, (2) 231-1444 Nuts

1шт.

1990647C2

KIT

Kit, Boot; Incl. Ref 19, 20

1шт.

19

NSS

NOT SOLD SEPARAT

Boot

1шт.

20

132872A1

KIT

Boot Retainer; Includes (20) Retainers, (3) Push Nuts, (3) Clips

1шт.

21

389281A1

HARNESS

1шт.

1990548C4

KIT

Airline and Fittings, Includes Instructions

1шт.

22

1987212C1

PACKAGE

Kit, Back Tilt Lever

1шт.
