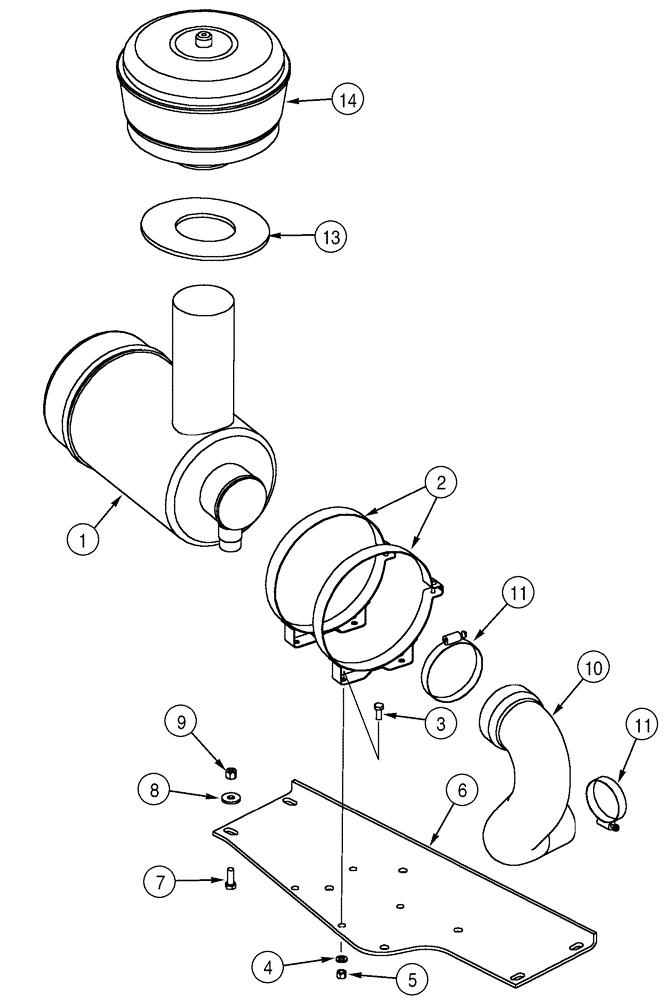

Запчасти Case 650H (02-05) - AIR CLEANER MOUNTING (02) - ENGINE

1

293571A1

AIR CLEANER

See Page(s) 2-15

1шт.

2

70973

BRACKET

Includes Hardware

2шт.

3

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

4

495-81001

WASHER,5/16"

3/8 x 1-1/8 x 1/16

4шт.

5

231-1445

NUT,5/16"-18, GB

4шт.

6

345364A1

BRACKET

1шт.

7

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

4шт.

8

496-41041

WASHER,13/32" x 1 1/8" x .134"

4шт.

9

231-1446

NUT,3/8" - 16, Gr 5

4шт.

10

345209A1

HOSE

1шт.

11

214-3164

HOSE CLAMP,3-1/4" - 4-1/8", HD Worm

3-1/4 x 4-1/8

1шт.

12

214-3156

HOSE CLAMP,2-3/4" - 3-5/8", HD Worm

2-3/4 x 3-5/8

1шт.

13

293973A1

SKID/SHOE

1шт.

14

228120A1

PRECLEANER

See Page(s) 2-15

1шт.
