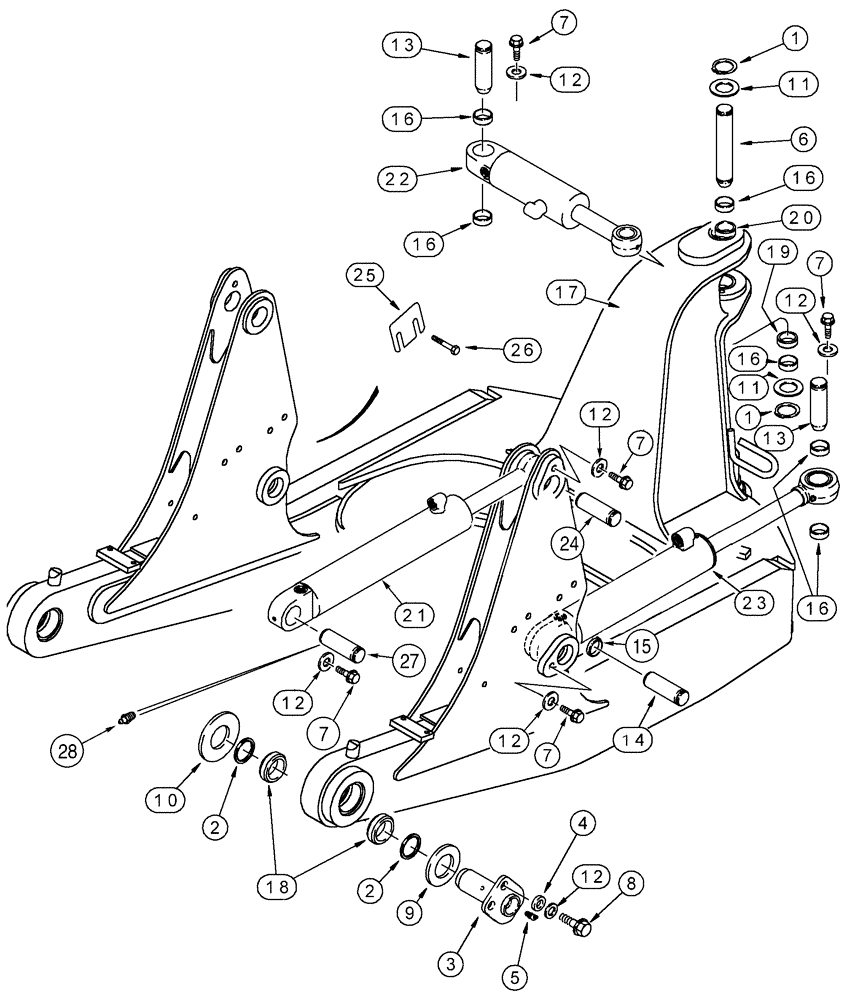

Запчасти Case 650H (09-01) - FRAME, LIFT CYLINDERS, MOUNTING (09) - CHASSIS

1

103-16175

SNAP RING,#175, Ext

2шт.

2

L113522

SEAL

Use Loctite No. 271

4шт.

B17500

LOCTITE

Loctite, No. 271, 6 ml

1шт.

3

R53254

PIN,63.5mm OD x 195mm L

2шт.

4

R53353

WASHER,16.13mm ID x 22.23mm OD x 15.3mm L

4шт.

5

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

2шт.

6

119106A1

PIN,44.42mm OD x 260mm L

44 x 260 mm, Tilt Cylinder, Rod End

1шт.

7

360-1020

BOLT,Hex, 5/8" - 11 x 1 1/4", Gr 8

5/8 x 1-1/4; 8

8шт.

8

360-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 8

5/8 x 2; 8

4шт.

9

95-31262

WASHER,2.62" ID x 5" OD x 0.24" Thk

2-5/8 x 5 x 1/4

2шт.

10

95-81156

WASHER,2.56" ID x 4" OD x 0.11" Thk

2-9/16 x 4 x 1/8

12шт.

11

495-81092

WASHER,1-7/8" ID x 2-1/2" OD x 1/16" Thk

1-25/32 x 2-1/2 x 3/64

6шт.

12

70523

WASHER,16.67mm ID x 47.63mm OD x 6.35mm Thk

13шт.

13

119101A1

PIN,44.42mm OD x 165mm L

44 x 165 mm, Tilt Cylinder, Angle Cylinder

3шт.

14

386438A1

PIN

Angle Cylinder, Closed End

2шт.

15

121166A1

BUSHING,45.26mm ID x 50.8mm OD x 12mm L

4шт.

16

121167A1

BUSHING,45.26mm ID x 50.8mm OD x 19.5mm L

8шт.

17

381001A1

FRAME ASSY

Includes 18 - 20

1шт.

117838A1

PIN

Welded To Trunnion Plate

1шт.

18

D33635

BUSHING,63.75mm ID x 76.2mm OD x 25.4mm L

2-1/2 x 3 x 1

4шт.

19

D40243

BUSHING,44.68mm ID x 57.15mm OD x 19.05mm L

1-3/4 x 2-1/4 x 3/4

2шт.

20

D43940

BUSHING,44.68mm ID x 57.15mm OD x 25.4mm L

1-3/4 x 2-1/4 x 1

1шт.

21

116211A2

CYLINDER

89 ID x 442mm strk, Lift, See Page(s) 8-35

2шт.

22

117511A2

CYLINDER

89 ID x 148 mm strk, Tilt, See Page(s) 8-37

1шт.

22

412357A1R

REMAN-HYD CYLINDER

650H, Reman for New PN 117511A2

1шт.

22

412357A1C

CORE-HYD CYLINDER

Return Number

1шт.

23

190595A2

CYLINDER

89 ID x 396 mm strk, Angle, See Page(s) 8-39

2шт.

23

84135900R

REMAN-HYD CYLINDER

Reman for new P/N 190595A2

2шт.

23

84135900C

CORE-HYD CYLINDER

Return Number

2шт.

24

181427A1

PIN

44 x 120 mm, Lift Cylinder

2шт.

25

144476A1

SHIM

If Equipped

10шт.

26

326-864

BOLT,Hex, 1/2" - 13 x 4", Gr 8

Use Loctite No. 242

4шт.

B17422

LOCTITE

Loctite, No. 242, 50 ml

1шт.

27

380896A1

PIN

Lift Cylinder

2шт.

28

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.
