Запчасти Case 650H (08-17) - CONTROLS LEVER AND LINKAGE - MODELS WITH THREE SPOOL CONTROL VALVE (08) - HYDRAULICS

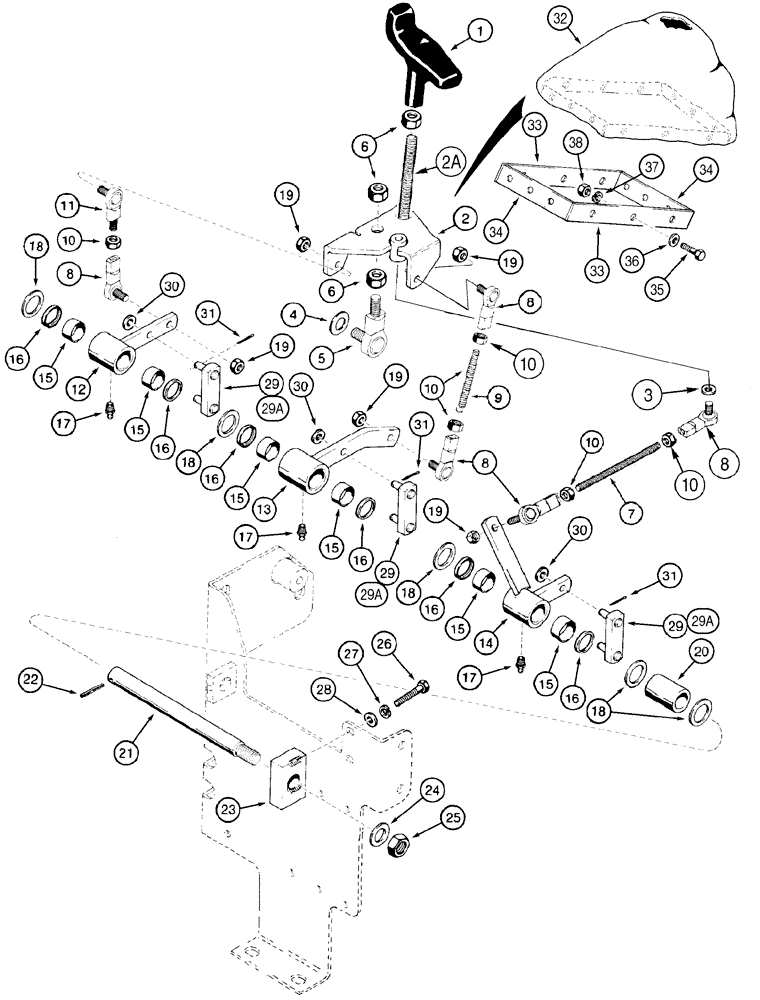

Схема запчастей Case 650H - (08-17) - CONTROLS LEVER AND LINKAGE - MODELS WITH THREE SPOOL CONTROL VALVE (08) - HYDRAULICS
17
31
18
29
37
8
35
15
15
29a
19
10
15
11
36
7
16
4
15
16
8
1
18
5
10
9
31
8
19
33
24
34
32
16
34
16
30
16
2
3
19
15
29
23
6
31
2a
21
27
33
30
18
12
17
25
29a
17
30
22
29a
10
38
16
14
19
15
29
6
13
26
10
10
20
8
18
28
19

Артикул

Название

Примечание

Количество

Models With Three Spool Control Valve

1шт.

1

R58490

HANDLE

1шт.

2

377400A1

BRACKET

1шт.

2a

363251A1

ROD

1/2 NF x 89 mm

1шт.

3

495-11034

WASHER,5/16", SAE

(11/32 x 11/16 x 1/16")

1шт.

4

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32")

1шт.

5

A55558

BALL JOINT

Male

1шт.

6

425-158

JAM NUT,Jam, 1/2"-20, G5

Use Loctite No. 242

3шт.

B17577

LOCTITE

Loctite, No. 242, 6 ml

1шт.

7

377403A1

ROD

5/16 NF x 131 mm

1шт.

8

H289652

BALL JOINT,5/16" - 24 x 1-3/8" L

5/16 NF, Female

5шт.

9

377402A1

ROD

5/16 NF x 61 mm

1шт.

10

425-115

NUT,5/16"-24, G5

Use Loctite No. 242

5шт.

B17577

LOCTITE

Loctite, No. 242, 6 ml

1шт.

11

R47939

ROD

5/16 NF, Male, Use Loctite No. 242

1шт.

B17577

LOCTITE

Loctite, No. 242, 6 ml

1шт.

12

377393A1

ROCKER ARM

Lift, Includes 15 - 17

1шт.

13

377395A1

ROCKER ARM

Tilt, Includes 15 - 17

1шт.

14

R58246

ROCKER

Angle, Includes 15 - 17

1шт.

15

L31166

NEEDLE BEARING

2шт.

16

65457C1

SEAL,19.04mm ID x 25.5mm OD x 3.17mm Thk

2шт.

17

219-8

LUBE NIPPLE,1/4" - 28 NPTF

3шт.

Models With Three Spool Control Valve

1шт.

18

1960614C1

WASHER,20mm ID x 35mm OD x 1.58mm Thk

Used as a Spacer

8шт.

19

232-4605

LOCK NUT,5/16"-24, GC

Use Loctite No. 242

5шт.

B17577

LOCTITE

Loctite, No. 242, 6 ml

1шт.

20

R58344

SPACER

1шт.

21

R58256

SHAFT

1шт.

22

438-11224

LOCK PIN,3/16" x 1 1/2", Slotted

3/16" x 1 1/2", Slotted

1шт.

23

R58257

BLOCK

1шт.

24

495-11066

WASHER,5/8", SAE

21/32 x 1-5/16 x 3/32

1шт.

25

231-24410

LOCK NUT,5/8"-18, GB

1шт.

26

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

27

492-11038

LOCK WASHER,3/8"

2шт.

28

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(13/32 x 13/16 x 1/16")

2шт.

29

139345A1

POWER ARM

Includes 29A

3шт.

29a

139219A1

CLEVIS

2шт.

30

495-11034

WASHER,5/16", SAE

(11/32 x 11/16 x 1/16")

1шт.

31

432-612

COTTER PIN,3/32" x 3/4"

6шт.

Cab Models

1шт.

32

1999592C1

BOOT

1шт.

33

1999828C1

RETAINER

Long

2шт.

34

1999827C1

RETAINER

Short

2шт.

35

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

12шт.

36

495-11028

WASHER,1/4", SAE

(9/32 x 5/8 x 1/16")

12шт.

37

492-11025

LOCK WASHER,1/4"

12шт.

38

425-104

NUT,1/4"-20, Cl 5

12шт.

Выбрано товаров: 47
