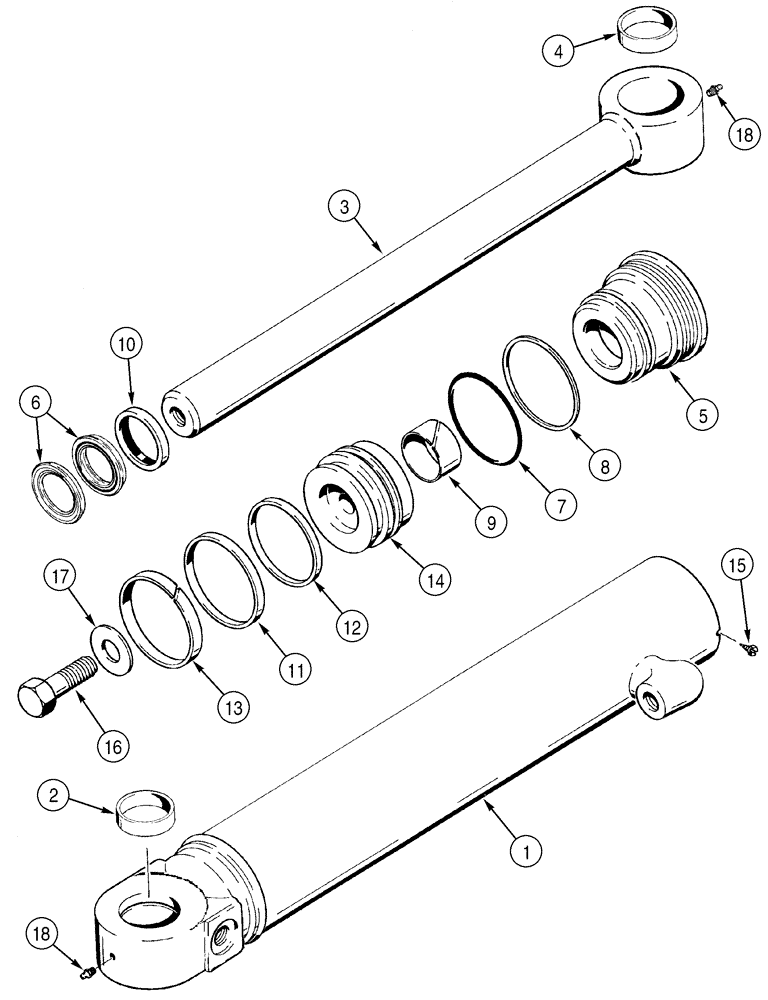

Запчасти Case 650H (08-12) - CYLINDER ASSY LIFT (08) - HYDRAULICS

116211A2

CYLINDER

89 ID x 442mm strk, Lift, Consists Of 1 - 18

2шт.

1

357936A1

TUBE,88.77 mm ID, 669.3 mm Length

Includes 2

1шт.

2

D40243

BUSHING,44.68mm ID x 57.15mm OD x 19.05mm L

1-3/4 x 2-1/4 x 3/4

2шт.

3

116207A2

ROD ASSY.

45 mm (1-3/4 inch) dia, Includes 4

1шт.

4

D40243

BUSHING,44.68mm ID x 57.15mm OD x 19.05mm L

1-3/4 x 2-1/4 x 3/4

2шт.

5

355529A1

GLAND

1шт.

1543266C1

SEAL KIT

Consists Of 6 - 13

1шт.

6

NSS

NOT SOLD SEPARAT

Kit, Seal, Order 1543266C1

1шт.

7

238-5235

O-RING,0.139" Thk x 3.109" ID, -235, Cl 5, 75 Duro

1шт.

8

D38858

BACK-UP RING,82.17mm ID x 88.27mm OD x 1.4mm Thk

1шт.

9

G102425

BUSHING,44.45mm ID x 47.45mm OD x 25.1mm Thk

1шт.

10

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

1шт.

11

G102286

SEAL,Locking, 85.47mm ID x 90.19mm OD x 6.96mm Thk

1шт.

12

G100710

RING,Square, 5.28mm Thk x 75.31mm ID

1шт.

13

G100711

SEAL,Split, 82.55mm ID x 88.9mm OD x 9.52mm Thk

1шт.

14

1986982C1

PISTON

1шт.

15

276-2446

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

1шт.

16

28-1640

BOLT,Hex, 1" - 14 x 2-1/2", Gr 8

1шт.

17

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

1шт.

18

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

19

217-430

PLUG,Hex Soc, 1/8" - 27 NPTF

Replaces 219-1, Not Illustrated

1шт.
