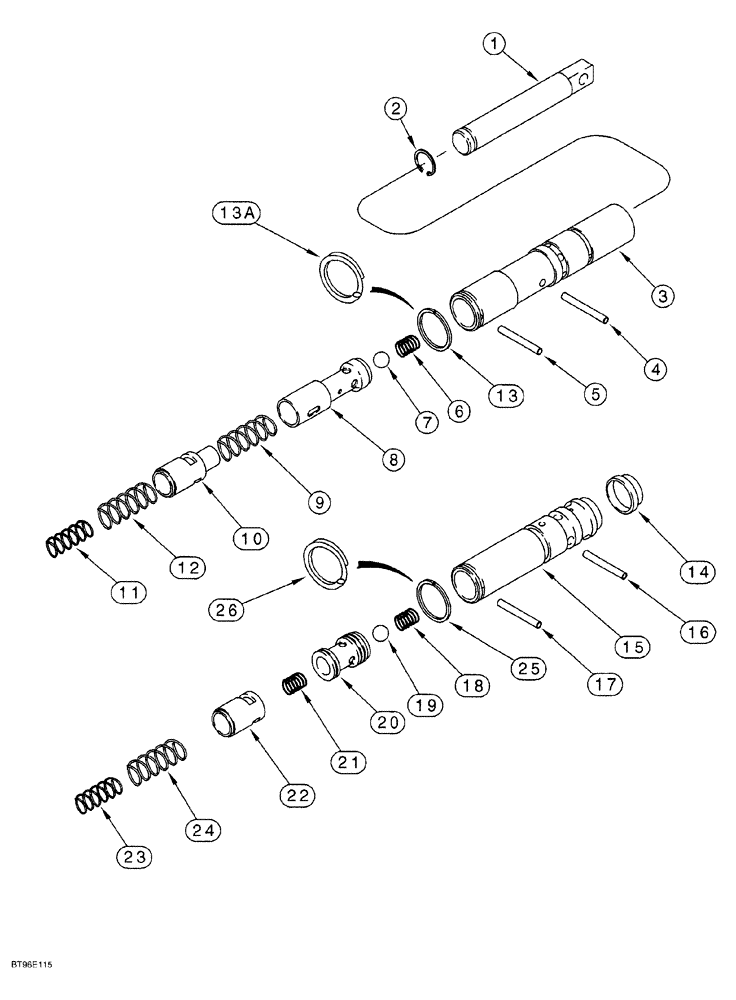

Запчасти Case 650G (6-22) - TRANSMISSION CONTROL VALVE SPOOL ASSEMBLIES (06) - POWER TRAIN

130730A1

TRANSMISSION

ASSEMBLY, 1524 mm (60 inch) gauge, parts list Fig. 6-8 - 6-24 and 7-6, Includes: Ref. 1 - 13A

1шт.

126429A2

SPOOL

ASSEMBLY clutch cutout, no longer available, order 189265A2 on Fig. 6-24

2шт.

1

138436A1

ROD

spool eye, clutch cutout spool assembly

1шт.

2

G107637

RING, SNAP

RING SNAP retaining, clutch cutout spool assembly

1шт.

3

126254A3

SPOOL

SLEEVE clutch cutout spool, no longer available, order 189269A2 spool assembly on Fig. 6-24, clutch cutout spool assembly

1шт.

4

132923A1

PIN

retaining, 3.18 x 24 mm long, clutch cutout spool assembly

1шт.

5

37-1214

DOWEL,1/8" x 7/8"

dowel, 1/8 x 7/8 inch, hardened, clutch cutout spool assembly

1шт.

6

129700A1

SPRING

check valve ball, clutch cutout spool assembly

1шт.

7

211-1012

BALL,3/8" Dia

chrome alloy steel, 3/8 inch, grade 24, clutch cutout spool assembly

1шт.

8

126253A1

SPOOL

track modulation, clutch cutout spool assembly

1шт.

9

127428A1

SPRING

spool return, no longer available, order 189265A2 spool assembly shown on Fig. 6-24, clutch cutout spool assembly

1шт.

10

121488A1

PISTON

track modulation, clutch cutout spool assembly

1шт.

11

121867A1

SPRING

track modulation, clutch cutout spool assembly

1шт.

12

121866A1

SPRING

track modulation, clutch cutout spool assembly

1шт.

13

121493A2

RING

retaining, no longer available, order 102-1393, Ref. 13A, clutch cutout spool assembly

1шт.

13a

102-1393

SNAP RING,#93, Ext, Spiral

external spiral retaining, No. 93, clutch cutout spool assembly

1шт.

126430A2

SPOOL

ASSEMBLY forward and reverse modulation, no longer available, order 126430A3 spool assembly on Fig. 6-24, Includes: Ref. 14 - 26

1шт.

14

121494A1

STOP

spool, forward and reverse modulation

1шт.

15

126255A3

SLEEVE

modulation spool, replaces 126255A2, forward and reverse

1шт.

16

132923A1

PIN

retaining, 3 18 x 24 mm long, forward and reverse modulation spool

1шт.

17

37-1214

DOWEL,1/8" x 7/8"

dowel, 1/8 x 7/8 inch, hardened, forward and reverse modulation spool

1шт.

18

129700A1

SPRING

check valve ball, forward and reverse modulation spool

1шт.

19

211-1012

BALL,3/8" Dia

chrome alloy steel, 3/8 inch, grade 24, forward and reverse modulation spool

1шт.

20

126252A1

SPOOL

forward and reverse modulation

1шт.

21

127427A1

SPRING

spool return, forward and reverse modulation

1шт.

22

121492A1

PISTON

forward and reverse modulation spool

1шт.

23

121870A1

SPRING

forward and reverse modulation spool

1шт.

24

121871A1

SPRING

forward and reverse modulation spool

1шт.

25

121493A2

RING

retaining, no longer available, order 102-1393, Ref. 26, forward and reverse modulation spool

1шт.

26

102-1393

SNAP RING,#93, Ext, Spiral

external spiral retaining, No. 93, forward and reverse modulation spool

1шт.
