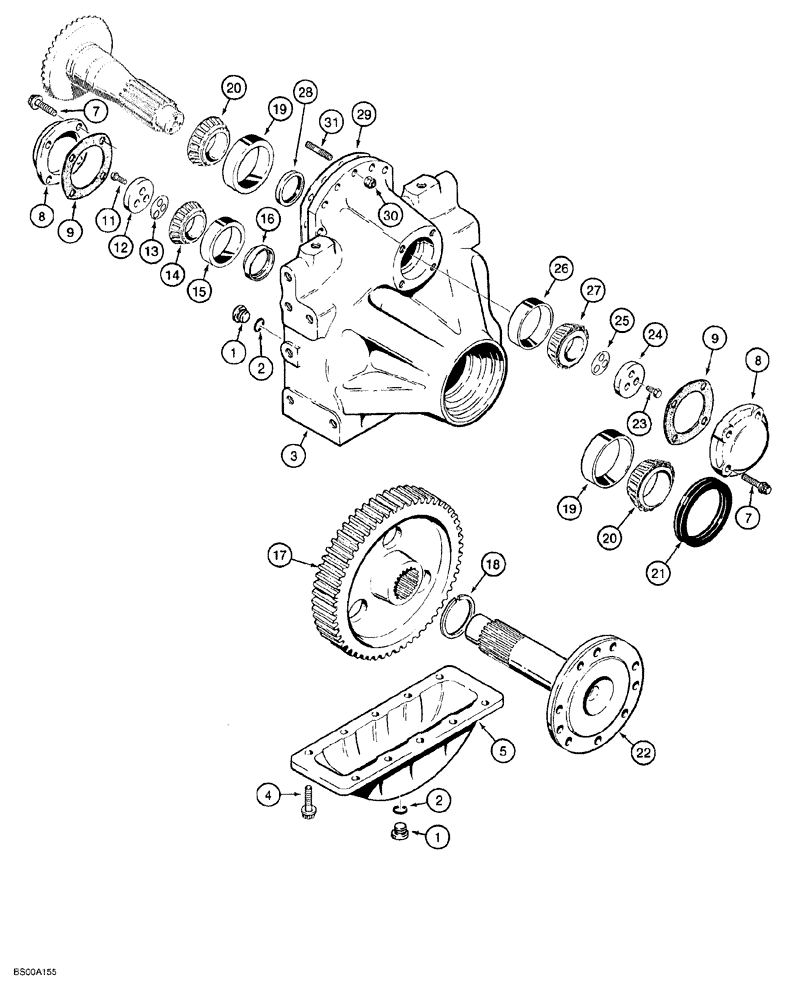

Запчасти Case 650G (6-16) - TRANSMISSION ASSEMBLY - FINAL DRIVE (1524 MM (60 INCH) GAUGE DOZER MODELS) (06) - POWER TRAIN

130730A1

TRANSMISSION

ASSEMBLY, 1524 mm (60 inch) gauge, parts list Figs. 6-8 - 6-24 and 7-6, Includes: Ref. 1 - 31

1шт.

G107164

TRANSMISSION

DRIVE ASSEMBLY, final, Includes: Ref. 1 - 29

2шт.

1

71100209

PLUG,Hex Soc, 3/4"-16 ORB

Incl Ref 2

3шт.

2

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

Part of seal kit 138973A1

1шт.

Part of seal kit 138971A1

1шт.

3

G101600

HOUSING

final drive assembly

1шт.

4

180-610

12 PT SCREW,Flg, 1/2" - 13 x 1 1/2", Gr 8

12 point flange, chemical coating, 1/2 NC x 1-1/2 inch, grade 8

10шт.

5

1348875C1

COVER

PAN bottom, see Ref. 6 for, Serial Range: sealant-housing

1шт.

6

REF

INSTRUCTION

SEALANT Gasket Eliminator No. 515, pan to housing, not shown, order B17555 or B17556

1шт.

7

180-609

12 PT SCREW,Flg, 1/2" - 13 x 1", Gr 8

12 point flange, chemical coating, 1/2 NC x 1 inch, grade 8

8шт.

8

G105822

COVER ASSY

shaft

2шт.

9

G101598

GASKET

cover

2шт.

Part of seal kit 138971A1

1шт.

11

110-14

LOCK BOLT,Locking, 9/16"-18 x 1 1/4", G8, Full Th

3шт.

Part of seal kit 138971A1

1шт.

12

1997099C1

PLATE

bearing retaining, final drive shaft

1шт.

Part of seal kit 138971A1

1шт.

13

R21741

SHIM,.005" Thk

(0.127 mm)

1шт.

Part of seal kit 138971A1

1шт.

13

R21742

SHIM,.007" Thk

(0.178 mm)

1шт.

Part of seal kit 138971A1

1шт.

13

R21743

SHIM,.020" Thk

(0.508 mm)

1шт.

Part of seal kit 138971A1

1шт.

14

630203C91

TAPERED BEARING

tapered roller, final drive shaft, inner

1шт.

15

L35931

BEARING CUP

tapered roller bearing, inner

1шт.

16

G100325

SPACER

SPACER final drive shaft

1шт.

17

A50134

GEAR

final drive

1шт.

18

101-11325

SNAP RING,#325, 3.070, Ext

external retaining, No. 325

1шт.

19

A63171

BEARING CUP,85 mm ID x 130 mm OD x 30.2 mm

tapered roller

2шт.

20

622336C1

ROLLER BEARING,84.99mm ID x 30mm W

tapered roller, final drive, outer, bevel gear, inner

2шт.

21

1981095C1

SEAL

face

1шт.

Part of Seal Kit, P/N 138973A1

1шт.

22

G106477

SHAFT

final drive

1шт.

23

107-9820

LOCK BOLT,Locking, 1/2"-13 x 1 1/4", G8, Full Thd

hex, chemical locking, 1/2 NC x 1-1/4 inch, grade 8

3шт.

Part of Seal Kit, P/N 138973A1

1шт.

24

1997100C1

PLATE

bearing retaining, bevel gear

1шт.

Part of Seal Kit, P/N 138973A1

1шт.

25

G100328

SHIM,.005" Thk

(0.127 mm)

1шт.

Part of Seal Kit, P/N 138973A1

1шт.

25

G100329

SHIM,.007" Thk

(0.178 mm)

1шт.

Part of Seal Kit, P/N 138973A1

1шт.

25

G100330

SHIM,.020" Thk

(0.508 mm)

1шт.

Part of Seal Kit, P/N 138973A1

1шт.

26

895366C1

BEARING CUP

CUP tapered roller, outer

1шт.

27

1997114C1

TAPERED BEARING,55.001 mm ID x 39 mm

tapered roller, bevel gear, outer

1шт.

28

A32015

SEAL,82.55mm ID x 114.3mm OD x 11.91mm Thk

oil, housing, bevel gear

1шт.

Part of Seal Kit, P/N 138973A1

1шт.

29

A50199

SHIM,.003" Thk

(0.076 mm)

1шт.

Part of Sealant B17501

1шт.

29

A50198

SHIM,.005" Thk

(0.127 mm)

1шт.

Part of Sealant B17501

1шт.

29

1997091C1

SHIM

0.508 mm (0.02 inch) thick

1шт.

30

232-4118

NUT,1/2"-13, GC

28шт.

31

308713A1

STUD

1/2 NC x 2-5/16 inch, final drive mounting, use with Loctite No. 271, replaces G100303

28шт.

B17500

LOCTITE

No. 271, red, 6 ml tube

1шт.

B17501

LOCTITE

SEALANT Gasket Maker No. 515, 6 ml tube, includes Ref. 29

1шт.

B17555

LOCTITE

SEALANT Gasket Eliminator No. 515, 50 ml tube

1шт.

B17556

LOCTITE

SEALANT Gasket Eliminator No. 515, 300 ml tube

1шт.

138971A1

SEAL KIT

KIT, transmission, includes Refs. plus an additional gasket not used in this application

1шт.

138973A1

SEAL KIT

KIT, final drive, seals and shims, for one side only, includes Refs. 2, 9, 11, 12, 13, 21, 23, 24, and 25

1шт.
