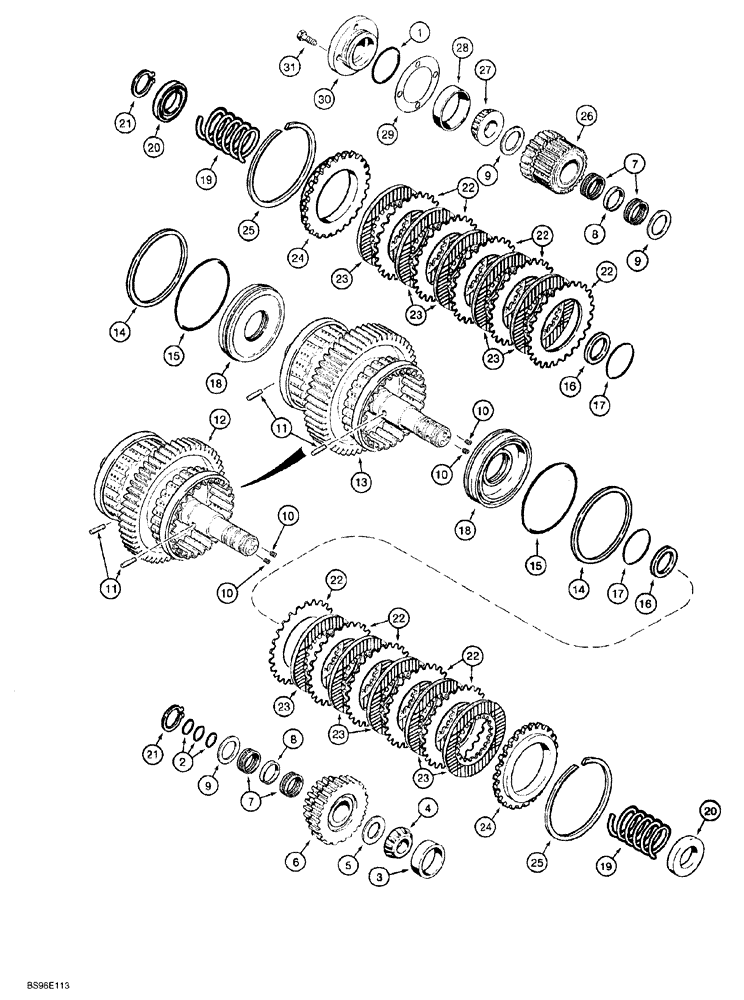

Запчасти Case 650G (6-14) - TRANSMISSION ASSEMBLY - HIGH-LOW CLUTCHES AND SHAFTS (06) - POWER TRAIN

130730A1

TRANSMISSION

ASSEMBLY, 1524 mm (60 inch) gauge, parts list Figs. 6-8 - 6-24 and 7-6, Includes: Ref. 1 - 31

1шт.

1

238-5151

O-RING,0.103" Thk x 2.987" ID, -151, Cl 5, 75 Duro

Part of seal kit 138971A1

2шт.

Part of seal kit 138971A1

1шт.

2

A175509

SEALING RING,32.81mm ID x 36.13mm OD x 2.38mm Thk

SEALRING seal, Part of kit 138971A1

6шт.

Part of seal kit 138971A1

1шт.

3

G100312

BEARING, CUP,85mm OD x 19.05mm W

CUP tapered roller

2шт.

4

3131513R91

ROLLER BEARING

tapered roller

2шт.

5

A175396

WASHER, THRUST,36.6mm ID x 60mm OD x 2.3mm Thk

2шт.

6

1997063C1

GEAR

drive, high, 29/40 teeth

2шт.

7

A178460

NEEDLE BEARING,44.99mm ID x 50.02mm OD x 16.8mm W

needle

8шт.

8

A188194

RING,46.25mm ID x 49.8mm OD x 6.38mm Thk

inner, spacer, needle bearing

4шт.

9

A188192

WASHER, THRUST,45.05mm ID x 64.94mm OD x 2.05mm Thk

6шт.

1997047C2

CLUTCH HOUSING

ASSEMBLY high/low, with shaft and gear, 51 (17 mm wide) teeth, left hand, Includes: Ref. 10 - 25

1шт.

1997046C2

CLUTCH HOUSING

ASSEMBLY high/low, with shaft and gear, 51 (42 mm wide) teeth, right hand, Includes: Ref. 10 - 25

1шт.

10

83-3446

SET SCREW,Hex Soc, 7/16"-14 x 3/8"

set, hex socket headless, 7/16 NC x 3/8 inch, flat point, use with Loctite No. 271

2шт.

11

38-3605

PIN,3/32" x 5/16", Coiled

2шт.

12

1348993C2

SHAFT

high/low clutch, 51 (17 mm wide) teeth, with gear and clutch housings, left hand

1шт.

13

1348991C2

SHAFT

high/low clutch, 51 (42 mm wide) teeth, with gear and clutch housings, right hand

1шт.

14

A158051

SEAL,116.49mm ID x 123.91mm OD x 3.07mm Thk

piston, external, Part of kit 138971A1

2шт.

Part of seal kit 138971A1

1шт.

15

238-5156

O-RING,0.103" Thk x 4.237" ID, -156, Cl 5, 75 Duro

Piston, external, part of seal kit 138971A1

2шт.

Part of seal kit 138971A1

1шт.

16

A159297

SEAL,47.2mm ID x 54.1mm OD x 3.1mm Thk

SEALRING piston, internal, Part of kit 138971A1

2шт.

Part of seal kit 138971A1

1шт.

17

238-5137

O-RING,0.103" Thk x 2.05" ID, -137, Cl 5, 75 Duro

Piston, internal, Part of seal kit 138971A1

2шт.

Part of seal kit 138971A1

1шт.

18

A159292

PISTON

clutch

2шт.

19

A188080

SPRING

return

2шт.

20

A188044

RETAINER

spring

2шт.

21

100-16175

SNAP RING,#175, Ext

2шт.

22

A175806

PLATE

clutch, separator

10шт.

23

A188946

DRIVE PLATE,81.9mm ID x 127mm OD x 2.6mm Thk

clutch, friction

10шт.

24

137720A1

PLATE

clutch, backing

2шт.

25

139987A1

SNAP RING,126.34mm ID x 142.4mm OD x 2.82mm Thk

RING retaining, internal

2шт.

26

1997064C1

GEAR

drive, low, 20/40 teeth

2шт.

27

G100313

BEARING CONE,34.92mm ID x 20.64mm W

BEARING tapered roller, clutch shaft, rear

2шт.

28

A50264

BEARING CUP,72mm OD x 14.2mm W

CUP tapered roller, rear

2шт.

29

G103645

SHIM,.003" Thk

(0.076 mm), Part of seal kit 138971A1

1шт.

Part of seal kit 138971A1

1шт.

29

G103647

SHIM,.010" Thk

(0.254 mm), Part of seal kit 138971A1

1шт.

Part of seal kit 138971A1

1шт.

29

1348980C1

BLOCK

SHIM, 0.504 mm (0.02 inch) thick, Part of seal kit 138971A1

1шт.

Part of seal kit 138971A1

1шт.

30

G103644

COVER ASSY

shaft, high/low

2шт.

31

107-9620

LOCK BOLT,Locking, 3/8"-16 x 1 1/4", G8

8шт.

B17500

LOCTITE

No. 271, red, 6 ml tube

1шт.

138971A1

SEAL KIT

KIT, transmission, includes Refs. 1, 2, 14, 15, 16, 17, and 29, plus an additional gasket not used in this application

1шт.
