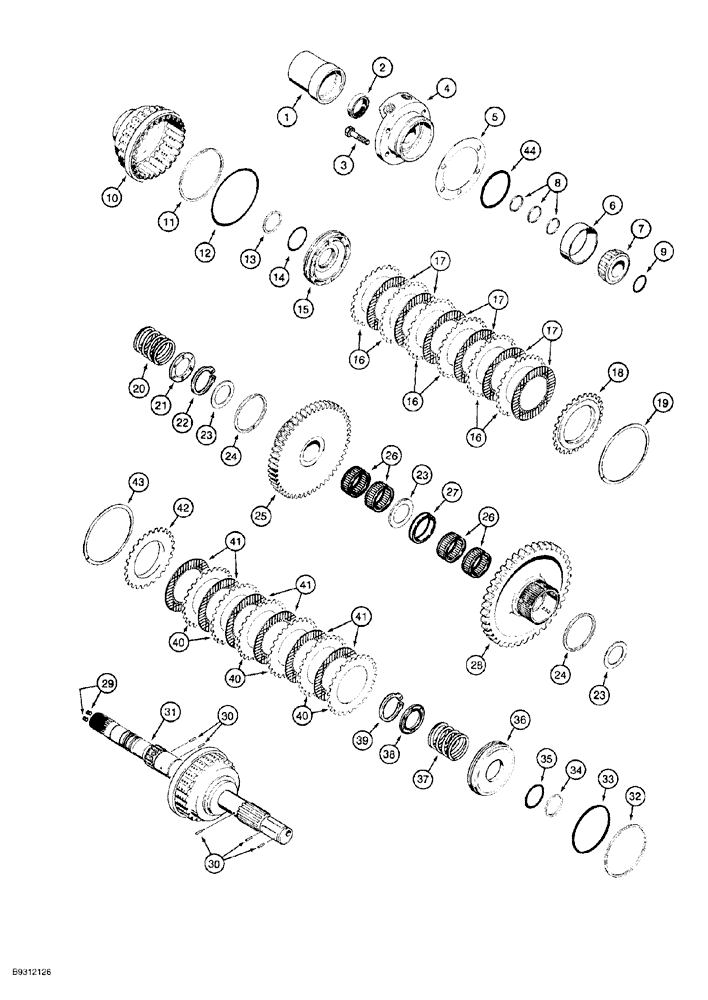

Запчасти Case 650G (6-12) - TRANSMISSION ASSEMBLY - MAIN SHAFT AND FORWARD-REVERSE CLUTCHES (06) - POWER TRAIN

130730A1

TRANSMISSION

ASSEMBLY, 1524, (60 inch) gauge, parts list Figs. 6-8 - 6-24 and 7-6

1шт.

1

G101696

PROTECTIVE COVER

mainshaft, rear

1шт.

2

A54107

OIL SEAL,38.1mm ID x 8mm Thk

oil, main shaft cover

1шт.

Part of seal kit 138971A1

1шт.

3

107-9620

LOCK BOLT,Locking, 3/8"-16 x 1 1/4", G8

5шт.

4

1997065C1

SEAL RETAINER

bearing, rear, main shaft

1шт.

5

1997066C1

SHIM

0.076 mm (.003 inch) thick

1шт.

Part of seal kit 138971A1

1шт.

5

1997067C1

SHIM

0.178 mm (.007 inch) thick

1шт.

Part of seal kit 138971A1

1шт.

5

1997068C1

SHIM

0.254 mm (.01 inch) thick

1шт.

Part of seal kit 138971A1

1шт.

6

G109317

BEARING CUP

tapered roller bearing, rear

1шт.

7

1342259C1

ROLLER BEARING,38.113 mm ID x 30.467 mm

tapered roller, main shaft rear

1шт.

8

1348976C1

SEAL

RING, main shaft

3шт.

Part of seal kit 138971A1

1шт.

9

238-5324

O-RING,0.21" Thk x 1.35" ID, -324, Cl 5, 75 Duro

1шт.

Part of seal kit 138971A1

1шт.

1997048C2

CLUTCH HOUSING

ASSEMBLY, forward, with hub

1шт.

10

1997003C2

HUB

HOUSING clutch

1шт.

11

A158051

SEAL,116.49mm ID x 123.91mm OD x 3.07mm Thk

piston, to clutch housing

1шт.

Part of seal kit 138971A1

1шт.

12

238-5156

O-RING,0.103" Thk x 4.237" ID, -156, Cl 5, 75 Duro

Piston

1шт.

Part of seal kit 138971A1

1шт.

13

A159295

SEAL,44.2mm ID x 50.7mm OD x 3.1mm Thk

piston, to main shaft

1шт.

Part of seal kit 138971A1

1шт.

14

238-5135

O-RING,0.103" Thk x 1.925" ID, -135, Cl 5, 75 Duro

2-1/16 ID x 3/32 inch wide, piston to main shaft, replaces A159291

1шт.

Part of seal kit 138971A1

1шт.

15

A159239

PISTON

forward clutch

1шт.

16

A175806

PLATE

clutch, separator

6шт.

17

A188946

DRIVE PLATE,81.9mm ID x 127mm OD x 2.6mm Thk

clutch, friction

6шт.

18

137720A1

PLATE

clutch, backing

1шт.

19

139987A1

SNAP RING,126.34mm ID x 142.4mm OD x 2.82mm Thk

RING retaining, internal, clutch backing plate

1шт.

20

A188080

SPRING

return, forward clutch return

1шт.

21

A188044

RETAINER

spring, clutch return

1шт.

22

100-16175

SNAP RING,#175, Ext

1шт.

23

A188192

WASHER, THRUST,45.05mm ID x 64.94mm OD x 2.05mm Thk

forward and reverse gears

3шт.

24

1995174C1

SEALING RING

SEALRING 87 x 90 x 3 mm, forward/reverse gears, if used

2шт.

Part of seal kit 138971A1

1шт.

24

1981351C1

SEALING RING

81 x 90 x 4 5 mm, forward/reverse gears, if used

2шт.

25

1997062C1

GEAR

forward clutch, 51 teeth, also order 1995174C1 seal

1шт.

26

A178460

NEEDLE BEARING,44.99mm ID x 50.02mm OD x 16.8mm W

needle

4шт.

27

A183452

THRUST BEARING,45.05mm ID x 66.85mm OD x 3.85mm W

thrust, between gears

1шт.

28

1997061C1

GEAR

reverse clutch, 56 teeth, also order 1995174C1 seal

1шт.

138971A1

SEAL KIT

KIT, transmission, plus an additional gasket not used in this application

1шт.

1997045C2

SHAFT

ASSEMBLY, main, with reverse clutch, Includes: Ref. 29 - 43

1шт.

29

83-3446

SET SCREW,Hex Soc, 7/16"-14 x 3/8"

set, hex socket headless, 7/16 NC x 3/8 inch, flat point, use with Loctite No. 271

2шт.

30

38-3605

PIN,3/32" x 5/16", Coiled

5шт.

31

1997001C2

HUB

SHAFT ASSEMBLY, main, with reverse clutch housing

1шт.

32

A158051

SEAL,116.49mm ID x 123.91mm OD x 3.07mm Thk

piston, to clutch housing

1шт.

Part of seal kit 138971A1

1шт.

33

238-5156

O-RING,0.103" Thk x 4.237" ID, -156, Cl 5, 75 Duro

Piston

1шт.

Part of seal kit 138971A1

1шт.

34

A159297

SEAL,47.2mm ID x 54.1mm OD x 3.1mm Thk

SEALRING piston, to main shaft

1шт.

Part of seal kit 138971A1

1шт.

35

238-5137

O-RING,0.103" Thk x 2.05" ID, -137, Cl 5, 75 Duro

Piston

1шт.

Part of seal kit 138971A1

1шт.

36

A159292

PISTON

clutch

1шт.

37

A188080

SPRING

return, piston

1шт.

38

A188044

RETAINER

spring

1шт.

39

100-16175

SNAP RING,#175, Ext

1шт.

40

A175806

PLATE

clutch, separator

6шт.

41

A188946

DRIVE PLATE,81.9mm ID x 127mm OD x 2.6mm Thk

clutch, friction

6шт.

42

137720A1

PLATE

clutch, backing

1шт.

43

139987A1

SNAP RING,126.34mm ID x 142.4mm OD x 2.82mm Thk

RING retaining, internal

1шт.

44

238-5154

O-RING,0.103" Thk x 3.737" ID, -154, Cl 5, 75 Duro

1шт.

B17500

LOCTITE

No. 271 , red, 6 ml tube

1шт.

138971A1

SEAL KIT

KIT, transmission, includes Refs.2, 5, 8, 9, 11, 12, 13, 14, 24, 32 - 35 on this Fig., plus an additional gasket not used in this application

1шт.
