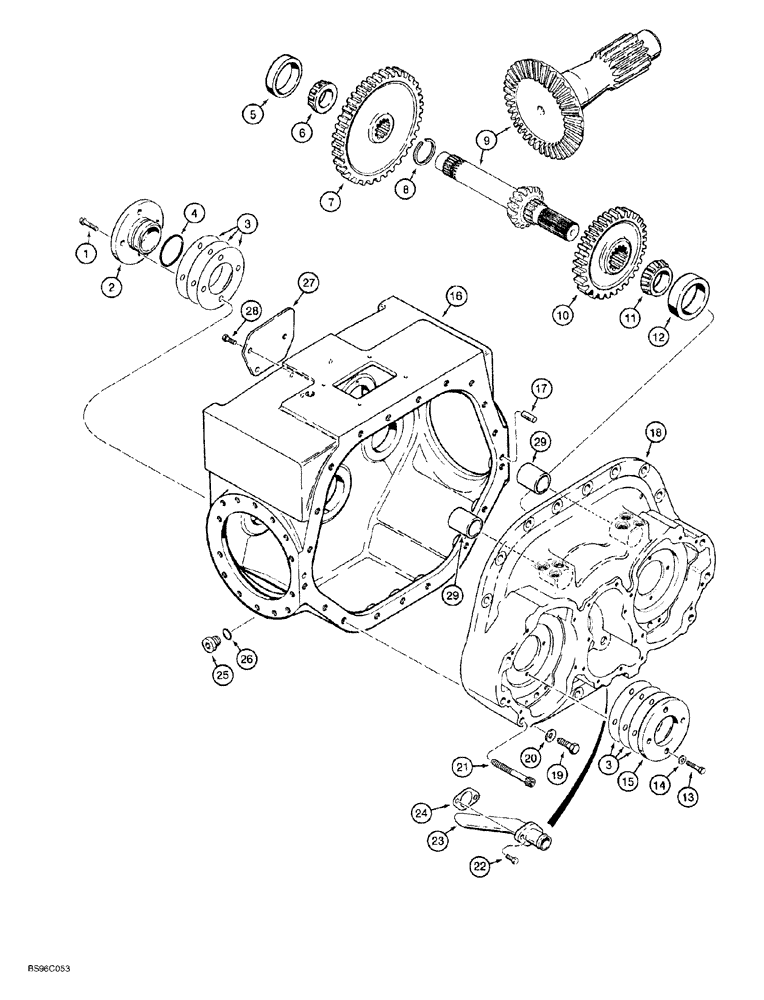

Запчасти Case 650G (6-08) - TRANSMISSION ASSEMBLY - HOUSING, BEVEL PINION SHAFT AND GEAR (06) - POWER TRAIN

1

107-9620

LOCK BOLT,Locking, 3/8"-16 x 1 1/4", G8

8шт.

2

G103644

COVER ASSY

shaft, bevel pinion

2шт.

3

G103645

SHIM,.003" Thk

(0.076 mm)

1шт.

Part of Sealant B17501

1шт.

3

G103647

SHIM,.010" Thk

(0.254 mm)

1шт.

Part of Sealant B17501

1шт.

3

1348980C1

BLOCK

0.504 mm (0.02 inch) thick

1шт.

Part of Sealant B17501

1шт.

4

238-5151

O-RING,0.103" Thk x 2.987" ID, -151, Cl 5, 75 Duro

2шт.

Part of Sealant B17501

1шт.

5

A50264

BEARING CUP,72mm OD x 14.2mm W

CUP tapered roller, rear

2шт.

6

A26719

ROLLER BEARING,38.1mm ID x 20.64mm W

BEARING tapered roller, rear

2шт.

7

G103778

GEAR

driven, low clutch, 51 teeth, rear

2шт.

8

A27085

RING

retaining, low clutch gear

2шт.

9

1348973C1

GEAR, BEVEL

BEVEL GEAR and shaft pinion, matched set

2шт.

10

1981357C1

PINION

GEAR driven, 43 teeth, high clutch, front

2шт.

11

A31264

ROLLER BEARING,1.625" ID x 1"

BEARING tapered roller, high clutch gear, front

2шт.

12

ST973

TAPERED BEARING,1.688" ID x 3.126" OD x 0.9515"

CUP tapered roller bearing, front

2шт.

13

107-9620

LOCK BOLT,Locking, 3/8"-16 x 1 1/4", G8

8шт.

14

396-21041

WASHER,10.31mm ID x 20.63mm OD x 2.26mm Thk

flat, 13/32 x 13/16 x 3/32 inch, hardened

8шт.

15

1348975C1

RETAINER

PLATE, LARGE RETAINER bearing, front

2шт.

16

1997054C1

HOUSING

transmission, see sealant below, replaces 130723A1

1шт.

17

37-1820

DOWEL,1/2" x 1 1/4"

PIN, 1/2 x 1-1/4 inch, hardened, front cover to housing

2шт.

18

1348959C2

COVER

transmission, front, see sealant below

1шт.

19

107-91028

LOCK BOLT,Locking, 5/8"-11 x 1 3/4", G8

13шт.

20

396-11066

WASHER,0.66" ID x 1.31" OD x 0.1" Thk

flat, 21/32 x 1-5/16 x 3/32 inch, hardened

13шт.

21

61-35064

HEX SOC SCREW,1/2"-13 x 4"

hex socket, 1/2 NC x 4 inch

6шт.

22

107-9616

LOCK BOLT,Locking, 3/8"-16 x 1", G8, Full Thd

2шт.

23

A50110

TUBE

suction

1шт.

24

1981223C1

GASKET

suction tube, Part of Sealant B17501

1шт.

Part of Sealant B17501

1шт.

25

9841223

PLUG,1-1/16" - 12 ORB

Incl. Ref. 26

1шт.

26

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Part of Sealant B17501

1шт.

Part of Sealant B17501

1шт.

27

1997121C1

LARGE PLATE

PLATE, LARGE modulator cover, if used

1шт.

28

107-9616

LOCK BOLT,Locking, 3/8"-16 x 1", G8, Full Thd

If used

3шт.

29

1348982C1

WEAR PLATE

SLEEVE, shaft, see note

2шт.

B17501

LOCTITE

SEALANT Gasket Maker No. 515, 6 ml tube

1шт.

Part of Sealant B17501

1шт.

B17555

LOCTITE

SEALANT Gasket Eliminator No. 515, 50 ml tube

1шт.

B17556

LOCTITE

SEALANT Gasket Eliminator No. 515, 300 ml tube

1шт.

138971A1

SEAL KIT

KIT, transmission, includes Refs. 3, 24, 26 and Sealant, P/N B17501plus an additional gasket not used in this application

1шт.
