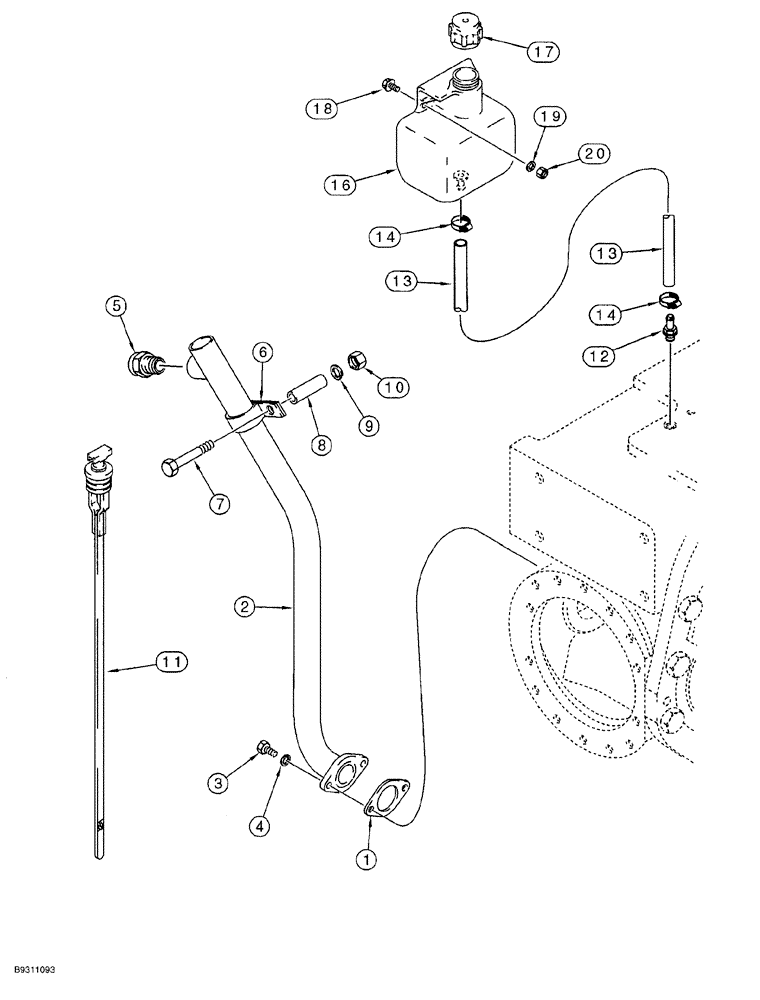

Запчасти Case 650G (6-06) - TRANSMISSION DIPSTICK AND FLUID RECOVERY BOTTLE (06) - POWER TRAIN

1

R47073

GASKET

dipstick tube

1шт.

Part of seal kit 138971A1

1шт.

2

R47760

TUBE,1.5" OD

dipstick

1шт.

3

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

4

492-11038

LOCK WASHER,3/8"

2шт.

5

D63543

BREATHER

dipstick tube

1шт.

6

R50045

CLAMP

dipstick tube

1шт.

7

413-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

hex, 3/8 NC x 3-1/2 inch

1шт.

8

L49541

SPACER

bolt

1шт.

9

492-11038

LOCK WASHER,3/8"

1шт.

10

425-106

NUT,3/8"-16, Cl 5

1шт.

11

R47798

DIPSTICK

transmission

1шт.

12

217-209

FITTING

ADAPTER straight, 1/4 stem x 3/8 inch PT

1шт.

13

R55963

HOSE, 711 mm (28 inch) long, cut from A21561 bulk, to recovery bottle

1шт.

14

214-1404

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

adj., 1/4 - 5/8 inch dia., replaces 214-274

2шт.

16

R50467

RESERVOIR

BOTTLE plastic, transmission fluid recovery

1шт.

17

R50468

CAP

CAP bottle, discard cork insert

1шт.

18

121-107

SERRATED BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

19

495-11034

WASHER,5/16", SAE

(flat, 11/32 x 11/16 x 1/16")

2шт.

20

425-105

NUT,5/16"-18, G5

2шт.

A21561X

HOSE,6.35mm ID x 7620mm L

bulk, 6 (1/4) x 13 (1/2) x 7620 mm (300 inch) long

1шт.

138971A1

SEAL KIT

KIT, transmission, includes Ref. 1, plus an additional gasket not used in this application

1шт.
