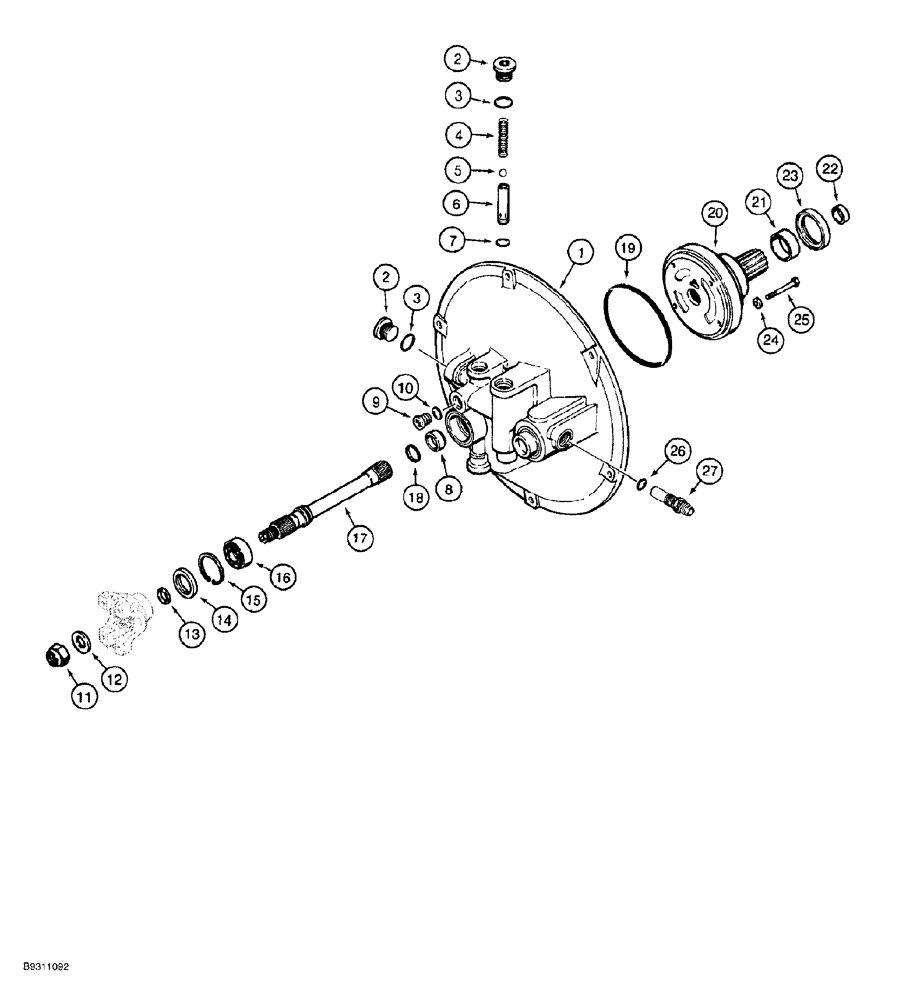

Запчасти Case 650G (6-04) - TORQUE CONVERTER HOUSING, PUMP, AND OUTPUT SHAFT (06) - POWER TRAIN

1348821C3

CONVERTER

HOUSING ASSEMBLY, torque converter, Includes: Ref. 1 - 27

1шт.

1

1348828C1

HOUSING

torque converter

1шт.

2

9841223

PLUG,1-1/16" - 12 ORB

Incl. Ref. 3

2шт.

3

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

4

A190345

SPRING

pump relief valve

1шт.

5

211-1016

BALL,12.7mm OD, Gr 24

Chrome alloy steel, grade 24

1шт.

6

A183336

VALVE

CARTRIDGE pump relief valve

1шт.

7

238-5017

O-RING,0.07" Thk x 0.676" ID, -17, Cl 5, 75 Duro

1шт.

8

A178745

SLEEVE

wear, housing

1шт.

9

86625138

PLUG,7/18" - 14

Includes Ref. 10

1шт.

10

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

11

832-46420

NUT,M20 x 2.5, Cl 8

1шт.

12

H224501

WASHER

flat, special, 7/8 inch, replaces H312652

1шт.

13

238-5212

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

Yoke sealing

1шт.

14

A175651

OIL SEAL,38.1mm ID x 52.44mm OD x 9.91mm Thk

oil, yoke

1шт.

15

100-21206

SNAP RING,2.062", Int, #206

1шт.

16

A31260

BALL BEARING,25 mm ID x 52 mm OD x 15 mm

ball

1шт.

17

A186527

SHAFT

output

1шт.

18

B506444

RING

oil seal, replaces A158354

1шт.

19

238-5255

O-RING,0.139" Thk x 5.609" ID, -255, Cl 5, 75 Duro

1шт.

119994A1

PUMP

ASSEMBLY converter, Includes: Ref. 20 - 22

1шт.

119994A1R

REMAN-HYD PUMP

650G (4/94-)

1шт.

119994A1C

CORE-HYDRAULIC PUMP

Return Number

1шт.

20

NSS

NOT SOLD SEPARAT

PUMP converter

1шт.

21

A178375

BUSHING,47.66mm ID x 52.46mm OD x 15mm L

pump housing

1шт.

22

A178367

BUSHING,25.07mm ID x 28.02mm OD x 13mm L

pump

1шт.

23

A186708

OIL SEAL,47.57mm ID x 68.25mm OD x 8.33mm Thk

pump housing

1шт.

24

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

25

826-8065

BOLT,Hex, M8 x 1.25 x 65mm, Cl 10.9

4шт.

26

238-6019

O-RING,0.07" Thk x 0.801" ID, -19, Cl 6, 90 Duro

1шт.

27

1348840C2

INSERT

filter bypass, use with Ref. 28 and 29

1шт.

28

345-150

LOCTITE

PRIMER, 764, 6 oz., not shown

1шт.

29

345-49

SEALANT

SEALANT, 242, blue, 1 ml tube, not shown

1шт.
