(6-02) - TORQUE CONVERTER, ADAPTER PLATE AND DRIVE SHAFT

Запчасти Case 650G (6-02) - TORQUE CONVERTER, ADAPTER PLATE AND DRIVE SHAFT (06) - POWER TRAIN

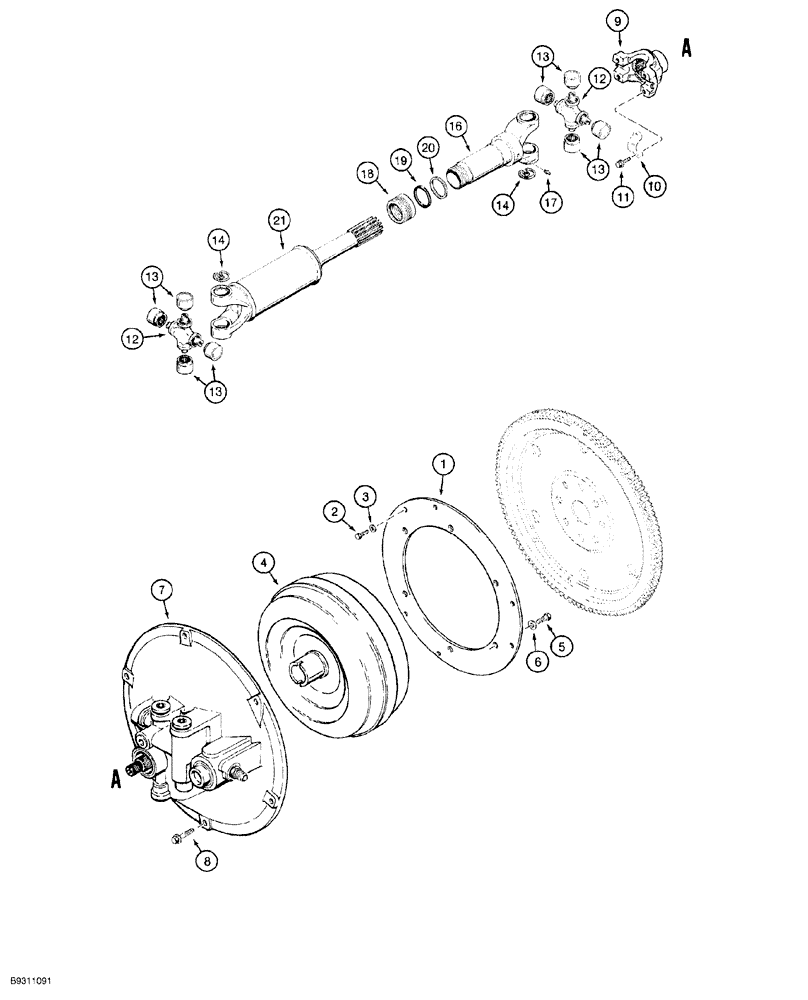

Схема запчастей Case 650G - (6-02) - TORQUE CONVERTER, ADAPTER PLATE AND DRIVE SHAFT (06) - POWER TRAIN
5
2
18
14
12
13
9
3
13
11
14
21
7
6
1
10
20
17
13
8
4
12
19
13
16
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

A178706

PLATE

adapter, torque converter to flywheel plate

1шт.

2

428-510

BOLT,Hex, 5/16" - 24 x 5/8", Gr 8

hex, 5/16 NF x 5/8 inch, grade 8, adapter plate to flywheel plate

6шт.

3

A15672

WASHER,8.74mm ID x 17.48mm OD x 1.52mm Thk

flat, hardened, special

6шт.

4

R57310

CONVERTER

torque, component parts not serviced separately

1шт.

4

R57310R

REMAN-TORQUE CONVERT

Reman for New PN R57310

1шт.

4

R57310C

CORE-TORQUE CONVERTR

CORE-TORQUE CONVERTER Return Number

1шт.

5

614-10016

BOLT,Hex, M10 x 1.5 x 16mm, Cl 8.8, Full Thd

Adapter Plate to Torque Converter

6шт.

6

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

6шт.

7

1348821C3

CONVERTER

HOUSING ASSEMBLY torque converter, parts list Fig. 6-4

1шт.

8

R54620

BOLT,Hex, Flange, M10 x 35mm CL 10.9

heavy hex flange, special, torque converter housing to flywheel housing

6шт.

9

1348826C1

CLEVIS

YOKE torque converter housing, to drive shaft

1шт.

10

90-6682T1

CLAMP

RETAINER drive shaft

4шт.

11

D137627

BOLT,Hex Flg, 5/16" - 24 x 19.05mm

special

8шт.

109491A1

STEERING SHAFT

ASSEMBLY drive, torque converter to transmission, Includes: Ref. 12 - 21

1шт.

134496A1

TOGGLE

KIT universal joint, Includes: Ref. 12 - 14

2шт.

12

NSS

NOT SOLD SEPARAT

JOINT universal, drive shaft

1шт.

13

NSS

NOT SOLD SEPARAT

BEARING universal joint

4шт.

14

R13992

RING, SNAP

RING SNAP retaining, universal joint

4шт.

15

219-10

LUBE NIPPLE,1/4" - 28 NPTF

FITTING grease, straight, 1/4-28 taper x 1 1/16 inch, not shown, included in 109491A1 shaft assembly, but not used on the 650G

1шт.

16

N14247

YOKE

UNIVERSAL JOINT YOKE TUBE, torque converter end, Includes: Ref. 17

1шт.

17

219-10

LUBE NIPPLE,1/4" - 28 NPTF

FITTING grease, straight, 1/4-28 taper x 1 1/16 inch

1шт.

18

S301050

PLUG

CAP dust

1шт.

19

154086H1

WASHER

rubber

1шт.

20

S301051

WASHER

steel

1шт.

21

S301049

YOKE

UNIVERSAL JOINT YOKE splined shaft, transmission end

1шт.
